Vocore2 Lite is a $4 Linux MIPS WiFi Module based on Mediatek MT7688AN SoC (Crowdfunding)

I’ve already written about Vocore v2 Crowdfunding campaign, where the second generation Vocore WiFi module supports audio, PoE, and ultimate dock, and price starting at $12. But there has been some development since the launch of the campaign, as the developer received request for a cheaper board, and after looking into it, has now added Vocore2 Lite WiFi module reward for only $4, or $7 once shipping included.

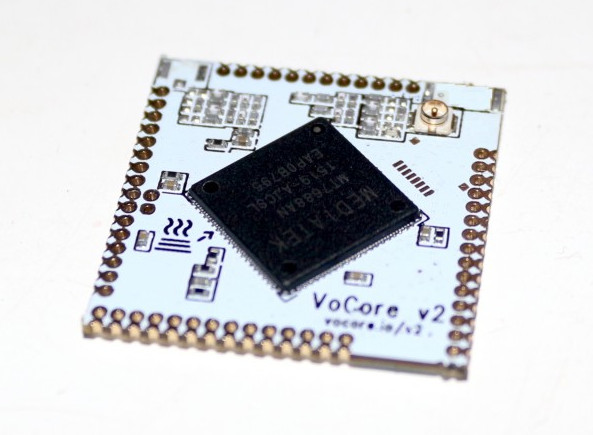

vocore2-liteHe obviously had to make some trade-offs to bring the cost down, but the Lite board impressively still keep many of the same features.

VoCore (2014) VoCore2 Lite (2016) VoCore2 (2016)
Price 19.99 USD 3.99 USD 11.99 USD
CPU RT5350, 360MHz MT7688AN MIPS24KEc
@ 580MHz
MT7628AN, 580MHz
Memory 32MB SDRAM 64MB DDR2 128MB DDR2
Storage 16MB NOR 8MB NOR 16MB NOR
Antenna Slot x1 x1 x2
On-Board ANTENNA ×
Wireless Speed ~75Mbps ~150Mbps ~300Mbps
Ethernet Port x5 x1 / x5 x1 / x5
Ethernet Speed 100Mbps 100Mbps 100Mbps
SPI Master
SPI Slave
SPI DMA ×
USB 2.0 Host
USB 2.0 OTG × ×
PCIe 1.1 × ×
SD Support SPI
GPIO > 30** >=40 >= 40
UART x2 x3 x3
PWM x2 x2
Power Consumption 138mA 74mA 74mA

Compared to Vocore2, Vocore2 Lite has a cheaper Mediatek MT7688N MIPS processor, which is already used in board such as Mediatek LinkIt 7688, Onion Omega2, and Widora-NEO, less memory and storage, WiFi is limited to 150 Mbps and an external antenna is required, and the PCIe 1.1 interface is gone. The dimensions appear to be the same, so the dock should be compatible too, provided PCIe is not needed. Software support will be the same with OpenWrt/LEDE Linux distribution.

If you are interested, you can pledge $7 for Vocore2 Lite on the Indiegogo page with delivery planned for January 2017. There aren’t any pledge combining Vocore2 Lite with a dock so far.

Thanks to Freire for the tip.
