Compulab CM-T335 CoM with TI Sitara AM335x Sells for $27

Compulab, an Israeli company specialized in embedded computing, has just released CM-T335, a family of low cost computer-on-module powered by Texas Instruments Sitara AM335x SoC, and sells for as low as $27 per unit for the AM3352 version (no GPU) for 1k orders. The module is available in commercial, extended and industrial grades, and features up to 512 MB RAM, and 1 GB Flash.

Compulab CM-T335
Compulab CM-T335

Specifications:

  • SoC –  Texas Instruments AM3352 CPU @ 275MHz, or AM3354 @ 600MHz + PowerVR SGX530 GPU
  • System Memory – 128MB to 512MB DDR3-1066, 16-bit bus width
  • Storage – 128MB to 1GB on-board NAND flash, 8bit, SLC
  • Display – 24-bit Parallel display interface – up to 1366 x 768
  • Touchscreen – 4/5/8-wire resistive touch-screen support, capacitive touch-screen support through SPI interface
  • Connectivity:
    • Ethernet – 1000Base-T Ethernet interface implemented with AM335x integrated MAC and the Atheros AR8033 RGMII PHY
    • WiFi – 802.11b/g/n implemented with TI WL1271 chipset
    • Bluetooth 4.0
  • USB – 1x OTG USB2.0 high-speed port, 4x USB2.0 host high-speed ports
  • Serial Ports – Up to 5 UART ports, TIA/EIA-232-F compatible, 3.3V interface, up to 5.0 Mbps
  • CAN bus – Up to 2 CAN bus interfaces, 3.3V levels
  • MMC / SDIO – Up to 2 MMC/SD/SDIO interfaces, support for HC MMC and SDHC up to 32GB
  • Audio – I2S interface, on-board audio codec with analog stereo output, stereo input and electret microphone support
  • Misc – Up to 2 I2C interfaces (up to 400Kbps), Up to 2 configurable SPI bus interfaces (Slave/Master modes), up to 70 multifunction signals that can be used as GPIOs, up to 8 ADC, and RTC with provided lithium battery
  • Power – 3.3V
  • Dimensions – 68 x 30 x 8 mm with 204-pin SO-DIMM edge connector
  • Temperature range – Commercial (0° to 70° C), Extended (-20° to 70° C), or Industrial (-40° to 85° C)
  • Relative humidity – 10% to 90% (operation)

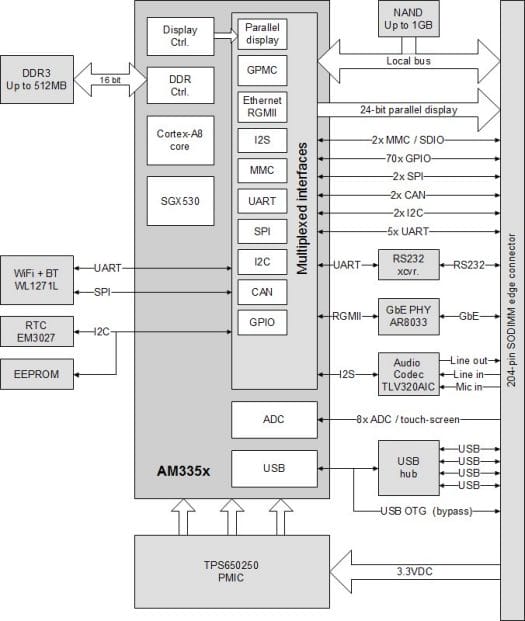

Compulab CM-T335 Block Diagram
Compulab CM-T335 Block Diagram

The company provides support for Linux, Android ICS and Windows Embedded Compact 7. SBC-T335 Evaluation Kit is available for development, and includes CM-T335-D256-C600G-N1G-E-A-U4-WB CoM (That’s AM3354 + 256MB Flash, 1 GB Flash, etc…), SB-T335 carrier board, an LCD panel with capacitive touchscreen, a WiFi antenna, lots of cables, and a 12V power supply. Technical support is available for 12 months with this kit, and there’s a 45-day evaluation period where you can return the kit if it does not fit your needs.

$27 (in 1k order) will get you a module with TI AM3352, 128 MB RAM, 128 MB flash, and a USB OTG. As I discovered with Compulab AMD module, the company publishes the options price list publicly, so you get get a good estimation of the price for the options you need. An industrial grade module with all options will cost $123. Further information is available on Compulab CM-335 page.

Via LinuxGizmos
