Mele M9 Android Set-top Box Powered by AllWinner A31

Orange Pi Development Boards

After Mele A1000G Quad, Mele has just launched another model called M9, still based on AllWinner A31 quad core processor, with an external Wi-Fi antenna, but no SATA support.

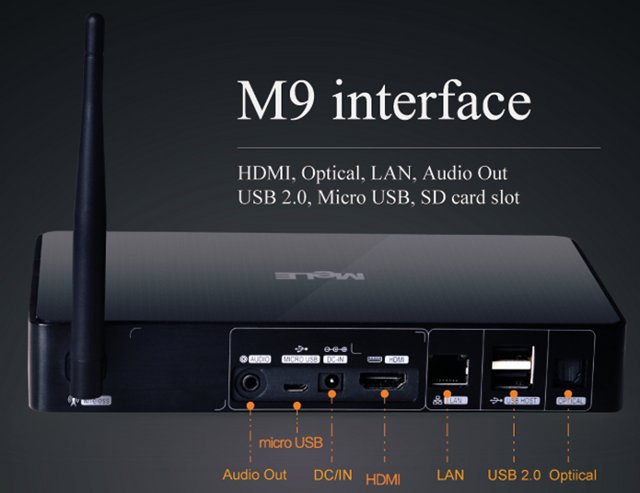

Mele_M9

Mele M9 specifications:

  • SoC – AllWinner A31 quad core Cortex A7 @ 1.5GHz + PowerVR SGX544MP2 GPU
  • System Memory – 2GB DDR3 RAM
  • Storage
    • 16GB NAND Flash
    • SD card slot
  • Video Output – HDMI 1.4
  • Audio I/O – HDMI + S/PDIF optical out + Audio jack output
  • Video Playback – Up to 2160p @ 60 Mbps
  • USB – 3x USB 2.0 host ports, 1x mini USB 2.0 OTG port
  • Connectivity
    • Ethernet – 10/100Mbps
    • Wi-Fi – 802.11 b/g/n
  • Power Supply – 5V/2A

The device runs Android 4.1 with a customized “Windows 8” user interface, and comes with a 5V/2A power adapter, an IR remote control (show below), an HDMI cable, a user’s manual, and a warranty card.

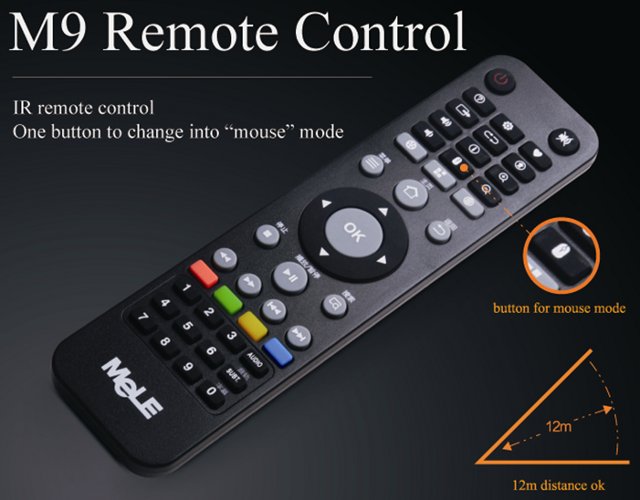

Mele_M9_Remote
The remote above as a mouse button, to allow you to move the cursor with the arrow keys. Personally, I can’t use this feature on an IR remote without going insane (I tried with 2 different devices), so you may really to get an Air Mouse as well, if you plan to use Android.

Mele sells it on their Aliexpress Store for a whopping $188.88 including shipping, and other Aliexpress sellers seem to offer the set-top box for similar or even higher prices. Considering you can get the Mele A1000G Quad for less than $140 on their store that seems very steep price for just an external antenna, and a RK3188 based set-top box with similar features is available for less than $100. So I went to check on Taobao, and the price is much different:

  • 699 RMB (~ $114) for the “Standard version” as above.
  • 899 RMB (~ $147) for the “Extreme version” including Mele F10 Pro Air mouse.

It’s normal the price is cheaper in China, since shipping overseas adds to cost, but the price should just be $15 to $20 more expensive, not over $70. I’ve been told the Chinese and International versions have completely different firmware and APK, but I find it hard to justify the price difference, and there must be some other reasons Chinese readers might find out. There’s also another seller that sells a Mele STB, with similar specs, for $132.50 including shipping, which strangely features VGA and composite outputs. The seller confirmed it was not the Mele M9, and just told me it was model A7 (which does not exist)….

Even though RK3188 have a better overall performance, AllWinner A31 is better than Rockchip RK3188 when it comes to gaming, and supports 4K2K video playback (currently) downscaled to 720p or 1080p depending on your output resolution, as there aren’t any A31 based devices with 2160p HDMI output yet according to AllWinner. Mele STBs also do not come with built-in Bluetooth, which may be problematic if you want to use a Bluetooth game controller to play games. Some people have reported Mele A1000G Quad firmware is unstable, and I had problems with CS868 mini PC firmware, so firmware for devices based on AllWinner A31 may not be very stable just yet.

Support CNX Software - Donate via PayPal or become a Patron on Patreon

8
Leave a Reply

avatar
8 Comment threads
0 Thread replies
1 Followers

Most reacted comment
Hottest comment thread
6 Comment authors
ALEXBrightSign 4K Digital Signage Player Delivers 4K HEVC Video Playback at 60 fps via HDMI 2.0LasAlfredocnxsoft Recent comment authors
  Subscribe
newest oldest most voted
Notify of
onebir
Guest
onebir

Why would anyone prefer this to the Mele A1000G Quad (which has a SATA interface, but only 8GB flash but otherwise seems identical)?

trackback

[…] un Mele A1000G da questo nuovo Mele M9 sono difficili da capire. A maggior ragione, poi, quando si scopre che sul mercato cinese (su Taobao) lo stesso Mini PC è in vendita per 114 dollari, un prezzo molto […]

Mohamed
Guest
Mohamed

does it has an on-board battery for RTC(real time clocking) so the date and time does not change when you power goes off and on again.
I was searching for STB that has this feather for a long time but with no luck, could you help me?

Alfredo
Guest
Alfredo

ATTENTION
– Not have bluetooth in itself
– Not support any bluetooth gadgets
– Not support any USB generic gamepad
– Not support most of the best games (Shadowgun, Tintin, Wild blood…)
– Not compatible with Wuaki.tv

Las
Guest
Las

@Alfredo
I am sorry to tell you but yes it does supports usb gamepads and personally i have for my kids Shadowgun installed and works flawless with ps3 usb gamepad!Don’t spread nonsense unless you tried every possible options to make things work and with a little research you can find easy and good solutions ,don’t expect all the features working on the box right out of the box because it won’t,you have to deal with it on your own!Good for movies if you use xbmc and games like Nova3/Modern Combat4 /Shadowgun etc…..I think this is the best android tv box yet on the market together with Mele a1000g ,sure it is bugs in the rom ,not one android tv box is is perfect !

trackback

[…] market were media players capable of decoding 4K videos put outputting to 1080p60 maximum such as Mele M9, then we’ve been shown some media players such as Geniatech ATV1800, decoding 4K video using […]

ALEX
Guest
ALEX

hi. can i make copy paste on melle m9?
