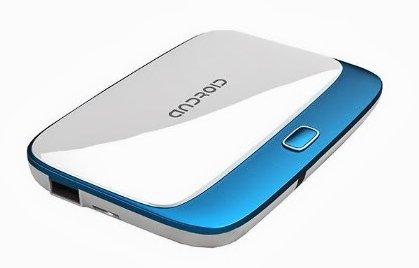

I’ve now got several RK3188 mini PCs, but I hadn’t found full sized set-top boxes based on Rockchip RK3188 quad core processor with Ethernet, and multiple USB ports. Thanks to a post in mini PC G+ community, we have now a nice looking quad core STB called K-R42-1 by Kingnovel, which might be the manufacturer design house behind the device, and sold for $96 including shipping in one Aliexpress store under the model name MK888.
K-R42-1 / MK888 Specifications:
- SoC – Rockchip RK3188 quad Cortex-A9 CPU @ 1.6 GHz + Mali-400 MP4 GPU @ 500 MHz
- System Memory – 2GB DDR3 SDRAM
- Storage – 8GB Nand Flash + MicroSD slot (Up to 32GB)
- Connectivity
- 10/100M Ethernet
- WiFi 802.11 b/g/n with external antenna
- Bluetooth EDR 2.0
- Video Output – HDMI 1.3 + AV output jack
- Audio Output – HDMI + S/PDIF
- Video Codecs (Decode) – MPEG-1, MPEG-2, MPEG-4, H.263, H.264 (up to 60 Mbps), AVS, VC-1, RV, VP6/VP8, Sorenson Spark, MVC @ 1080p60
- Video Codecs (Encode) – H.264, VP8, and MVC @ 1080p
- Audio Codecs – MP1,MP2,MP3,WMA,WAV,OGG,OGA,APE,FLAC,AAC,M4A,3GPP…etc
- USB – 2x USB Host
- Misc – IR port
- Power – 5V/2A
- Dimensions – 142x95x21 mm

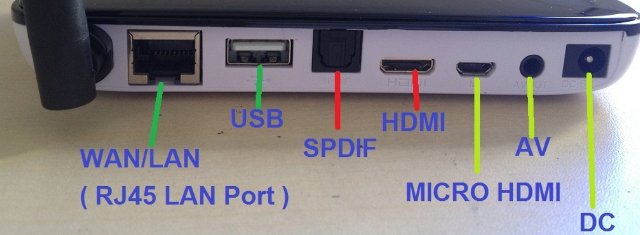

The device is said to come with a power adapter, an HDMI Cable, and a user’s manual. In the picture below from Aliexpress, there’s one additional port referred to as “micro HDMI”, just next to the full HDMI port, but I’m not convinced… It might be a micro USB port instead.
Finally, MK888 is currently running Android 4.1.1, but will be upgrade to Android 4.2.2. At $96, it seems quite cheap compared to RK3188 based mini PCs, many of which cost nearly the same, but with less features.
Jean-Luc started CNX Software in 2010 as a part-time endeavor, before quitting his job as a software engineering manager, and starting to write daily news, and reviews full time later in 2011.
Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress
Nice device with all the usually requested features and others like IR and the price seems decent.
Can’t wait for you to do a review. The picture of the back of the device seems to indicate an external antenna, perhaps the wifi on this thing will be good too.
If so, ladies and germs, we have a potential winner.
It would be interesting to test the data transfer speed via Ethernet port.
This one with Linux would be a dream
It’s a pity it is not gigabit ethernet (as in some i.mx6 based boards which also have SATA)
Anywyas seems to be great product, for me much better than “tv sticks”. I’m wondering why would you need micro-HDMI? Would it be possible to connect 2 displays? Anyways I doubt it can drive double resolution, so another USB port would be more useful.
@renw0rp
Probably it’s just micro-USB next to HDMI, not “micro-HDMI”
i hope :
1 that micro-usb(not micro hdmi) and OTG, i need usb-b port (msc).
2 a good Wifi: realtek or ralink have open drivers w/master mode.
3 4.2 upgrade for miracast / miracast.
yes w/av out, xbmc its a winner… but anyone know Kingnovel?, they ‘ve other products?, they support upgrades w/own team?, are open source friendly?… almost like rikomagic?
very interesant, is posible wait for a review here CNX?
@klein
I’ll try to get one, but normally I try to avoid spending money on hardware I don’t need, so I rely on Chinese stores to send me a sample.
Kingnovel is not a reseller, and they’re probably not a manufacturer either. They mention they have 10 hardware engineers, so I guess they may design the hardware, outsource software and manufacturing to third parties, and sell in bulk to resellers. I’m not sure, just my guess based on their website.
also thats weird not only the micro hdmi in picture, also say hdmi 1.3 and follow the g+ link found decode h264 at 60mbps, the last 2 not correspond to rk3188(hdmi 1.4 , h264@100mbps is reported in a soc comparison review) , so many errors, is not good signal for a unknown kingsnovel, how is the qa+qc w/errors in Pcb?
@Jean-Luc Aufranc (CNXSoft)
thanks in advance!
if they’re clever send you a sample. if they’re new must known that a reviews yours is very important for trust.
Cool: it has the looks of a arty netbook or router…
Way to go with this design! This is exactly what I am looking for – RJ45 connector – SPDIF interface. The question is, can it handle 1080p files and output it in true 1080p @60Hz without a stutter. If that can be confirmed, my order will be placed. Looking forward to the review!
@renw0rp
Yes, they claim dual screen is supported. That’s why 2 HDMI ports are present.
This mark on the ports is wrong, this tv box only have one hdmi port, the one near hdmi port should be the OTG port, not micro hdmi port.
the picture in aliexpress now say “OTG”, so it was a mistake (micro hdmi).
I’m looking for a review, its cheap and have all my needs, but i dont known Kingnovel… so waiting 2 see if the 4.2 firmware is ok and have miracast, also if the wifi work ok (fast and reliable).
Ported linux in this unknown device is beyond my dreams…
I（ Geekbuying) is working on a review for this device, we just get the stock rom,and made them change the internal storage ( the stock rom is coming only 540MB left in internal storage, it is no good, i have made them change to 1.97G).
@Eric
Thank you, looking forward to the review. Could you also include in your review if the device can passthrough dolby digital?
@Eric
thanks, i’m waiting for a review also, because i don’t known Kingnovel, please can you say what is the wifi chip? reach 150mbps stable? throughput avg/max is ok? hdmi is 1.4 as all rk3188, so it support 3d tv?
When GB begin to sell it and how much?
sorry for all questions, i’m waiting for long, but also consider other stb or a mk802iv+mini hdmi2av…
thanks everyone for your time.
@klein
I’ve also been told I would get one, but this is never sure 100%. If I do get one I’ll post a review.
Price has come down a little as well, and it can be found for $90 or just below now.
If the firmware proves to be good, I think we may have a winner here.
Some more picture, screenshot, and benchmarks http://blog.geekbuying.com/index.php/2013/06/24/k-r42first-rk3188-quad-core-tv-box-review/
GeekBuying also tested some apps, connected USB drive, webcam and all work, The only downside is Netflix.
Something very similar is on dealextreme for $96 including a remote control – http://dx.com/p/cheerlink-quad-core-android-4-2-hd-1080p-network-media-player-w-1gb-ram-8gb-rom-black-white-224582
Just got it and …
CONS – No 1080p rom , no Bluetooth , and no luck with XBMC 1080p movies even despite the so much more powerful new 28nm generation Rockchip RK3188 which supposed to give away less heat. I don’t see the point of watching 1080p movies on 720p max accepted resolution.
It must be popular, as there’s another “copy” with Jesurun DX05 for $96 including an IR remote – http://dx.com/p/jesurun-dx05-quad-core-android-4-2-2-google-tv-player-w-2gb-ram-8gb-rom-black-silver-eu-plug-226796
@Anton
I think you need to use XBMC Custom XAF (using an external player) with RK3188, because AFAIK hardware video decoding has not been implemented yet.
I’ve heard 1080p ROM may make RK3188 mini PCs overheat, but maybe for this larger device it would not be a problem if they could provide one.
Is it possible to add a bluetooth dongle? Is there a menu for Bluetooth in the settings?
@Jean-Luc Aufranc (CNXSoft) Now $86 on GeekBuying
http://www.geekbuying.com/item/K-R42-Quad-Core-Google-Android-4-2-2-RK3188-28nm-Cortex-A9-Mini-TV-BOX-HDMI-HDD-Player-2G-8G-External-Wifi-Antenna-Ethernet-Port-Blue-316909.html?utm_source=inpromo&utm_medium=hbigbanner&utm_campaign=K_R420627
@mj
Yes, price has come down since I wrote the article, and you also find it around $82 in Aliexpress. [Edit: Sorry, I’m wrong I’ve just noticed $82 is for the 1GB RAM version – http://www.aliexpress.com/item/2013-Newest-Arrival-CS918-Mini-pc-TV-box-MK888-Quad-core-RK3188-OS-4-2-2G/1037574570.html)
geekbuying blog says no bluetooth onboard…
looking at pcb it seems the same device as the cs918
@bl
It turns out there are two versions: one with Bluetooth, one without.
I really like this for use as a music server (i.e. external HDD hooked up to these tiny devices and then these devices hooked up to a small monitor and good speaker system).
I wonder if they would work like this,
AND
– if they can be left on for months together (without getting overheated or melted)
– If they can be controlled from the android phones.
@Noel In theory yes. In practice, you have to see if the firmware supports it. If the device gets popular, firmware is likely to be upgraded regularly, so I’m pretty confident USB HDD will be supported. Provided there’s sufficient ventilation overheating should not be an issue. I’ve personally used many devices like this, and never experienced overheating issues. Others have however. But as long as you don’t block ventilation holes, or put the device in a very hot room, it should not be an issue. Rockchip provides an app to control such devices with an Android phone. Alternatively, you can… Read more »
I just got this! And I must say it blows the mk802III out of the water! The external antenna is strong enough to pick up my neighbors WiFi, the mk802III would barely detect mine…and it was in the same room! The ONLY down fall to this, as with every other android on TV thing, is the fact that there’s yet to be one great answer for how to interact with them. The best for normal use is though your phone or tablet but good luck trying to grab and move something around the home screen with that ;-). Over all… Read more »
Now on Aliexpress under code like CS918 or EKB111 for around $85 shipped. 2GB RAM.
Bluetooth version around $93 by kimdecent http://www.aliexpress.com/item/Free-shipping-cs918-android-tv-box-RK3188-quad-core-2gb-ram-8gb-rom-1920x1080P-bluethooth/1084272914.html
Find a serious defect in my Kingnovel K-R42-1 (MK888)
When it connected to a TV video image permanently lost every 5-10 seconds. I tried to connect it via other HDMI cable and other power supply, but the problem remained – image losts.
Can any help me with it?
Some mildly hopeful news for Picuntu on this:
http://www.freaktab.com/showthread.php?10309-Picuntu-on-T-R42-support-for-LAN-WiFi
EKB311B around $72:
http://www.aliexpress.com/item/2GB-Ram-8GB-Rom-Quad-Core-RK3188-Cortex-A9-MK888B-Bluetooth-Full-HD-Multi-Media-Player/1612625865.html
Beyond XBMC ( http://www.freaktab.com/showthread.php?9603-Beyond-XBMC ) has support for RK3188 and 1080p hardware accelerated playback (supposedly – I’m waiting on my $40 CS918 to be delivered, so I cannot test at the moment)
Hi Gizmomelb, where can I pick one up for only $40?
Thanks.
@Joe Bucks
Yeah $40 is a bargain! ~$70 seems more usual.
I did find this one one E-bay however,but is was from a pretty new seller,and he never answered my
questions,so I did not buy one.
http://www.ebay.com/itm/Smart-TV-BOX-mini-PC-CS918-Quad-Core-Android-4-2-Bluetooth-Wi-Fi-1080P-Antenna-/251524026516?pt=LH_DefaultDomain_0&hash=item3a90001094
Seemingly he sold about 55 pieces,so I will be following his feedback profile to see if he really delivered
the goods as advertised.
@Joe Bucks
‘Listing has ended’ 🙁 Maybe a lot from a liquidation or something…
Cheap around 57$ CS918 box:
http://www.aliexpress.com/item/New-CS918-with-Bluetooth-WIFI-RK3188-Quad-Core-1-65Ghz-Android-4-1-Mini-PC-2GB/1871639691.html
http://www.aliexpress.com/item/Q7-Android-tv-box-Quad-Core-CS918-T-R42-K-R42-MK888-MK888B-MK918-Android-4/1871712463.html
CS918 $54.45 for 6 days:
http://www.aliexpress.com/item/WHOSA-CS918-HDMI-1-6GHz-WiFi-1080P-2GB-8GB-Quad-Core-Android-4-2-TV-Box/1916245460.html
