Leadcore Introduces LC1810, LC1811, LC1813, and LC1913 SoCs for Smartphones and Tablets

Mediatek, Rockchip, AllWinner among others are now well-known Chinese ARM SoC manufacturers for tablets, smartphones and set-top boxes. However, you may never have head about Leadcore Technology, a company based in Shanghai with over 1,000 employees, and a subsidiary of Datang Telecom Technology & Industry Group (Another company I had never heard of). The company has “recently” announced two dual core Cortex A9 SoCs for smartphones: LC1810 and lc1811, and two quad core Cortex A7 SoC for tablets: LC1813 and LC1913.

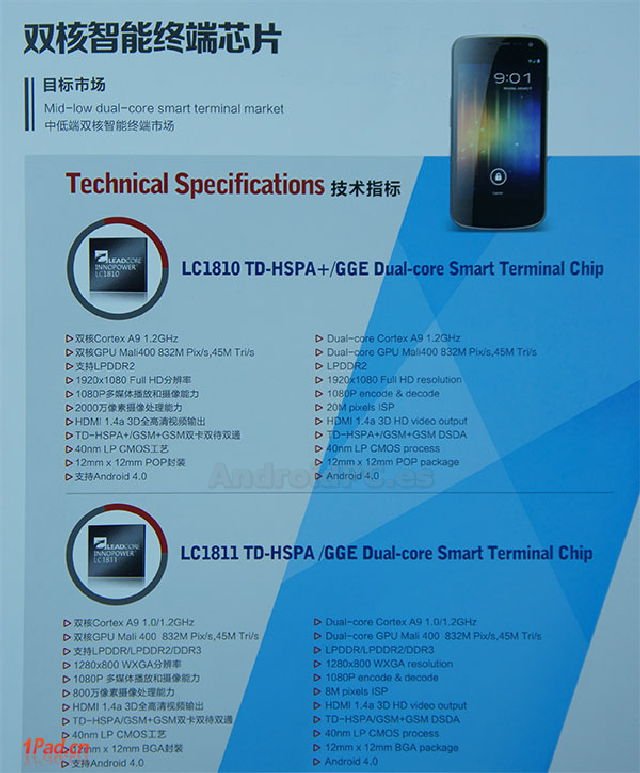

Leadcore_LC1810_LC1811

LC1810 and LC1811 come with the following features:

  • Dual-core Cortex A9 up to 1.2 GHz
  • MALI-400 MP2 GPU
  • LPDDR2 (both) and DDR3/LPDDR for LC1811
  • Maximum screen resolution:
    • LC1810 – 1080p
    • LC1811 – 1280×800 (WXGA)
  • 1080p video encode and decode
  • Camera:
    • LC1810 – Up to 20MP
    • LC1811 – Up to 8MP
  • Video Out – HDMI 1.4a, 3D HD
  • Network – GSM + GSM DSDA (Both), TD-HSPA+ (LC1810), and TD-HSPA (LC1811)
  • 40nm LP CMOS process
  • 12mm x 12mm BGA package

Strangely both SoCs are said to only support Android 4.0 (ICS).

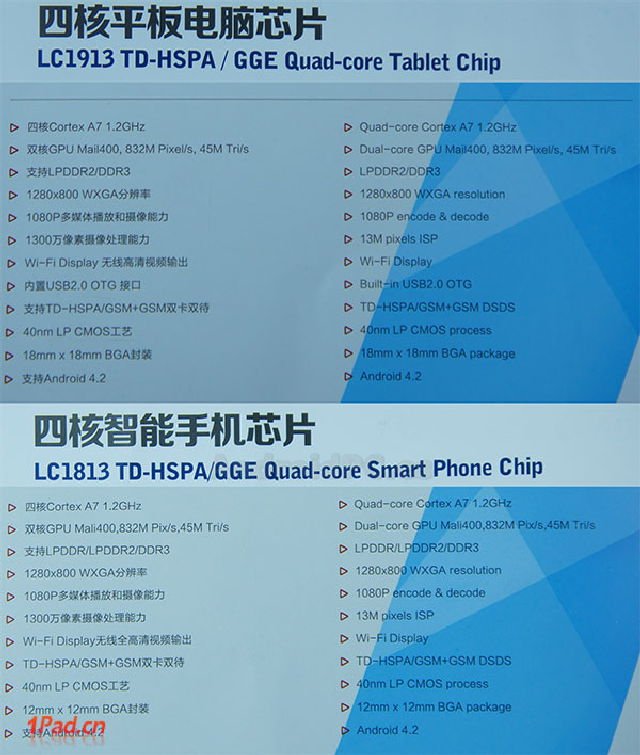

Leadcore_LC1913_LC1813

LC1913 and LC11813 tablet SoCs have the following features:

  • Quad-core Cortex A7 up to 1.2 GHz
  • MALI-400 MP2 GPU
  • LPDDR2/DDR3 (both) and LPDDR for LC1813
  • Maximum screen resolution – 1280×800 (WXGA)
  • 1080p video encode and decode
  • Camera – Up to 13MP
  • Wi-Fi Display support
  • Built-in USB 2.0 OTG (LC1913 only)
  • Network – TD-HSPA, GSM + GSM DSDS
  • 40nm LP CMOS process
  • Package:
    • LC1813 – 12mm x 12mm BGA package
    • LC1913 – 18mm x 18mm BGA package

Both processors support Android 4.2. The only difference between LC1813 and LC1913 appears to be USB support, which led the company to use a larger package.

You can get more information about Leadcore INNOPOWER LC1810 and LC1811 SoC on the company’s product page (in Chinese). But I can’t find anything about LC1913 or LC1813 on their site.

Via AndroidPC.es
