Rockchip RK3126, RK3128, and “MayBach” Octo-core Cortex A53 Processor Could Be Found in Tablets in Q4 2014

Orange Pi Development Boards

T-chip, the company behind Firefly-RK3288 development board and HPH NT-V6 media player, has sent me their latest company brochure this morning. The brochure mentions the company history since 2005, various tablets solutions they have done over the year, and new and upcoming products. One of the slides particularly caught my attention.

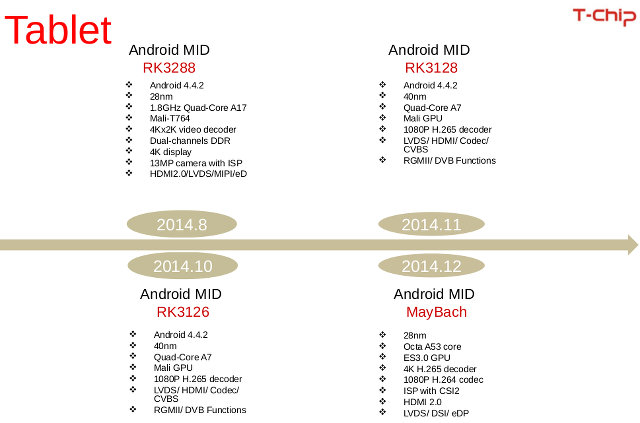

Rockchip_RK3128_RK3126_MayBachRK3288 is pretty popular right now, but I had never heard about RK3126 and RK3128 SoC with four ARM Cortex A7 core with a Mali GPU supporting HEVC decoding up to 1080p resolution. Both processors are manufactured using 40nm technology, so I’d guess these target ultra low cost tablets, which should become available in October and November 2014.

Even more interesting is the mention of “MayBach” Tablets. I’ve been told MayBach, which could just be a temporary codename, is an upcoming Rockchip SoC. Based on the information in the slide, it should be an Octa-core Cortex A53 processor with an unnamed GPU supporting OpenGL ES 3.0. Supported features include 4K/H.265 video decoding, HDMI 2.0 / LVDS / DSI / eDP video outputs, and an ISP with CSI2 camera interface(s).

I could not find more information about a Rockchip Cortex A53 on the web, except that Rockchip licensed Cortex A50 cores in November 2013.

Separately, I’ve also asked T-Chip about Firefly-RK3288 availability, and that’s what I’ve been told:

Firefly demoboard won’t purchase online on foreign website and the time when it will purchase online inland is not determined.

Disappointing. This conflicts with new that the board would be listed on Taobao next week. so if you want the board, you may have to order by email ($129 + shipping), as mentioned by Charbax, or simply wait for Radxa Rock 2 instead.
