Unboxing of Nagrace HPH NT-V6 Android TV Box with HDMI In, Rockchip RK3288 Processor

Thanks to Nagrace Times Technology, I’ve got a new Rockchip RK3288 Android mini PC to play with. HPH NT-V6 model is higher end compared to the other ones I’ve received including Uyesee G1H, Kingnovel R6 and Orion R28 Meta, because it comes with 32GB eMMC, HDMI In, and a AP6335 Wi-Fi module providing 802.11ac Wi-Fi connectivity. I’ll start by listing the device specifications, take some pictures of the device and the board, and I’ll write a full review probably next week as I have some other hardware to test first.

Nagrace NT-V6 specifications

The company provides various memory and storage options for this product, and if Linux based operating systems such as Ubuntu or Chrome OS end up being properly supported on Rockchip RK3288, Nagrace NT-V6 could end up bring a very nice mini PC:

  • SoC –  Rockchip RK3288 quad core ARM Cortex A12/A17 processor @ 1.8 GHz with ARM Mali-T764 quad-core 3D GPU with support for OpenGL ES 1.1/2.0/3.0, OpenVG 1.1, OpenCL 1.1, RenderScript, and DirectX11
  • System Memory – 2GB DDR3 (Optional 4GB DDR3)
  • Storage – 8GB flash (16, 32, and 64GB optional) + micro SD slot
  • Video Output / Input
    • HDMI 2.0 output up to 4K @ 60fps
    • AV output (3.5 mm jack)
    • HDMI 1.4 Input up to 1080p60
  • Audio Output – HDMI,  AV, and optical S/PDIF
  • Connectivity – Gigabit Ethernet, dual band 802.11 b/g/n and 802.11ac Wi-Fi with external antenna, and Bluetooth 4.0 (AP6335 module)
  • USB – 2x USB 2.0 host ports, 1x Micro USB OTG
  • Camera – 5M auto focus (optional, not included in sample I’ve received)
  • Misc – Power button and LED, IR receiver, recovery button
  • Power Supply – 5V/3A
  • Dimensions –  115 x 115 x 23 mm (excluding Wi-Fi antenna)
  • Weight – 250 grams

HPH NT-V6 runs Android 4.4, like most of the the boxes currently on the market.

NT-V6 Unboxing Pictures

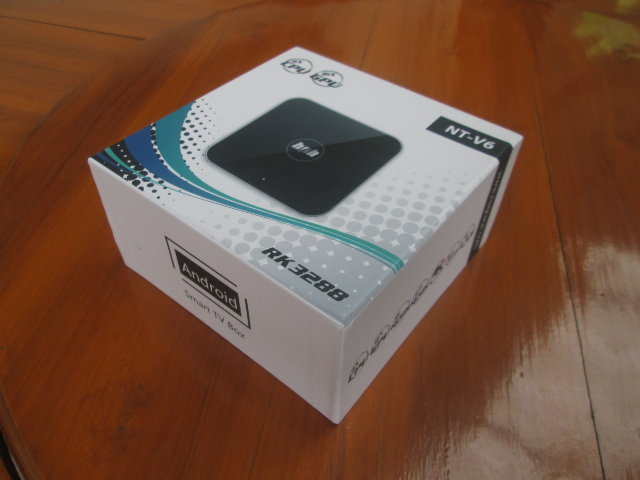

The company sent me the box via DHL, and the media player can be found in the package below. The back of the package lists options for 2 or 4 GB RAM, and 8, 16, 32 or 64 GB flash, so there will most certainly be an option for 4GB RAM and 64GB (eMMC) flash.
Nagrace_NT-V6_Package

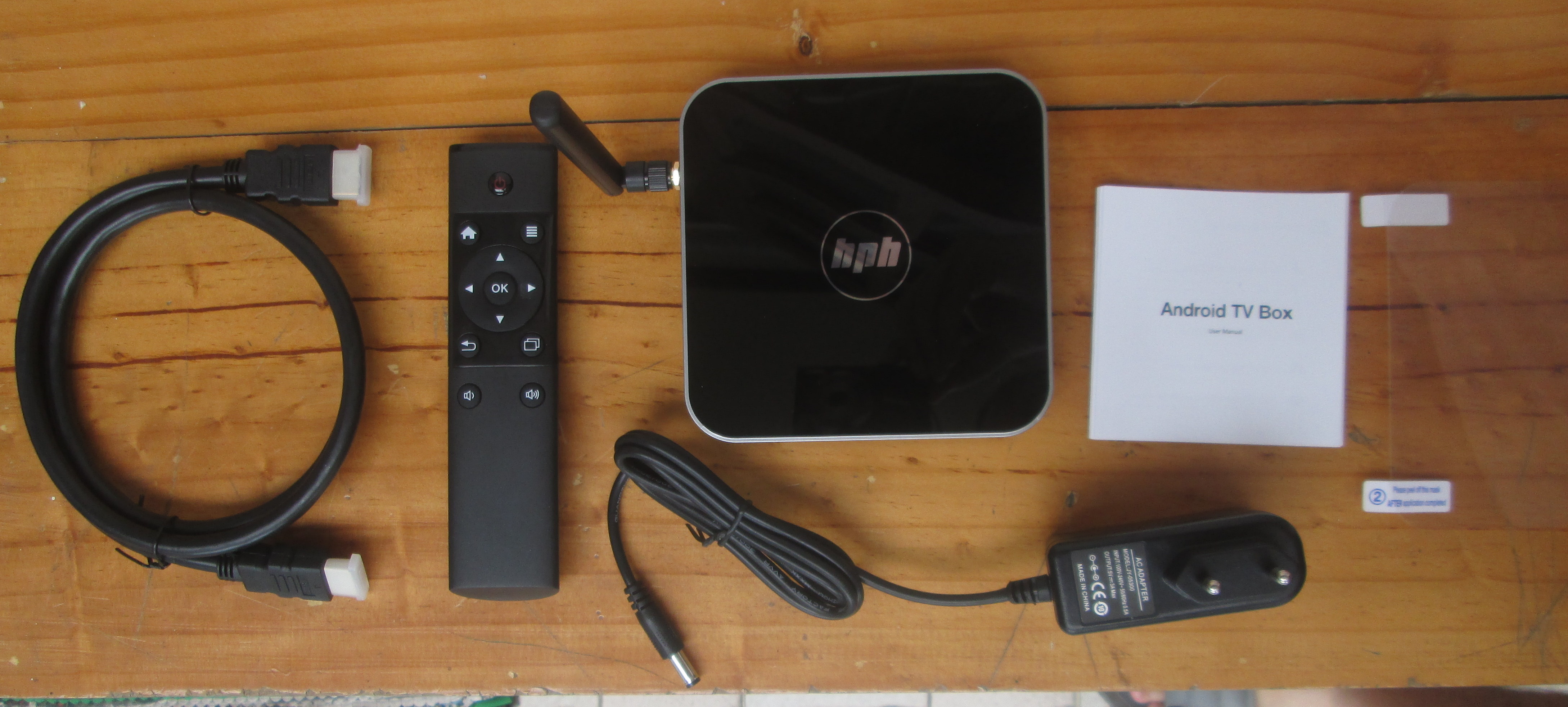

An HDMI cable (1 meter), an IR remote control requiring two AAA batteries (not included). a Wi-Fi antenna, a 5V/3A power supply, a user’s manual, and an enclosure protection film can be found in the package together with the box.

Nagrace NT-V6 and Accessories (Click to Enlarge)
Nagrace NT-V6 and Accessories (Click to Enlarge)

There’s nothing on the front of the device (where the power LED and IR receiver are located), a power button and antenna connector can be found on one side, AV output, a recovery button, a micro SD slot, a full-size USB OTG port, and HDMI IN are located on the other side, and the rear panel comes with the following ports: Gigabit Ethernet, two USB 2.0 host ports, HDMI 2.0 output, optical S/PDIF, and a DC power barrel.

Nagrace NT-V (Click to Enlarge)
Nagrace NT-V (Click to Enlarge)

The top of the case is a fingerprint magnet which may be why a protective film has been included.

You can also watch the unboxing video if you please.

 HPH NT-V6 Board

Let’s open the box to see what’s inside. There aren’t any screw holding both parts of the case together, but you’ll find a small opening between the gray and black parts just below the USB OTG port, where you can insert a flat-headed precision screwdriver to start popping out the bottom of the enclosure.

Bottom of NT-V6 Board (Click to Enlarge)
Bottom of NT-V6 Board (Click to Enlarge)

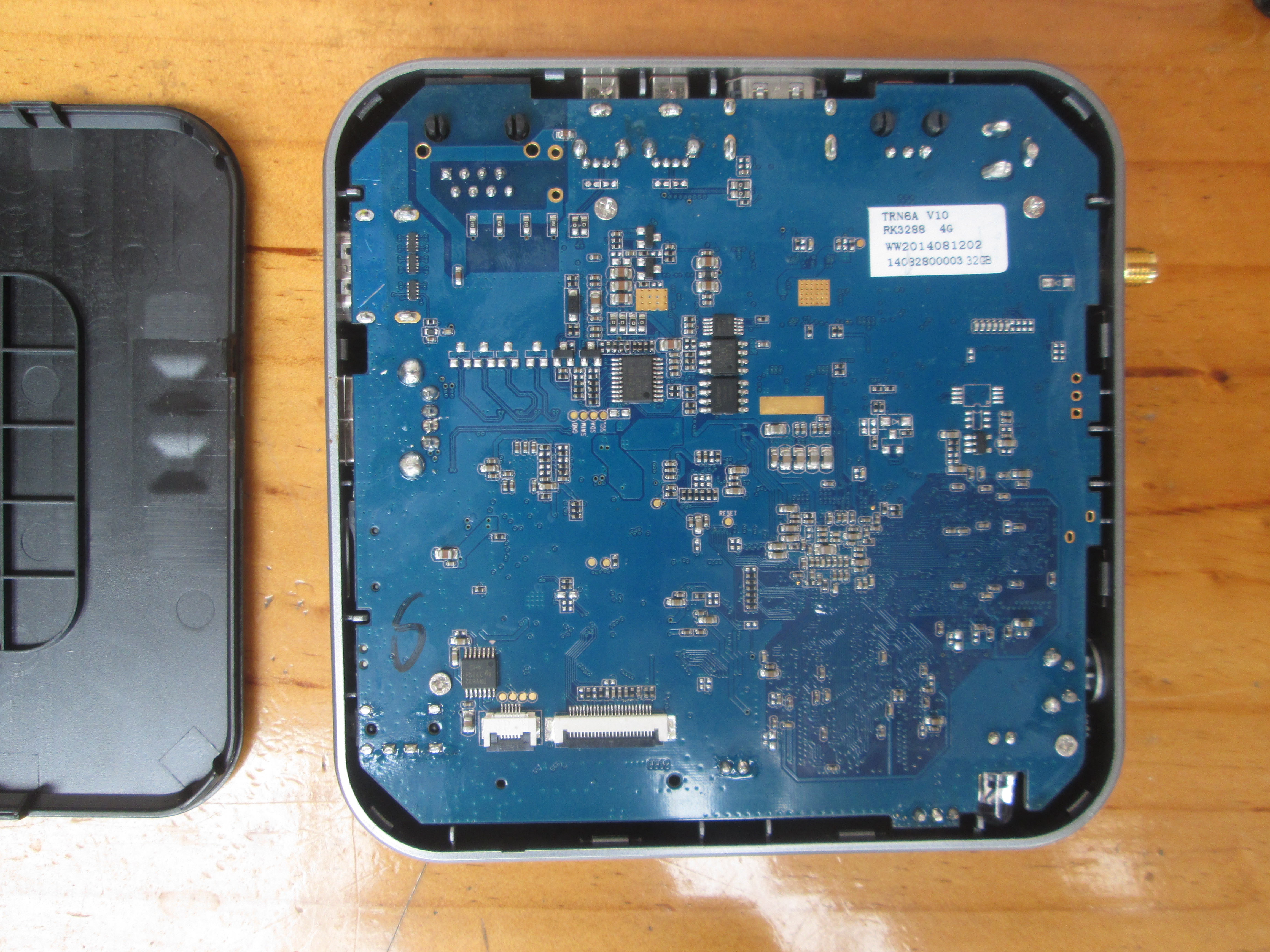

The board name is TRN6A V10, and it looks like I may have received the version with 4GB RAM and 32 GB eMMC based on markings on the sticker. You’ll also find ribbon connectors on the bottom left of the photo, probably for the camera interface, and maybe LVDS? You need to remove four screws to completely take out the board from its case.

NT-V6 Board (Click to Enlarge)
NT-V6 Board (Click to Enlarge)

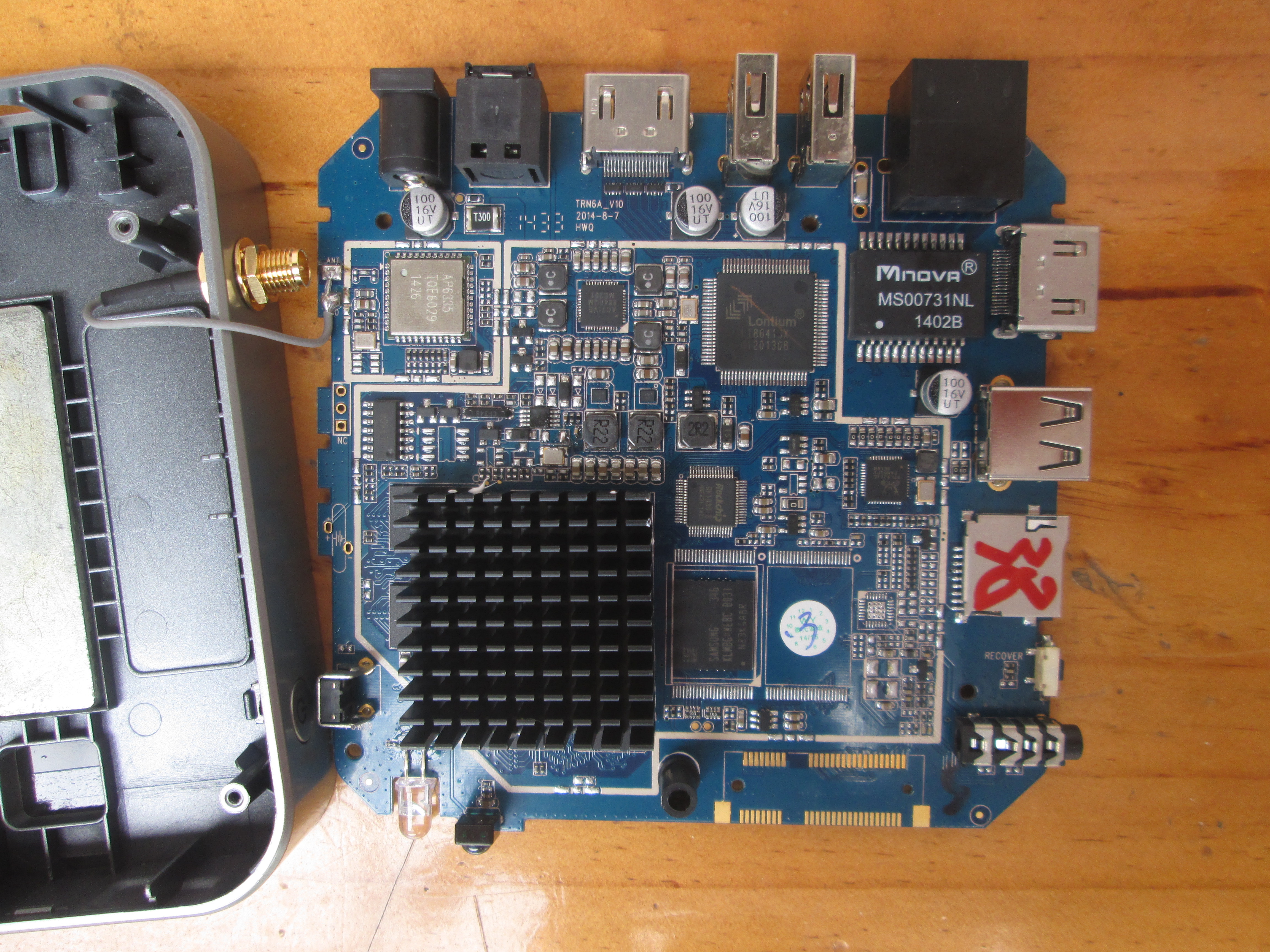

Again, a stainless place is screwed on the top of the enclosure for power dissipation reasons, but I’m not sure how efficient that is.  There’s also a heatsink, a bit larger than in the other RK3288 boxes, on top of the quad core SoC and the RAM chips. I have not dared to unglue it before testing the device. The wireless module is indeed AP6335 for 802.11 b/g/n, 802.11ac, and Bluetooth 4.0. Samsung KLMBG4WEBC-B031 is a 32GB eMMC 5.0 flash that can achieve 200MB/s read and 50MB/s write in theory, and there’s another empty emplacement to add another eMMC flash. Just under the flash, there’s another unpopulated connector (mini PCIe?). Lontium LT8641SX is a very recent HDMI 1.4 switch chip that provides up to 3x HDMI 1.4 input channel and 1x HDMI 1.3/ 3 MHL 2.0 input channel, so it’s obviously the chip handling HDMI input here.

That’s all for today for this exciting device. The version with 2GB RAM and 16 GB eMMC is available on Aliexpress for $129 + shipping, and the one with 32GB eMMC/4GB RAM as I received can be purchased for $189 including shipping by DHL or EMS. You may also want to visit Nagrace NT-V6 product page if you want to contact the company to order in quantities.
