TI Sitara based GOEMBED Systems-on-Module and Single Board Computers with BeagleBone Capes Support

Orange Pi Development Boards

GOEMBED is a startup funded by engineers previously working for Embest Shenzhen, based in Longhua district in Shenzhen, and specialized in embedded boards and modules. They currently have board and modules based on Freescale i.MX6 and Texas Instruments Sitara processors, but I’ll focus on the TI products in this post, including one of their single board computers that supports BeagleBone capes.

CM3352 and CM3358 Systems-on-Module

GOEMBED_AM3358_ModuleCM335x Series modules specifications:

  • SoC – Texas Instruments Sitara Cortex A8 AM3352 @ 800 Mhz or AM3358 @ 1.0 GHz
  • System Memory – 512 MB Micron DDR3 chip
  • Storage – 2 to 4 GB eMMC depending on model
  • PMU – TI TPS65910A3
  • Dimensions – 67.5 x 36.5 mm
  • Temperature Range – Commercial: 0° to 70° C or Industrial: -40° to 85° C

The modules are said to support Linux 3.x, Android 4.x, Ubuntu, Angstrom, Debian, WinCE 6.0/7.0, and uCOS operating systems.

SBC335x Single Board Computers

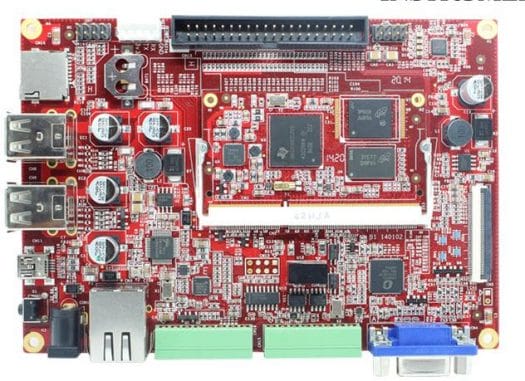

SBC3358_ACW-B1A
SBC355x ACW-B1A

GOEMBED currently has four SBCs based on TI Sitara processor with a combination of AM3352 and AM3358 processor, and two baseboard ACW-B1A and ACW-B2A with the following specs:

  • SoC/Memory/Storage – See CM335x SoM
  • External Storage – micro SD slot up to 32GB
  • Display – LVDS interface up for 16-bit RGB TFT @ 1366×768 resolution. 4.3″ and 7″ displays are available. B1A only: VGA port up to 1366×768
  • Audio – B1A only: 2x 4-pin header for stereo, Line In/Out, and MIC In
  • Connectivity – 1x Gigabit Ethernet
  • USB
    • B1A – 4x USB 2.0 host ports, 1x micro USB 2.0 OTG port, 2x 4-pin header for USB
    • B2A – 2x USB 2.0 host ports, 1x micro USB 2.0 OTG port, 2x 4-pin header for USB
  • Expansion
    • B1A – 2x RS232 header, 1x CAN & IO header, 2x 20-pin header with access to UART1/2, SPI0, ADC, PWM, GPIOs, etc..
    • B2A – Headers compatible with Beaglebone (Black), mini PCIe connector for 3G/Wi-Fi/Bluetooth/GPS modules
  • Debugging – UART0 for serial console
  • Misc – Reset button, RTC with CR1220 battery slot
  • Power Supply – 9 to 14V input. Optimal 12V/1.5A.
  • Dimensions – B1A – 146 x 102 mm; B2A: 130 x 103.5 mm

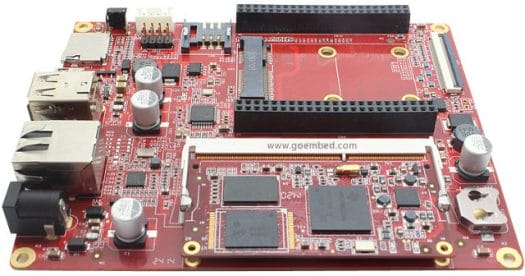

SBC335x ACW-B2A
SBC335x ACW-B2A

Modules are available now, and can be purchased until 2022. Prices start at $49 for CM3352 SoM, up to $99 for the industrial version of CM3358 SoM, and single board computers start at $89 (B2A + CM3352), and up to $149. I’ve also noticed the single board computers can be purchased on Aliexpress: both SBC335x-B1A ($139) and SCB335X-B2A ($59 baseboard + $59-$69 CPU module). Further details can be found on GOEMBED’s products page.
