STMicro announced their STM32F7 MCU family the same as ARM announced their latest ARM Cortex M7 core for high-end micro-controllers last September. Emcraft Systems have now launched a STM32F7 system-on-module with 32MB SDRAM and 16MB NOR flash, and ported uClinux to the platform. The company has also launched a STM32F7 starter kit for evaluation and development. Both target industrial automation, system and power management, wireless networking / sensors and other embedded applications.

STM32F7-SOM-1A Module

STM32F7-SOMSTM32F7 system-on-module specifications:

  • MCU – STMicro STM32F746 Cortex M7 MCU up to 200 MHz with 320KB RAM, 1MB flash in TFBGA-216 package
  • System Memory – 32MB SDRAM
  • Storage – 16MB NOR flash
  • Connectivity – 802.3 Ethernet PHY
  • SoM connectors – 2x 80-pin (0.4mm pitch)
  • Debugging – ARM SWJ-DP combined JTAG and serial wire debug port
  • Misc – Watchdog, RTC, USB and other I/Os via SoM connectors
  • Power – 3.3V DC; Low-power mode with short startup times; Deep-sleep power mode with ultra- low power consumption profiles;
  • Dimensions – 30 mm x 46mm
  • Compliant with the Restriction of Hazardous Substances (RoHS) directive
STM32F7 Module Block Diagram
STM32F7 Module Block Diagram

The company provides U-boot and uClinux 2.6.33 source code, binary images, and documentation for the module, as well as hardware documentation.

STM32F7 Starter Kit

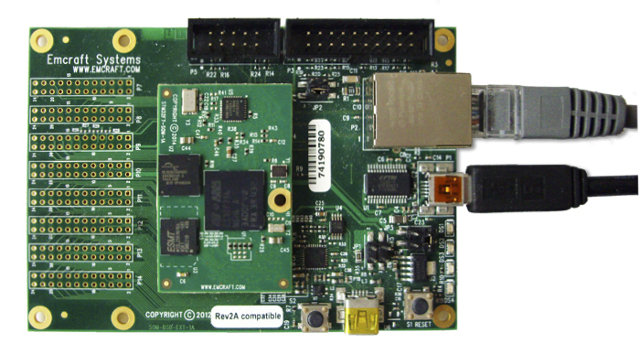

STM32F7_Starter_KitIn order to quickly get started with the SoM, a starter kit (KIT-STM32F7-EXT) composed of STM32F7 SoM and SOM-BSB-EXT baseboard is also available with the following key features:

The baseboard is 100×70 mm in size and has the following main interfaces:

  • SoM Connectors – For STM32F7 SoM
  • Connectivity – 10/100M Ethernet (RJ-45 connector)
  • USB – 1x mini USB interface using a USB-UART bridge, 1x  mini USB OTG Interface
  • Debugging – mini USB (UART), 20-pin ARM JTAG interface
  • Expansion – Breadboard area with unused STM32F7 signals
  • Misc – User LEDs and push-buttons (reset, user)
  • Power Supply – 5V via mini USB (UART) interface or VCC3 on SoM
  • Dimensions – 100×70 mm

You can watch the demo showcasing fast boot to Qt (4s) and the performance of the system on a Qt based user interface, which is said to have greatly improved over STM32F4 thanks to ART accelerator and L1 cache in STM32F7.

The starter kit can be pre-ordered for $159, and the STM32F7 SoM sells for $27 per unit in 10K+ orders. Software and hardware documentation, and pre-order links are available on Emcraft’s STM32F7 SoM product page.

The company is also getting rid of stock of their older starter kits based on Microsemi SmartFusion (Cortex-M3 + FPGA) and NXP LPC1788 for $49.
