Freescale Introduces a Coin-sized Single Chip Module (SCM) Based on Freescale i.MX 6Dual

Orange Pi Development Boards

As the Freescale Technology Forum 2015 is taking place in Austin, Texas, the company will announce a few new products over the 4-day conference. After the official launch of Freescale i.MX 7 series processors, Freescale unveiled a new product based on their existing i.MX6 platform with “i.MX 6Dual SCM” (Single Chip Module) that integrate a dual core i.MX 6Dual processor with 1 or 2 GB LPDDR2 (PoP), a 16MB NOR flash and a PMIC in a tiny, coin-sized module.

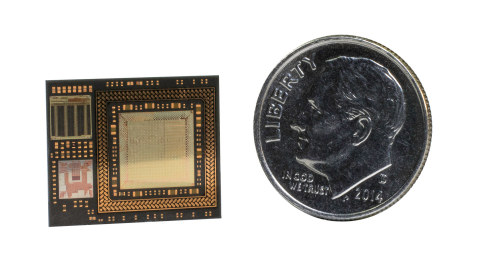

SCM_i.MX6D Key feature of SCM-i.MX6D module:

  • Freescale i.MX 6Dual application processor with two ARM Cortex A9 core @ 800 MHz and Vivante GPUs (2D/3D)
  • System Memory – 1 or 2 GB LPDDR2 (PoP configuration)
  • Storage – 16 MB SPI NOR (Micron N25Q128A13)
  • Power Supply – Freescale PMIC PF0100
  • Dimensions – 17mm x 14mm x 1.7mm

There are also 109 discrete components on the module. BSPs for Linux and Android will be provided.

Module Block Diagram (Click to Enlarge)
Module Block Diagram (Click to Enlarge)

To help with early development, Freescale is also planning to soon launch an SCM-i.MX6D Evaluation Board with the following specs:

  • Module: SCM-i.MX6D with 1GB RAM
  • Storage – eMMC + 2x SD car slots, usable for boot, storage, and WiFi cards
  • Connectivity – 1x GbE port, WiFi (via SD slot)
  • USB – 1x Type A USB port, 1x Micro-AB USB port
  • Audio – Stereo audio codec; microphone input
  • Expansion – 1x Mini-PCIe socket
  • Misc – 1x CAN connector

Optional modules adding HDMI output, LVDS (10.1″ display), WiFi, and others will also become available with the evaluation kit.

SCM i.MX6D Evaluation Board
SCM i.MX6D Evaluation Board

Freescale’s SCM modules are expected to be used in applications ranging from 3D gaming goggles, to “next-generation” IoT drones as well as other IoT products, a medical equipment, and autonomous sensing applications.

The i.MX 6Dual SCM should become available in August 2015 either directly from Freescale, or through Arrow Electronics, and more SCM products are planned for the next two years. Check out SCM-i.MX6D product page for details.

Via Liliputing and LinuxGizmos

Support CNX Software - Donate via PayPal or become a Patron on Patreon

14
Leave a Reply

avatar
14 Comment threads
0 Thread replies
0 Followers

Most reacted comment
Hottest comment thread
7 Comment authors
Grain Media 8136S / 8138S are Low Cost HD IP Camera SoCsRafalNoJon SmirlDim Recent comment authors
  Subscribe
newest oldest most voted
Notify of
david
Guest
david

This looks interesting, I hope the price will be reasonable to take it instead of soc+ram+rom

Benjamin Vernoux
Guest

Such chipset all in one will be a real must with BGA FET100 or FET256 MAX but not with BGA400 or more … (especially for IoT or other ultra embedded design)

gicho
Guest
gicho

@david
I don’t think so. My guess is that this combo will be more expensive than the sum of all involved ICs. That’s why even chinese companies that sell milion SoCs per month in price sensitive market are doing separate SoC+DRAM+FLASH. Multi-chip packaging technology is more expensive that regular PCB. For example, Allwinner’s A13 was TQFP to allow 4 layer pcb stack to reduce the total price.

Dim
Guest
Dim

I wouldn’t agree, Nuvoton N32926 (https://www.nuvoton.com/hq/products/microprocessors/arm9-mpus/n3292-h.264-codec-series/n32926u1dn/?__locale=en) is about 7 USD, those things to manufacture huge package chips that require 8 and more layers PCS, huge number of external components seems to me like protectionist business practices to make the business available just to certain companies.

Member

The most cost optimized solution I know of is the GrainMedia GM8136 ($4.80) + ESP8089 ($0.80). GM8136 does 720P H.264, runs Linux and has 128MB of memory on-chip. All you need to do is add the ESP8089 and a SPI flash chip. It is easy to build a complete solution for under $10.

Dim
Guest
Dim

@Jon Smirl

You mean GM8136S, where do you source it ? I had inquiries to some China based entities they wanted fees just for the SDK, which to the best of my understanding is GPL licensed. The price they offered for GM8138S was 30 USD/sample + shipping.
In the past, I had quotation from Sacsys, they asked just for GM8128 EVK 3,500 USD.

Member

@Dim

It is GM8136S. Just go into the Shenzhen Grain office, that is where we got our stuff. SDK is well under $1,000 but it comes with full development hardware and factory tech support. Chips in small quantity (<100) are about $7. $4.80 is by the reel.

Grain has mixed their own proprietary code into the software, so yes some of it is GPL but they'd have to go through the effort to split it apart. I don't see them doing that anytime soon, and the GPL pieces are pretty much worthless without their user space stuff.

Grain lowered the prices on their SDKs about a year ago, most are under $1,000 now. Some of the distributors are not paying attention and still sell at the old prices.

I am working on a GM8138S design, it about the same as GM8136S but 1080P vs 720P.

Dim
Guest
Dim

@Jon Smirl

Thanks for the recommendation. I am also interested about GM8138S, but not sure if it will support WDR sensors like AR0331 as well as the situation with the low-light mode. It is advertised to support Low lux sensitivity to ISO6400. Might similar images to HikVision Dark Fighter DS-2CD6026FHWD in low-light conditions be expected, or it is just some basic image improvement ? Have you done any testing ?

Member

@Dim
It supports the AR0331CS (2-MIPI), not the AR0331CM (4-MIPI).

It actually support about 30 different sensors including some high end Sony ones.

We have not tested extensively. We use the GM8138S inside a larger system to get three streams.

No
Guest
No

Interesting chips, but be fair with any comparision:
The Freescale device has 2×32 bit memory bus (not 1×16 like some of the chips mentioned above) and more interfaces, 2x Cortex-A9 (not the old ARM9) and 2D+3D GPU… this is clearly not targetted at low-cost IP-Cams.
Oh and the Linux support comes for free 😉

Rafal
Guest
Rafal

@Jon Smirl

John is it possible to buy about 10 modules GM8136S ?
I want use it in our new products but I need to test it.
Unfortunately distributors GM write only about the SDK for 2500USD and the MOQ 1890

Member

This company is shipping a GM8138S based camera. You can buy and disassemble to get boards.

http://en.tvt.net.cn/pro_view.aspx?Typeid=128&id=418
TD-9433T

Address: 5F,North Block,CE Lighting House, Hi-Tech Park, Nanshan District, Shenzhen,GuangDong,P.R.China

Dim
Guest
Dim

@No

a major issue with Freescale products is that probably in most of the cases you will not get what is advertised. For example, the GPU you mentioned, it suppose to provide 16-24 GFLOPS, in practice (https://community.freescale.com/thread/305327) people were able to obtain just 0.6GFLOPS. By the way I had similar issues with other peripherals from Freescale products. Issues associated with AR0331 and i.mx6 (https://community.freescale.com/thread/322170). It was actually interesting, how those people were intending to use AR0331 with i.mx6, since to the best of my understanding a complete WDR algorithm (including deghosting) requires more than 30k LUTs on FPGA etc. In addition, the mentioned solutions have integrated audio-codecs. On N32926 is kind of noisy, but can you point any SoC with integrated DDR that can run Linux in QFN88 package ?

Another solution that was recommended is Hi3518E, 440 MHz ARM9, 512 Mb DDR2 from Hisilicon Inc. Some claim that is the best solution in China for IP cameras with the biggest market share. The price apparently is lower than GM8136S, but the encoding is limited to: H.264&JPEG streams: [email protected] [email protected] fps JPEG snapshot.

trackback

[…] Comments RSS Feed, although it might quite busy at times, especially during giveaways. Recently, an interesting conversation started in the comments section about low cost IP camera chips by Grain Media 8136S and 8138S SoCs […]
