Eny EMP01 is a $170 mini Android Projector Powered by Rockchip RK3128 Quad Core Processor

Orange Pi Development Boards

Eny Technology has brought another product to market with EMP01 an Android 4.4.2 mini projector based on Texas Instruments DLP projector – as most other low cost projectors on the market – and Rockchip RK3128 quad core Cortex A7 processor with a Mali-400MP2 GPU.

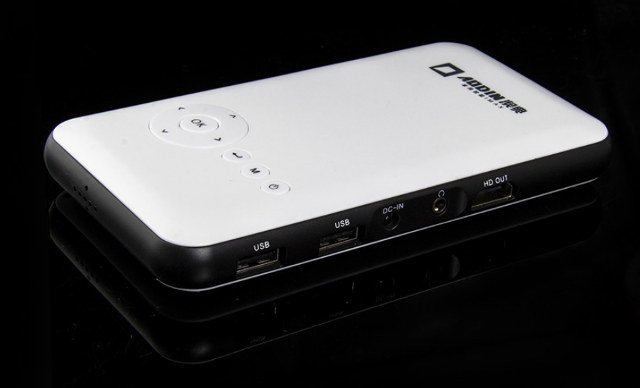

EMP01_Android_Projector
Eny Eny EMP01 specifications:

  • SoC – Rockchip RK3128 quad core ARM Cortex A7 @ 1.2GHz with ARM Mali-400MP2 GPU
  • System Memory – 1 GB DDR3
  • Storage – 8 GB NAND flash + micro SD slot (up to 32GB)
  • Projector
    • Technology – Texas Instruments DLP
    • Brightness – 100 lumens
    • Contrast ratio – 2000:1
    • Standard resolution – WXGA 854*480
    • Throw ratio: 1.19:1 (76″ @ 2 meters)
    • Projector size – 30 to 120″
    • Aspect ratio – 4:3, 16:9, 16:10
  • Video Output – HDMI output
  • Video Codec – H.263, H.264, H.265, VC-1, RV, VP6/VP8, Sorenson Spark, MVC, MPEG-1, MPEG-2, MPEG-4 up to 1080p
  • Audio Output – HDMI and 3.5,, for earphone, loud speaker
  • Connectivity – Dual band Wi-Fi 802.11 b/g/n, Bluetooth 4.0
  • USB – 2x USB 2.0 host port
  • Misc – IR receiver, D-Pad with OK button, power button. “M” button, and back button.
  • Battery – 4,200 mAh battery (Only shown on one website. TBC Confirmed with Eny).
  • Power Supply – 5V/2.5A
  • Dimensions – 145 x 80 x 17.5 mm
  • Weight – 250 grams

The projector ships with the power supply, an HDMI cable, an IR remote control, and a Quick Start Guide in English. There’s no tripod to orient the projector, but there a socket to mount the projector or install it on a tripod.

Photo Showing EMP01 Image Quality (Click to Enlarge)
Photo Showing EMP01 Image Quality (Click to Enlarge)

I’ve been provided with a few photos showing what the image from the projector looks like on a wall, and it looks quite usable, although a bit blurry…

Distributors and resellers may want to check with Eny Technology directly to buy in quantities, while individuals can purchase it on Aliexpress for $170 including shipping, under the brand Aodin, or for $175 from another Aliexpress store.

Support CNX Software - Donate via PayPal or become a Patron on Patreon

1
Leave a Reply

avatar
1 Comment threads
0 Thread replies
0 Followers

Most reacted comment
Hottest comment thread
1 Comment authors
Desvio Recent comment authors
  Subscribe
newest oldest most voted
Notify of
Desvio
Guest
Desvio

WXGA 854*480
It seems so odd to push “XBMC”, netflix, and even miracast at that resolution. Yes there is HDMI out, but you might as well use something else at that point (even your phone with an HDMI adapter).

I am aware that there are business uses, but I imagine that your PowerPoint presentation would be very washed out by the time you are up to an screen size sufficient for a meeting room full of people. If the room is light controlled, it likely already has some sort of display – again making room for other cheaper devices. This leaves us with small (one-on-one) PowerPoint presentations as the best use.

These are awesome in theory, but only usable in practice for a small market.
