ASRock N3150TM-ITX Thin Mini-ITX Board is Powered by Intel Celeron N3150 Processor

With its N3150DC-ITX motherboard, ASRock had already released a mini-ITX motherboard based on Intel Celeron N3150 “Braswell” quad core processor, but the company has now launched a thin mini-ITX version, which limits the maximum height to 2.5cm and is often used in All-in-One PCs, with ASRock N3150TM-ITX motherboard.

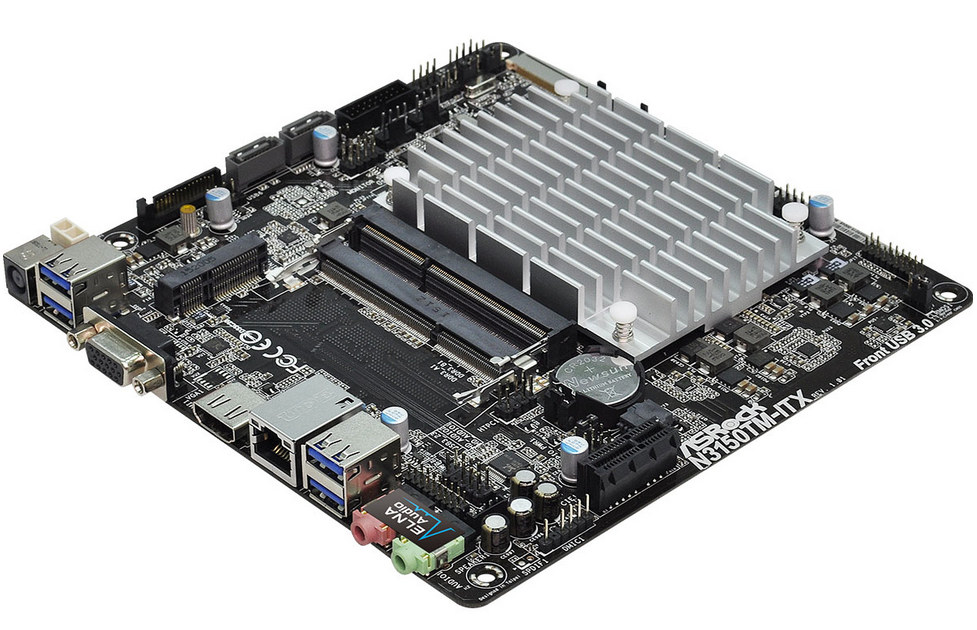

Click to Enlarge
Click to Enlarge

ASRock N3150TM-ITX board specifications:

  • SoC – Intel Celeron N3150 quad core processor @ up to 2.08 GHz with Intel HD Graphics Gen8 @ up to 640 MHz – 6W TDP
  • System Memory – 2x DDR3/DDR3L SO-DIMM slots for up to 16GB RAM
  • Storage – 2x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
  • Audio Codec – Realtek ALC892 Audio Codec, 7.1 CH HD Audio
  • Expansion – 1x PCI Express 2.0 x1 Slot, 1x half size Mini PCI Express slot (Bluetooth function in WiFi module not supported)
  • Rear panel ports
    • Video Output
      • 1x HDMI port up to 2560×1600 @ 60Hz
      • 1x D-Sub (VGA) up to 1920×1200 @ 60Hz
    • USB – 4 x USB 3.0 Ports
    • Audio – HD audio jacks: Microphone / Front Speaker (Supports SPDIF Optical)
    • Connectivity – 1x Gigabit Ethernet (Realtek 8111GR)
    • DC jack
  • Internal Connectors
    • USB – 3 x USB 2.0 headers (Supports 5x USB 2.0 ports) ; 1x USB 3.0 header (Supports 2x USB 3.0 ports)
    • 1x LVDS up to 1920×1200 @ 60Hz
    • 1x COM Port header
    • 1x Power LED header
    • 1x TPM header
    • 1x CPU Fan connector (4-pin)
    • 1x Chassis Fan connector (4-pin)
    • 1x SATA power connectors
    • 1x Internal power header
    • 1x Front Panel Audio connector
    • 1x Analog Surround Audio connector
  • Misc – Hardware monitor for temperature , fan RPM, and voltages
  • Power Supply – 19V DC input
  • Dimensions – Mini-ITX form factor

So overall the configuration is quite similar to N3150DC-ITX, except two SATA ports have been removed, VGA has replaced DVI output, and LVDS replaced DisplayPort. The motherboard can certainly be used in fanless configuration, but in case you need a fan, the 4-pin headers (vs 3-pin headers in N3150DC-ITX) should allow to adjust the speed of the fan depending on the temperature.

N3150DC-ITX mini-ITX Board vs N3150TM-ITX thin mini-ITX Board
N3150DC-ITX mini-ITX Board vs N3150TM-ITX thin mini-ITX Board

The motherboard will ship with two I/O Panel Shields, a WiFi Module Screw, a Quick Installation Guide, and a support CD. It may also optionally come with two SATA data cables and one SATA 1 to 2 power cable. The company only lists Microsoft Windows 10 64-bit, Windows 8.1 64-bit, and Windows 7 64-bit (with modified installation disk) operating systems, but Linux distributions should also work, just as they do on Intel Braswell NUCs.

I could not find pricing nor availability information, but you can check a few more pictures on ASRock N3150TM-ITX product page, and more all the technical details you may want to read the user’s manual.
