BeagleBoard-X15 Board Based on TI Sitara AM5728 SoC Announced, To Sell for $239

We’ve first found out about Beagleboard-X15 open source hardware board about a year ago, and development has taken a bit longer than expected, but Beagleboard.org has now formally launched BeagleBoard-X15, which remains based on Texas Instruments Sitara AM5728 dual Cortex A15 processor, and is expected to ship before Christmas for $239.

BeagleBoard-X15The key part of the specifications are still the same as last year, but we’ve got a few more details now:

  • SoC – Texas Instruments Sitara AM5728 with:
    • Two ARM Cortex A15 cores @ 1.5 GHz
    • PowerVR SGX544-MP2 3D GPU, Vivante GC320 2D GPU
    • Two Cortex M4 cores @ 212 MHz
    • Dual core C66x DSP @ 700 MHz
    • IVA (Image and Video Accelerator) for 1080p video decode (H.264, VC-1, MPEG 1/2/4, AVS, etc..)
    • Four 32-bit PRUs (Programmable Real-time Units)
  • System Memory – 2GB DDR3L @ 533MHz
  • Storage – 4GB 8-bit eMMC flash, micro SD slot, and eSATA interface (500 mA)
  • Video I/O – HDMI out up to 1080p60, LCD port, and Video IN
  • Audio I/O – HDMI out, analog audio In/Out (via AIC3104)
  • Connectivity – 2x Gigabit Ethernet ports
  • USB – 3x USB 3.0 ports (2x @ 900mA, 1x @ 1800 mA) , 1x micro USB 2.0 client, 4x internal USB 2.0 interfaces
  • Debugging -20-pin JTAG header, serial debug header
  • Expansion Headers – 4x 60-pin high-speed surface-mount headers with access to up to 157 GPIOs, 7x UARTs, SPI, I2C, CAN, 2x PCIe, LCD, mSATA, camera,  and up to 185 PRU pins
  • Misc – Power LEDs, Ethernet LEDs, 4-user LEDs, reset and power buttons, RTC with optional battery backup
  • Power Supply – 12V DC @ TBD via power barrel. PMIC: PS659037
  • Dimensions – 10.67 x 10.16 cm
Back of Beagleboard-X15 Board (Click to Enlarge)
Back of Beagleboard-X15 Board (Click to Enlarge)

The board will run Debian, Android, Ubuntu, Cloud9 IDE on Node.js and more operating systems and tools. Beagleboard-X15 is supported in U-boot mainline (since v2015.01-rc3), but they still recommend to use Texas Instruments’ fork, and Linux mainlining is in progress with USB 2.0, dual Ethenet, and some GPIO code already supported. The Wiki also mentions a potential about open source user space driver for the PowerVR GPU by FSF. The wiki is where you’ll get most information for now, as  the first version of the System Reference Manual is planned for the end of October, and the rest of the design materials soon after. Full technical documentation for Sitara AM572x processors can already be accessed on AM5728 rocessor page.

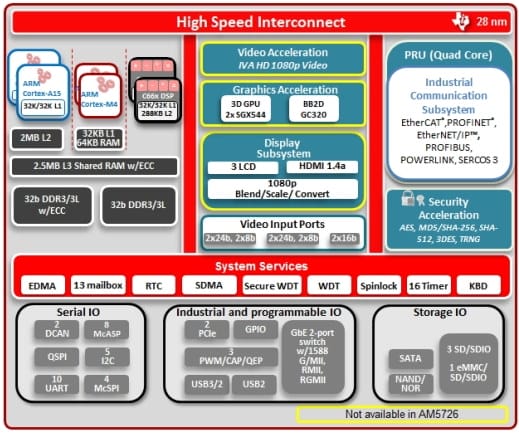

Sitara AM572Xx Processors' Block Diagram
Sitara AM572Xx Processors’ Block Diagram

The first production run is scheduled to have 2,000 boards, and boards should be shipped to distributors around November 15th. So while you can;’t quite buy the board right now, you can still register your interest on BeagleBoard-X15 product page to be informed once the board is up for sale. BeagleBoard-X15 has an estimated lifespan of over 10 years.
