BeagleBone Blue Board is Designed for Robots and UAVs

Beagleboard.org organization already tried to go Blue with BeagleBone BlueSteel-Basic that was supposed to a the single board computer to be used by OEM to integrate into their design instead of BeagleBone Black development board. For some unknown reasons this never happened, but they’ve now reused the color to introduce BeagleBone Blue board designed for robotics and UAVs.

BeagleBone_Blue
BeagleBone Black with Robotics Cape (BeagleBone Blue picture is not available)

BeagleBone Blue specifications:

  • SoC – Texas Instruments Sitara AM3358 Cortex A8 @ 1 GHz + PowerVR SGX530 GPU
  • System Memory – 512 MB DDR3
  • Storage – 4 GB 8-bit on-board flash storage
  • Connectivity – 802.11 b/g/n, Bluetooth 4.0 LE
  • USB – USB 2.0 client and host
  • Motor Control – 8x 6V servo out, 4x DC motor out, 4x quad enc in
  • Sensors – 9 axis IMU, barometer
  • “Easy connect Interfaces” – GPS, DSM2 radio, UARTs, SPI, I2C, analog, buttons, LEDs
  • Power / Battery – 2-cell LiPo support with balancing, 6-16V charger input
  • Dimensions – N/A

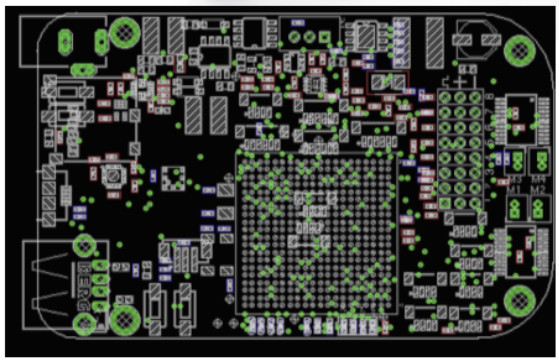

The board is still in development, and the only picture I have is the one of the PCB layout.

BeagleBone_Blue_PCB_LayoutThe project was born thanks to a collaboration between Beagleboard.org and University of California San Diego, as they currently use a BeagleBone Black with a Robotics cape as shown in the first picture of this post for their robotics educational kits, and started to create a single board computer for this project.

The BeagleBone Blue will be software compatible with BeagleBone Black and support Debian, Ubuntu Snappy, ROS, Ardupilot, Machinekit, etc.. as well as Cloud9 graphics IDE on Node.js, among others.  The kits shown in the video are EduMiP self-balancing robot, EduRover four wheel robot, and there will be a third kit called EduMAV, which I guess should be a “Miniature UAV”, e.g. a mini drone/quadcopter.

There’s currently no information on availability and pricing. Further details will be posted on BeagleBone Blue page as the project progresses.

Via @TXInstruments.
