10-bit H.264 and H.265 Video Playback in MXQ-4K Rockchip RK3229 TV Box

Rockchip RK3229 is an exciting media processor because it’s found in ultra low cost TV Boxes such as MXQ-4K, outputs up to 4K @ 60 Hz, and supports 4K video decoding of 10-bit H.264, 10-bit H.265 and VP9, including videos with very high bitrates (200+ Mbps). That’s the theory, which I’ve put to the test with MXQ-4K TV box.

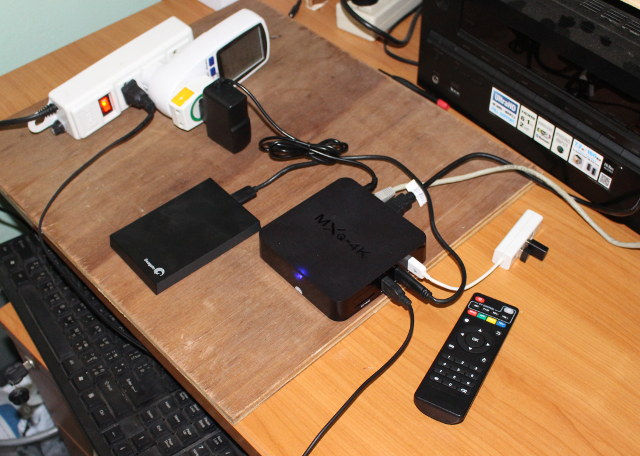

MXQ-4K_hard-drive

Since the network interfaces of the device are limited to 100M Ethernet and 802.11n WiFi, and some videos are well above 100 Mbps, I’ve decided to test video playback from a USB hard drive instead. I’ve tried the three pre-installed video player apps: Kodi 15.1, “Video”, and “Video Player” , and they all have similar capabilities except Kodi is a little less stable on this device.

The system detected my 4K TV (LG ) and automatically set the resolution to 3840×2160 @ 60 Hz, which I used for the remainder of this test.

I’ve started with 10-bit H.264 videos at 720p and 1080p resolution that no other devices I’ve reviewed could play properly:

  • [Commie] Steins;Gate – NCED [BD 720p AAC] [10bit] [C706859E].mkv – OK with video, audio, and subtitles.
  • [1080p][16_REF_L5.1][mp3_2.0]Suzumiya Haruhi no Shoushitsu BD OP.mkv – Black screen only

That’s 50% success. better than nothing.

Then I switched to some 4K videos:

  • Beauty_3840x2160_120fps_420_8bit_HEVC_MP4.mp4 (H.265) – OK (at least the first time)
  • big_buck_bunny_4k_H264_30fps.mp4 – Choppy and massive audio delay, followed by audio cuts from time to time.
  • BT.2020.20140602.ts (Rec.2020 compliant video) – Not smooth and some audio cuts
  • Fifa_WorldCup2014_Uruguay-Colombia_4K-x265.mp4 (4K, H.265, 60 fps) – Slow motion
  • Samsung_UHD_Dubai_10-bit_HEVC_51.4Mbps.ts (10-bit HEVC / MPEG-4 AAC) – Difficult to judge 100%, because the video is a time lapse, but it appears to suffer from the same issues
  • -4K.mp4 (10-bit H.264) – Video and audio play, and subtitle are shown, but video is again not smooth

If you want to get a better idea of the performance, you can watch all those videos played in MXQ-4K below.

I’ve also tested other 4K videos, and most have the same problem. I’ve also tried to switch to 1080p60 video output instead, but the results are only a little better. I’m not exactly sure what may cause the choppiness, and I first thought about memory bandwidth issues, but I’ve noticed the problem is not really constant, and get worse overtime, and very quickly (about one minute), so overheating, or an over sensitive scheduler, may be the reason. My room temperature is around 28 to 30 C so this may affect the results too, since some other people told me they were satisfied with the device.

Share this:
FacebookTwitterHacker NewsSlashdotRedditLinkedInPinterestFlipboardMeWeLineEmailShare

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard

23 Replies to “10-bit H.264 and H.265 Video Playback in MXQ-4K Rockchip RK3229 TV Box”

  1. Checking logcat when it plays smoothly:

    when things start to get ugly, I get a few other messages showing frames are late:

    and there’s a background process that scan my complete hard drive:

    So maybe it does not help…

  2. Other errors on sluggish video:

  3. Something is wrong in the software port for this box. Maybe this ODM stuck an RK3128 build on it since it is upwardly compatible. I don’t understand why this box is shipping with Kitkat while other RK3229 boxes are shipping with Lollipop.

    Also — I do seem to remember having video trouble with Kitkat on my RK3128 systems. Those problems went away after I switched to Lollipop with a newer (3.10) kernel. Maybe this ODM has used that old kernel that was broken. What kernel is this box running?

    Of course non-participation by the silicon vendor in software issues always results in the vendor’s reputation getting destroyed. When will the chip vendors learn that it is in their own best interest to host their up-to-date SDKs on a public, read only server. All of the secrecy just results in the shipping of broken products and unhappy customers.

  4. @Jon Smirl
    I think RK3229 only supports Kitkat, and I cannot really understand why Rockchip did not provide a Lollipop SDK for this processor. The Linux kernel is version 3.10.0 in my device.

    Anyway there’s definitely a problem, and similar to what I got with Zidoo Pro X6. The performance will quickly go south, so they need to look into the software, as I don’t think a Cortex A7 processor should overheat much, even at 1.46 GHz. My Antutu score is only 12,849 points (after boot), while on GeekBuying it’s a little over 20,000.

  5. @Gabe
    It’s not like the “micro shutter” issue on other Rockchip processors, and it looks much worse to the end user. It’s just the system can’t sustain performance, even for something that’s supposed to be low power such as video playback.

  6. If you Google, you can see other vendors shipping Lollipop on RK3229. It is just this vendor using Kitkat.

    For example this box looks to be identical except it is running Lollipop.
    http://jingweiya.en.alibaba.com/product/60402819566-802550058/Vplus_MXV_Kodi15_2_Android_5_1_Lollipop_RK3229_Quad_Core_OTT_TV_Box_4k_smart_tv_box.html

    That’s why I’m suspicious that someone has put the wrong Android onto your box because they don’t want to pay the fee for SDK access.

  7. @Stane1983
    +1
    Yes, Alibaba doesn’t always have accurate descriptions, at 3 places it is different and even different devices. So for end users it’s not a good idea to buy from Alibaba, rather use Aliexpress and also make sure about the descriptions and buy from a store with high ratings and lots of comments.

  8. Can you post the mediainfo [http://mediaarea.net/en/MediaInfo] dumps for the test clips?

    > [1080p][16_REF_L5.1][mp3_2.0]Suzumiya Haruhi no Shoushitsu BD OP.mkv – Black screen only

    16 refs @ 1080p would likely be difficult for a hardware decoder. Most only support up to 4 refs @ 1080p.

  9. @…

    Here’s the output for the hi10p 1080p video:

    For the other videos you can download them via various links @ http://www.cnx-software.com/2010/03/17/where-to-get-video-audio-and-image-samples/#comments (Search for 4K and hi10p for the videos used in the post above)

  10. @Stane1983

    Here one that is clearly RK3229 with Android 5.1.
    http://www.alibaba.com/product-detail/Vplus-Mini-Mx-RK3229-Quad-Core_60388729765.html?spm=a2700.7724857.29.48.x7AOr4

    Another one, this one is an HDMI dongle.
    http://www.globalsources.com/gsol/I/Android-based-TV/p/sm/1137806499.htm#1137806499

    I had problems almost identical to this when running Android 4.4 on the RK3128. Moving onto Android 5.1 fixed everything. I believe the fixes are in the newer kernel, not the actual Android 5.1.

  11. @Jon Smirl
    If you check your first link the title is Android 5.1, but further down in the description you’ll find “Android 4.4.4”.
    If Rockchip just had a product page and some documentation when releasing a new processor, we would not have to have these kind of discussions/speculations…

  12. Something is messed up here. Rockchip has released Android 5.1 for the RK3128. I have the source code for it and it works fine. You can get the source at the Fireprime site. That source is about a year newer than the Android 4.4 port for the RK3128. But… that Android 4.4 port has been widely distributed and it is easy to find source for it.

    The RK3129 is just an RK3128 with some moderate changes to the video engine. I have not seen a detailed datasheet but I think this is on the order of clocking the video hardware faster and changing the HDMI PHY.

    So why would Rockchip add support for this chip to a two year old 4.4 release when they are already have a current 5.1 release that is 95% of what they need? Or…. did some OEM who didn’t want to pay SDK fees hack on the Android 4.4 version until it booted? And then everyone copied it.

    It is just idiotic to be charging for these SDKs. It is in the chip maker’s best interest to have all of their products running their latest and greatest code. Anything that slows this distribution down (like SDK fees, NDAs, etc) is harmful to the chip maker reputation. Put the SDKs up on github or similar in read-only accounts so that we can find the current version of your code.

  13. It looks like it works better when I disconnect the hard drive, and play files from the SAMBA share. It’s still not 100% stable (black screen or reboot), but at least videos are playing smoothly. It must be Android Kitkat MediaScanner that makes things so slow. My hard drive has millions of files, so it might explain why the system is struggling as it is scanning it, even after one or two days…

    There’s still a problem with temperature as Antutu scores varies a lot, but I’ll write a separate post about that.

    1. @cnxsoft
      on samba, can play h264 hi10p , different files without reboot?

      i reqlly want to replace my pi2, for something that can handle hevc main 10 and hi10p h264..

  14. Testing this box now.. It’s half baked, and not due to the Android version, but more due to the firmware which needs more optimization and correction.. I think. ENY is updated constantly with all the bugs and issues I find, so I hope they’ll do something about it and soon.
