Software Matters, or How SinoVoIP Crippled Banana Pi M2+ Performance.

The most common way to use a development board is to simply go to the manufacturer website, and download the images from there. They are the ones who made the hardware after all, and they should be the most knowledgeable about their platform. But it may not always be true as tkaiser found out when he ran some Phoronix benchmarks on Banana Pi M2+ (aka BPI M2+) board with SinoVoIP (the manufacturer), Armbian, and Raspbian images. The results speak for themselves.

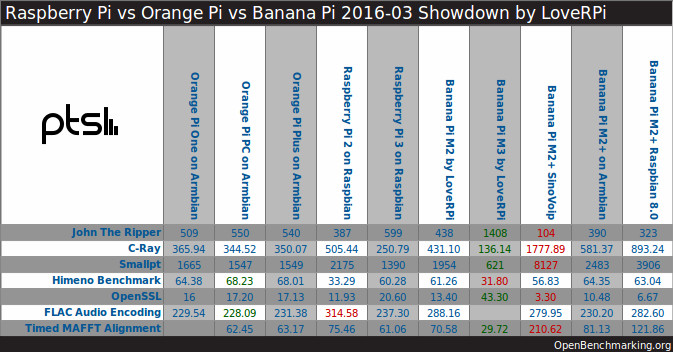

Banana_Pi-M2+_BenchmarkThe last three columns are what is of interest here, and in some benchmark Banana Pi M2+ is about 3 times slower with SinoVoIP image compared to Armbian, while with others the performance is quite similar. John The Ripper password cracker benchmark shows a massive difference between distributions…

Click to Enlarge
Click to Enlarge

… while FLAC audio encoding not so much.

Click to Enlarge
Click to Enlarge

So what’s going on here? First Jon the Ripper is a multi-threaded applications, while FLAC audio encoding works mostly on one thread, so SinoVoIP image does not seem to be negatively impacted by tasks using a single core. More clues comes with one comment, after SinoVoIP released a new Android 4.4 firmware on April 11:

the maximum clockspeed for bpi m+ is just 1Ghz not 1.2 as advertised and cpu cores stops after full load

So the massive performance degradation in multicore benchmarks appears to be related to the CPU throttling implementation, with the SinoVoIP image simply killing cores instead of decreasing frequency in order to manage the CPU temperature. That means multi-threaded tasks may run on a single core after a short time with SinoVoIP image, instead of the 4 cores on Allwinner H3 processor on Armbian and Raspbian images. The small performance difference is also explained by the lower maximum CPU frequency, as Allwinner H3 is rated to run at 1.2 GHz, but SinoVoIP decreased that to about 1 GHz.

tkaiser explains further:

Unfortunately SinoVoip again tries very hard to ignore any bug fixes or improvements which will lead to the BPi M2+ being the slowest H3 board ever. Their THS settings limit the CPU clockspeed to 1008 MHz (compare with the 1.2GHz they advertise with) and to killed CPU cores instead of lowering the CPU clockspeed. So chances are great that you end up with H3 running just at 1008 MHz and only one active CPU core after running heavy stuff on the board.

While Armbian already takes special precautions for the M2+ to bring back killed CPU cores and implements sane throttling (240MHz to 1200MHz) SinoVoip chose to ignore all of this.

What’s even more frustrating is that, as I understand it, all what is needed are some modifications of script.bin (aka FEX file) – Allwinner configuration files -, and specifically the cooler_table and dvfs_table sections of the file. Hopefully, SinoVoIP, and potentially other manufacturers, will read this post so that they can provide optimized images for their Allwinner boards and devices. In the meantime, you’d be better served by using Armbian images, unless you need to run Android, although simply replacing script.bin should help.

Share this:

Support CNX Software! Donate via PayPal or cryptocurrencies, become a Patron on Patreon, or buy review samples

Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
5 Comments
oldest
newest
manuti
manuti
5 years ago

Is not only Software, Hardware also matters.
Check the big differences between Orange Pi One and BPiM2+ using the same Allwinner H3 but with hardware voltage control capable of running up to 1200MHz.

tkaiser
tkaiser
5 years ago

The three tests were as follows: the 1st two were both Armbian but the first time with SinoVoip’s THS settings, the 2nd time with the linux-sunxi community ones. I let cpuburn-a7 start before as an example for a very heavy workload which reliably killed all CPU cores but one. Therefore with SinoVoip’s settings (Allwinner’s defaults in fact) there was one CPU core running at 1008 MHz remaining, with Armbian settings the killed CPU cores came back and cpufreq could reach 1.2Ghz when single threaded tests ran. The 3rd test was then made with their genuine Raspbian 8.0 image, I refrained… Read more »

tkaiser
tkaiser
5 years ago

@manuti The test results between Oranges and the Banana Pi M2+ can not be compared since LoveRPi used active cooling when he was doing the initial round of tests. When using heatsink+fan Orange Pi One and BPi M2+ perform absolutely identical as long as we’re talking about CPU performance (same SoC, same clockspeed –> same performance). Without a fan it gets interesting since due to a missing progammable voltage generator on M2+ VDD_CPUX can not be lowered when lower clockspeeds are used and therefore throttling works very inefficient. When BPi M2+ already has to throttle down to 648 MHz (all… Read more »

tkaiser
tkaiser
5 years ago

@manuti And please keep in mind that this is also Orange Pi One: http://openbenchmarking.org/result/1603312-GA-1603277GA73&obr_sor=y&obr_hgv=Orange+Pi+One (here OPi One is magnitudes slower since Phoronix chose Xunlong’s Raspbian image that uses exactly the same wrong Allwinner defaults SinoVoip now uses) The result of the aforementioned wrong THS settings combined with the usual Phoronix ‘benchmarking gone wrong’ style and the very same hardware is 5 to 10 times slower compared to sane settings. Settings matter. In case of the H3 boards also software matters since the ‘Killing CPU cores instead of throttling’ behaviour is part of Allwinner’s BSP/Android kernel and should be fixed. But… Read more »

tkaiser
tkaiser
5 years ago

Help needed: We at Armbian currently try to improve THS settings for Orange Pi One/Lite, NanoPi M1 and Banana Pi M2+. In case anyone a bit more experienced owns such a board without heatsink applied to the SoC please read through http://forum.armbian.com/index.php/topic/1231-testers-wanted-improving-ths-settings/ and consider helping us improve the settings (every OS image and everyone might benefit from later!)
