VideoStrong KII Pro Android Set-top Box with DVB-T2 & DVB-S2 Tuners Comes with 2GB RAM

Based on the number of comments I get daily on my review of Videostrong K1 Plus T2 S2 Android TV box, the device is rather popular thanks to its dual DVB-T2/T2C and DVB-S2/S tuner, its low price, and OpenELEC community support. However, some people are possibly affected by the mere 1GB RAM in the system, with some apps being killed during use due to lack of memory. One solution is to purchase WeTek Play 2, but at $120 it’s in a different price range, and does not offer a dual tuner solution. But Videostrong has recently launched their KII Pro DVB T2+S2 model based on K1 Plus DVB T2+S2, but with 2GB RAM, 16GB storage, and 802.11ac WiFi.

K2-PRO

KII Pro specifications:

  • SoC –  Amlogic S905 quad core ARM Cortex-A53 @ up to 2.0GHz with  penta-core Mali-450MP GPU @ 750 MHz
  • System Memory – 2GB DDR3
  • Storage – 16GB eMMC flash + micro SD card slot up to 32GB
  • Video Output – HDMI 2.0 up to 4K @ 60Hz, and 3.5mm AV (composite video) jack
  • Audio – HDMI, AV (stereo audio), optical S/PDIF
  • Video Codecs – 10-bit H.265 up to 4K60, MPEG/VC-1/AVS+/H.265 up to 4K30
  • Tuner – Combo DVB-T/T2 and DVB-S/S2 with two connectors
  • Connectivity – 10/100M Ethernet, 802.11 b/g/n/ac Wi-Fi, and Bluetooth 4.0 (Ampak AP6335) – Not Realtek RTL8189 as shown in Aliexpress according to VideoStrong.
  • USB – 4x USB 2.0 host ports
  • Misc – Power button and LED, IR receiver
  • Power Supply –  DC 12V/1A
  • Dimensions – 130 x 120 x 32 mm
  • Weight – 187.50 grams

K2 Pro runs Android 5.1.1 and comes with the same DTV app installed on K1 Plus S2 T2 with channel scanning, EPG, channel recording and CCCAM/NEWCAMD support. People who require AC3 / Dolby D 5.1 in some countries will have the same issue as on K1 Plus T2 S2 because the Dolby license is still missing, and a device with Amlogic S905-H is required, unless maybe if you use OpenELEC (TBC) instead of Android.

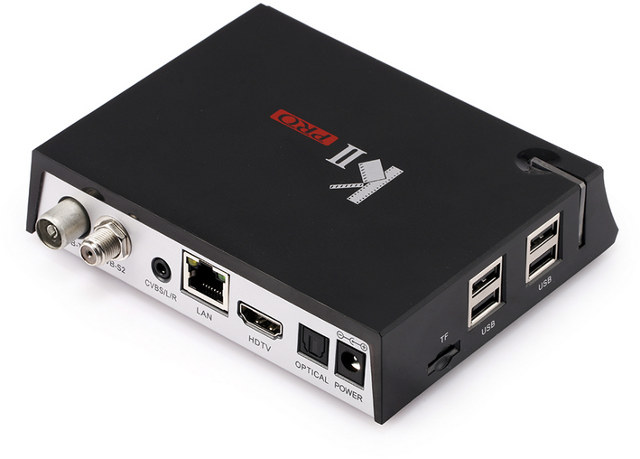

KII_Pro_T2_S2The box is currently sold on Aliexpress for $82.69 shipped, and GeekBuying for $79.99. It’s also sold under the Acemax brand for about the same price, but it’s unclear whether the WiFi module is the same since they only mention dual band WiFi. More details may soon be available on Videostrong products page.

Share this:
FacebookTwitterHacker NewsSlashdotRedditLinkedInPinterestFlipboardMeWeLineEmailShare

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard

247 Replies to “VideoStrong KII Pro Android Set-top Box with DVB-T2 & DVB-S2 Tuners Comes with 2GB RAM”

  1. When I was interested in broadcast TV, my theory was always to have a box like this streaming the selected channels to other viewing devices around the home. Has any serious attention been given to making such a thing? From what I have seen, you have to use their Android app to choose the channel, and watch it locally (via HDMI).

  2. Well i dont know how this chinese companies sell dvb box without dolby as many channels on dvbt and satellite have dolby or dolby digital plus as main audio

  3. @Rodrigo
    Their answer “Our company is not belong Dolby DTS membership .So can’t make it .” So I think there’s a significant cost to having DTS and Dolby license, which explains why most don’t use S905-H/S912-H. If you need it, you’d have to go with WeTek, and maybe others, but I can’t think of any other names right now.

  4. @Rogan Dawes
    I’m not sure it’s supported in the Android firmware in VideoStrong boxes. If you install OpenELEC instead, you should be able to use Tvheadend to stream videos on your network.

    I’ve tested it with my Android smartphone running Kodi, and U4 Quad Hybrid Android TV box with T2/S2 tuners -> http://www.cnx-software.com/2016/03/25/stream-live-tv-to-your-computer-or-smartphone-with-u4-quad-hybrid-kodi-and-tvheadend/

    Some people also recommend CESBO server, but I think I tried once and was confused by the setup instructions.

  5. Clicking on your link to Videostrong I did not see the KII Pro, (think their site could be organised better) but in the group ‘Hybrid TV box’ saw the ‘KB4’ which has ‘Octo-Core 64-bit Cortex-A53’ which I assume is a S912. Also has Gigabit, 2GB DDR3, and a more interesting global selection of TV tuner standards: ‘DVB:DVB T2/DVB S2/ISDB-T /ATSC /DTMB/DVBC(Optional)’. Although the photo shows an external Antenna, in typical style they forget to list which Wireless standards are supported, or even USB.

    Nearest I saw to your ‘KII Pro’ was the ‘KI Plus’ (in the Hybrid TV box group) which also had ISDB-T in the more global list of TV Tuners.

    The Videostrong photos show the 2 TV Antenna sockets fixed into the left end of the backpanel. I recently saw another style, forget if on this site, where the 2 TV Antenna sockets, also on the left, but fixed onto a separate backpanel, which I assume is attached to the Tuner card, allowing for easier exchange of Tuner card types.

    Do these plugin Tuner cards conform to a standard so interchangeable between different TV Box brands ?

  6. @cnxsoft
    When you do your reviews, what about testing streaming films using the new Android version of VLC Media Player ?
    (As yet, I have found no good TV Box with ISDB-T, but know MS Windows version of VLC has streaming)

  7. Did somebody know, why no Boxes with the S905D-chip are available? With real android-TV-OS Vers. 6.0 ore higher.
    I have heard that SPMC (better than Kodi – thanks STAN) would give Dolby passthrough positiv result with Android >6.x.
    Ore is this information not correct?

  8. I recently got one of this KII pro working good but cannot seem to connect to cccam server it connects for few seconds then disconnects any suggestion how to get it working

  9. @cnxsoft @Rogan Dawes
    Only reason I mentioned VLC VideoLAN was @Rogan Dawes asked if these boxes can stream the output (of the TV Tuner & other playing media) to other devices around the house.

    I quickly rescanned your article last October, and see the box had a miserable 1.24 MB/s WiFi, and you had probs running the October 2015 version of Android VLC. Reason I directed the post to you, was because I read quite recently of a ‘new’ VLC for Android. Perhaps the new version will perform better on TV boxes ?
    (as yet, I have no TV box to test it myself)

    The link to your old review listed Wifi speed of many boxes. What is your WiFi speed test environment ? i.e. how many metres/walls/floors between devices ?

  10. There are this same tuners and drivers, so situation is this same, LibreELEC are special build with DVB drivers

    And please understand, that only RAM bump .. thats it, i dont will expect more preformance

    1. In the article it is written that the dtv application Supports oscam. Is this true? I did not see oscam Support so far.

  11. Ferguson Ariva 4K – which have in 99% smilar hardware and using DTV app, already support oscam 😉 so maybe is possible copy this app to K1, KII

  12. None of this boxes support OSCam as none of them have dvb-api support. Only box on market so far on Android and DVB to support dvbapi is Wetek

  13. The K1 plus and K2 pro just have one tuner!!
    It is dvb-c/t/s, but the same time just can work only one, do no dvb-t and and dvb-s tuner.
    It’s dvb-t or dvb-s tuner

  14. @Envagyok75
    Hi, from where can download a working image?
    I like the Stock one too, but the TV function of the DTV app. is horribel 🙁 i used an Amiko Alien 2+ before, but it was miles better. CCCAM is breaking often for me also, it’s working, but sometimes it stops for 3-9sec. the S2 tuner is also not the best. I will upload some pictures from the inside of the machine also if it’s needed.

  15. @cnxsoft
    Thank You i will check what i use because the updater is not finding any update 🙁
    Is there any special tool (falsher ect.) ? I’m searching for a channel editor to edit my channels, favorites i found your topic for the KI Plus editor but unfortunately i don’t find that files in the system. where can i find this or how is it possible to customize it? This DTV app is made by the Videostorng team or who because i want to send him some feedback to make some changes/improvements whit it or if i have a driver to make it alive @ KODI then it will good also (whit CCCAMD/NEWCAMD) of course, because i use this features too.

  16. @gabywap
    Hi.
    Jaja, tudom, közben kipróbáltam, most hogy feltettem az OTA frissítést, már aktív az exportálás/inportálás a DTV app.-ban, eddig nem ment, lövésem nincs miért… Már tudok csatorna listát szerkeszteni.

    A dulaBoot-tól félek, mert van már pár Tégla amiről olvastam, bár lehet ACEMAX file-jai ehhez is jók. Egyenlőre félek tőle… KODI-hoz kellene valami driver ami kezeli a tunert, vagy valami app. ami kezeli a tunert, ha nincs akkor kénytelen leszek kivárni az OpenElec / Libreelec megoldásokat. Bosszantó hogy ami ebben van DTV app az elég butácska.

    ————————————————

    Yes, i know, i have try out this Editor after the OTA update, because before this in the DTV app. the export/import was not available, it was grey, i don’t know why… Now i can edit the channels.

    I’m afraid for the DualBoot, because i have read about some bricked K2’s, maybe ACEMAX’s files could be good for this device… I need some drivers for the tuner because i want to use it under KODI or some app. what can handle the tuner, if it’s not available then i should wait for the OőenElec / Libreeelec working solution for K2. This DTV app is not so clever.

  17. @Mark Saker
    I think it’s not, because before you want to use you need to chose one in the DTV app. whit another 3rd party app. maybe but i reed this tuner is not a Dual one.

  18. tahir saleem :
    I recently got one of this KII pro working good but cannot seem to connect to cccam server it connects for few seconds then disconnects any suggestion how to get it working

    Were you able to get cccam working…same problem here too. Consensus seems to be that Videostrong supplied units don’t work on Cccam, but Acemax do. Is the Acemax software able to make the Videostrong unit work?

  19. I understand this unit doesn’t support AC3 /dolby. I have an amp that does (Onkyo) and all sound goes through it. All my units (Dreambox, Bluray players etc) are connected to the amplifier. Will I get AC3 and 5.1 with this setup or will all sound from K2 Pro be muted? Will feed through HDMI cable.

  20. 61$ for shopping through the “banggood App”
    Did we buy this or we expect a newer model with newer cpu in the next months?

  21. @mesut
    Here is all:

    I repacked installation packages to fix some install issues.

    SDcard versions:
    LibreELEC-Amlogic.aarch64-KI_Plus-7.0.2.004.2.img.gz
    https://mega.nz/#!6kViyIhD!drb1fqDhiLL0r3R78kGTP4fAx6Wr_05vas8Sxzw8BF0

    LibreELEC-Amlogic.aarch64-KII_Pro-7.0.2.004.2.img.gz
    https://mega.nz/#!6gc1yRiJ!hUAm2Zhk3I6BurH6jfGDUL_S1CdlxtH_hBrJVPBzIcI

    Install SDcard version to internal connecting to box via ssh and submiting command: /flash/installtointernal
    Don’t use kszaq version of ‘installtointernal’ otherwise u brick your box.

    Internal flash versions:
    LibreELEC-Amlogic.aarch64-KI_Plus-7.0.2.004.2.zip
    https://mega.nz/#!24czCK7K!U_vejrU7JyGX8Or3mIKrXfLMnwoBxZFbV0nsKuCriaA

    LibreELEC-Amlogic.aarch64-KII_Pro-7.0.2.004.2.zip
    https://mega.nz/#!3gEF3ZRY!C0VD6NJF9BLsNcMSqpOuN54VnNysZFTuhc3xIQxB5l8

    Unzip file to SDcard or USB stick. Install from recovery or Android update apk.

    (11 hours ago)qashaf Wrote:
    i tested dvbt2, scanning fail but dvbs2 working well. blutooth also working successful. i aware that dvbs2 signal low 10% compare to my enigma2 box. normal signal for certain transponder 80-90%, but with k2pro around 70-80%. . tuner sensitivity also weak, this factors gave no signal or lost during scan or livetv. i dont know what is the minimum signal that suitable the box to scan successsfully.

    Signal level is very informative value and hard to compare between different boxes. Most important is SNR. 50% is enough for HD channels. Most important parts are satellite dish and LNB. Tuner can hardly improve bad signal. If u have low signal on tuner u have to use LNB with higher gain.

  22. qashaf say

    My K2pro stil with LE 7.0.2.004.1. The dvbs2 and dvbt2 are working successfully now but need to tune setting the tuner. For dvbt2, error exist many time “DVB-T #0 – poll TIMEOUT” and lastly the tuner successfully scan the channel. For dvbs2, the tuner successfully scan for certain satellite. The tuner fail to scan certain satellite, depends on TP frequencies.

    make sure power save selected for dvbs2 dvbt2. when the satellite channel turn on, to choose terrestrial T2 channel make sure stop (STOP button on RC) the satellite channel first before turn on T2 channel.

    2016-10-08 07:43:44.484 subscription: 00DF: “scan” subscribing to mux “682MHz”, weight: 2, adapter: “Availink AVL6862 : DVB-T #0”, network: “mytv”, service: “Raw PID Subscription”
    2016-10-08 07:43:46.173 linuxdvb: Availink AVL6862 : DVB-T #0 – poll TIMEOUT
    2016-10-08 07:43:49.479 mpegts: 682MHz in mytv – scan no data, failed
    2016-10-08 07:43:49.480 subscription: 00DF: “scan” unsubscribing
    2016-10-08 07:43:59.479 mpegts: 682MHz in mytv – tuning on Availink AVL6862 : DVB-T #0
    2016-10-08 07:43:59.483 subscription: 00E0: “scan” subscribing to mux “682MHz”, weight: 2, adapter: “Availink AVL6862 : DVB-T #0”, network: “mytv”, service: “Raw PID Subscription”
    2016-10-08 07:44:00.982 linuxdvb: Availink AVL6862 : DVB-T #0 – poll TIMEOUT
    2016-10-08 07:44:04.464 tot: 682MHz in mytv: invalid checksum (len 8, errors 1)
    2016-10-08 07:43:58.015 mpegts: 682MHz in mytv scan complete

  23. @cnxsoft
    I made a small video showing AC3 on DTV. When I first unpacked the box I had no talk in DTV with AC3 (it use to come from center speaker as you probably know) but only surround effects. After trying different settings I got sound in all speakers. Sound quality is good but I feel the sound may not be 100% in sync with the picture. It isn’t as bad as it looks from the video I made (it was made with Canon EOS 600 camera which is great for photographs but not as good with video).

    https://minfil.org/v7aapdbab5/K2_Pro_AC3_video.mkv

    Mediaplay from NAS is perfect, no problems with sound sync.

  24. @Jonas
    Hmm. That’s odd.. You are using PCM output, and AC3 appears to be working. The DTV app shows stereo though, while the audio track is named “swe (AC3)”. Videostrong told me they would not support AC3 because they are not a licensee.

  25. @Tristan
    The unit supports Video HD MPEG1/2/4,H.265/HEVC , HD AVC/VC-1,RM/RMVB,Xvid/DivX3/4/5/6 ,RealVideo8/9/10 and playes files AVI/RM/RMVB/TS/VOB/MKV/MOV/ISO/WMV/ASF/FLV/DAT/MPG/MPEG. Audio supported MP3/WMA/AAC/WAV/OGG/AC3/DDP/TrueHD/DTS/DTS/HD/FLAC/APE according to technical specifications where I bougt the unit (see post 70) . But your question – MKV with DTS and Dolby Audio, yes, I experienced it last weekend. 🙂

  26. I have now tested DVB-S function of this receiver. AC3 / Dolby digital is supported in DVB-S aswell (in my box, not sure how others are). Since it is a 4K / UHD box I tried scan some 4K / UHD channels and I could watch these! I really didn’t expect this, it was nice bonus. I tried scan the channels with my Dreambox 800 HD too but got only audio then. I don’t have 4K / UHD tv, could only see the video downscaled to 1080p and it was blu-ray quality (normally satellite HD is not as good as blu-ray in detail). I wish the box would list the 4K / UHD channels as such but they are labeled HD in the channel list. Will test cccam and biss this weekend. I can make video of my finds if you want.

  27. I am a little confused.
    The box from Ali express it can play ac3/dolby digital but the same brand/box from other shop like banggood it can’t or we are not surem

  28. I noticed high temperature 82c while I watching Dtv t2.
    it is funny, I have and the mecool bb2.
    Both boxes have the same interface.
    Both boxes the same temperature.

    Again 62$ (vip only price) from banggood.

    Maybe the kiii pro is close?
    what about the price range for the kiii when it reach the markets?

  29. Has anyone tried Diseqc 1.1? with more than 4 LNB?

    What about some problems that have been mentioned regarding low signal quality and constant freeze of viewing? How does it compare (as a tuner) with a dedicated Sat Receiver Box in terms of sensitivity and lock down the signal?

    Is is a better choice instead of the previous K1 Plus? Do the 2G Ram offer any true advantage? In terms of glitch-free viewing or high tempereture and stuff like that?

    Should we wait for the upcoming K3 pro? I care only for the Satellite part of the box.

  30. @nik
    I tried diseqc 1.1 and I had no problems with my K2 Pro box. I have 16 LNB in my setup. I could watch satellite feeds at 10 degrees east without problems. No freezings here in my tuner. I had AC3 audio and it tuned in 4K channels aswell. Biss, Cccam and blind scan was nice bonus. Only thing I miss is support for 4:2:2 channels (mostly used in professional satellite feeds) and a better remote control.

    ‘Anotherone’ mentioned high temperature – I don’t know how he measured (with or without case?). 82 C does sound much. If I remember I can measure next time I watch 90 min movie

    More memory means you can install more apps or record more before the memory runs out. K2 is definitely better than K1. Wait for K3..? sure why not. There may be a K4 later too, question is how long one should / can wait. 😉

  31. 80c it is easy for my kii box to have even in 720 kodi movie.
    I measured with the case and “cpu temp” or a similar program, I do not remember exactly because I do not have now the box.
    I am expecting a second box in 7-10 days so I will tried again.

    From your words only 4:2:2 is missing for “feedhunters”

    For me is a great option to buy today in 62$ from banggood.

  32. @Jonas

    Thank you Jonas. Your post was very insighting and helpful. I am ready to order it.
    From your answer I understand that you are familiar with Sat Feeds, emulation and stuff.
    Is there any site or a link for extra information for the specific product or any similar to this?
    I was out of Sat scene for a couple of years and I am left behind, in order of knowing the “key factors” sites

  33. I would buy one of these units if it supported 1000Mb LAN.
    The existing 100Mb supported seems really dated especially since I have optical fibre access at speeds of 300Mb.

  34. @cnxsoft

    Thanks I will take a look…. Wondered if it’s possible to set up a share on the Android box and mount and edit the required files on my Windows laptop.

  35. @cnxsoft

    Thanks I will take a look…. Wondered if it’s possible to set up a share on the Android box and mount and edit the required files on my Windows laptop.

    Balanga :
    I would buy one of these units if it supported 1000Mb LAN.
    The existing 100Mb supported seems really dated especially since I have optical fibre access at speeds of 300Mb.

    Just wondered if anyone had come across a DVB-S2 TV box supporting Gigabit LAN….

  36. @nik
    Regarding tuner sensitivity I have made some more observations. I tried watch Manny Paquiao boxing sunday morning, satellite feed at 10 E satellite. Tuner received it nicely and accepted the biss key I had found on the net. I have a technomate receiver aswell and it couldn’t tune in the frequency properly. It found the channel but was too glitchy to watch, seemed it had identified the channel as 16psk when it in fact was 8psk. But on K2 box perfect.

    I seem to have lost AC3 / DTS in kodi when watching mkv files. I have dropouts in the sound. Found a fix that addressed the problem which I think works if I use another app to play mediafiles. But in DTV app no changes, works good there (AC3).

    The K2 box is smart little toy but somewhat buggy and not as userfriendly as I would like to recommend others (non-tech users) to buy it.

  37. @anotherone
    Because it will never offer anithing 🙁 that updater app can only used by offline update. Copy the downloaded file to USB or SD, put in, start the updater app select the destination folder and update… device will reboot in recovery and start the update. That’s it.

  38. Can anyone help me with inputting cccam data on this box, when I try and load CFG file I get unsupported format every time, and when I try enter details manually Im sure sure which boxs should be used to place the line eg Lable : protocol @ server address ect

  39. Hello, I tried tvheadend42 under LE boot, but scan channels doesn’t run. Nothing happens, no error message.

  40. Hi,

    Regarding the start-up time, is there a standby mode (with wake-up from remote control)? what is the wake-up delay from standby to dvb-t2 tv operational?
    how responsive is the swap between channels?

    Thanks for your help,
    Philippe

  41. Hi, I have installed Malysk 2.4 version to my KII Pro, but still no DTS/DTS-HD/Dolby-TrueHD support on HDMI. It send stereo PCM signal to receiver. Only AC3 is working good. Anyone had similar experience?

  42. is it good choice to buy the 5.1 logitech speakers with digital and dts decoder?
    I do not have more money to spend this period than 220€ (amazon uk)
    I have the kii pro and one box with s912.
    if I connect the speakers with one of the boxes what it will happen when I try to play a movie from kodi or some other player and the movie have newer Dolby versions like Atmos ets?

  43. Hello,
    does anyone tested to connect an external HDD with EXT3/4 partition? Android mobiles are based on a Lunux, so possibly this is a way how to solve a FAT32/NTFS bug.

    Unfortunatelly, I have not external HDD yet, so I cannot do tests alone. 🙂

  44. @Petr
    Amlogic Android 6.0 devices normally only support NTFS, exFAT, and FAT32 file systems. exFAT is normally quite slow when it comes to write speed (~6MB/s). EXT-3/4 is not supported on most Amlogic devices.

  45. Videostrong seem to have a new model in plan, the kiii pro with the s912 and 3GB ram. Can’t find it at a retailer anywhere though, only some vague references for it on wholesale at alibaba. Do you think it’s worth to wait for it to become available and get that one instead or will the s905 vs s912 and 2 vs 3 GB ram not make any significant difference? http://www.videostrong.com/productshow.asp?id=924&sid=248

  46. hi, i just got my K2 few days ago…and it doesn’t find any DVB-T programs here in Norway (DVB-t Mpeg4).
    is there someone who had same problem that have solution for it?

  47. Please answer me a general question because I want to buy in an offer.
    Does kodi or other players do downmix from true-hd, atmos ets to simple 5.1 channels so I can have surround sound to all my 5.1 speaker system with dts/digital decoder only?

  48. hello
    I have one key for dgea that works for many channels.
    How I add it ?
    I found the biss etc settings but I do mot understand how I add it because it needs except the key, frequency and ssid.
    Do I need to do it for all frequencies, and what is ssid

  49. @anotherone
    SSID is usually 0001 for satellite feeds… try it along with the frequency. You need to tie every key to respective frequency.

    I myself got fed up with my K2 Pro box, re-installed WDTV box again. The K2 is good for digital tv mostly but very buggy when playing media files (mkv movies), often sound problems. Maybe I should try install alternative software. If anyone knows a good one let me know, must be English thx.

  50. ZHi everyone.
    How I can fully backup my k2 and restore on another k2 pro? I tried backup function but not shccesscull. İs there a alfernative way?z

  51. @messert
    as always – you can backup and restore your apps and data with Titanium Backup. For backup and restore your Kodi installation you can use Kodi backup ad on.

  52. How to open chanel codec 4.2.2 in KII PRO?? I want to search INTERNET PROTOCOL KII PRO and streaming on vlc android. But not found

  53. Is it possible to disable DVB-S2 tuner in K2-Pro box? I want to run DVB-T2 tuner by default after pressing DTV button on remote control. I do not use DVB-S2 tuner so choose DVB-S2 or DVB-T2 is not needed for me. Let me know if there is e.g. configuration file/jumper on PCB to disable DVB-S2 option.

  54. Who has 4pda.ru account?
    Please help download the file.

    DTVLauncher_PV_20161207.apk (2.16 MB)
    th_dtv_PV_20161207.apk (3,1 MB)
    DTVLauncher_PV_20161207_T2.apk (2.16 MB)

    http://4pda.ru/forum/index.php?showtopic=730111&st=3880#entry56049144

    ————-ru to english—————-
    We continue to indulge in: sveta: reverse engineering:

    – Pressing DTV button on the remote control will automatically start viewing S2 (without dialogue S2 / T2 selection) (DTVLauncher_PV_20161207.apk)
    – Pressing DTV button on the remote control will automatically start viewing T2 (without dialogue S2 / T2 selection) (DTVLauncher_PV_20161207_T2.apk)

    – A modified version of the stock apps. Add to aspects of setting another Pan & Scan mode. And, “repaired” the very aspect;)
    (Th_dtv_PV_20161207.apk)

    Unsubscribe on the results, pliz. : Thank_you:

    PS firmware latest Stock (other not tested)

    Attached files

    Attached file DTVLauncher_PV_20161207.apk (2.16 MB)
    Attached file th_dtv_PV_20161207.apk (3,1 MB)
    Attached file DTVLauncher_PV_20161207_T2.apk (2.16 MB)

  55. @vvv
    Add modified version!
    Please re-upload, thanks

    (th_dtv_PV_20161207.apk) + added two more points in the timing infobannera timeout (1 s and 2 s) at the request of esegan

  56. @Jonas
    Hi jonas,
    I have a diseqc cascade switching. from reciever to diseqc 1.1 switch after that diseqc 1.0 switch than LNB.

    with dreambox I can configure in advanced options. do you know if I can do here the same?

    better DVB application with better configuration options would be a grate to have

  57. How to set up motor setting with usals on k2 pro
    Is it possible to move the dish manually via remote and find satellites that way?

  58. There is a new Version of the Malaysk-Customfirmware:
    Version 2.8 of 12/18/2016
    + Fixed problem with Google Play authorization
    + Added a choice of aspect Pan&Scan and Combo (Thanks _sm0ke_)
    + Added a choice of visiting infobar 1-2-3-5-7-10-15-20 seconds.
    + Fixed launcher NewLauncher
    + By correcting the little things.
    Download Version 2.8:
    https://yadi.sk/d/a25D7wiW342DxE

  59. NEW-KIII-Pro-S912-Combo
    Processor: Amlogic S912, 1.5 GHz (up to 2.0 GHz), 8 cores, A53.
    GPU: Mali T820MP3 (3 core) to 750 MHz.
    Memory: 3GB of RAM DDR3
    Flash: eMMC 16 gigabytes
    MicroSD: up to 32GB.
    USB 2.0: 4
    OS: Android 6.0
    Tuner: Optional DVB-T2 / DVB-S2 / DVB-C. Hybrid tuners combine the two standards.
    HDD / flash: external USB 2.0, FAT32, exFAT, NTFS, EXT3 / 4th
    LAN: 1000/100 Mbit
    HDMI: 1x 2.0a (4K 60 hz)
    Support: H. 265 / HEVC.
    EPG supports
    HbbTV: no. Must install applications for Android
    For DVB-S2 missing CI / CA slot for the decoder cards. Channels can be decoded using the CCcam emulator. Just enter the IP address of the server name and password.
    https://www.alibaba.com/product-detail/S912-Android-combo-receiver-dvb-s2_60578225473.html

  60. eliasf :
    Videostrong seem to have a new model in plan, the kiii pro with the s912 and 3GB ram. Can’t find it at a retailer anywhere though, only some vague references for it on wholesale at alibaba. Do you think it’s worth to wait for it to become available and get that one instead or will the s905 vs s912 and 2 vs 3 GB ram not make any significant difference? http://www.videostrong.com/productshow.asp?id=924&sid=248

    At last, a DVB-S2 box which supports Gigabit LAN!! I have been looking for something like this for six months. Now I know what I’m looking for, the only problem is how to get hold of one.

  61. Hello
    in dtvLauncher of malaysk the icon of DVB-S2 is instead of the DVB-T2 icon.
    for this reason, operation of dtv is reversed
    Sorry for my bad English

  62. OMG, from the url,
    they provide CCCAM account services with selling discount price.

    we now also provide CCCAM account services,
    and if you need, Please kindly check with us,
    and bundle selling with discount prices.
    To know more on our ccam account,
    you can click Cam Cline( For Italy customers mainly)
    or Eurobest ( UK, Ireland, France, Spain, Germany, etc )

  63. Hi. I would like to ask, have someone of us a working SD version of LE, what can handle the S2-tuner with CCCAM, i would like to try this one but i use nor Malaysk ROM and for me it is ok, i just want to have a beter TV experience, because the DTV is not the best 🙁

  64. @Natalor
    But you need to have a monitor with speakers or you have to connect a headphone (or other sound device) to the box.

  65. I have k2 pro , DTV app need some modifications , libreelec is very slow in scanning , and slow in previewing channels , i tried enigma2 in vitmod os v2 but it has many errors , what is the best rom or app to run dvbs2 ?

  66. if we have speakers connected through the analog port we have loud hissing sounds when we turn off the box.
    Does anyone know if we can fix it with some modification?

  67. @anotherone
    Does it only happen when you turn off for a very short time? Or does the sound continue all the time after you turn the box off? The former would probably require some software modifications, while the second can be mitigated by physically lowering the speakers volume, and increasing the TV box volume.

  68. The sound is very very loud.
    It is happening in 2 different kii boxes I bought within 3 months.
    it is happening always and only when I turn off the box .
    About the time it is continuously not only after turning off the box.
    The only difference is after a while maybe is became a little softer but is really loud and you have to close the speakers or to unplug the 3.5 or to cut off the electricity in the kii.

  69. New versiom of Malaysk firmware
    Version 3.0 of 02/25/2017
    + Updated Google Services
    + New Boot Animation
    + Visually redesigned infobar in DTV application
    + Changed launcher NewLauncher, you can now change the program to run on the main icons (which in the mid – high)
    + Changed the status bar and adds it off button – reload.
    + Added new settings for the display of hours in the status bar (located under Settings – System – Setting the clock and date) is now possible to change the layout, color, date, seconds, size and so on..
    + Added new settings statusbare gradient (found in Settings – System – Polat gradient) You can put any color (two – 4 colors) in the status bar.
    + Other settings under Settings – System.
    + New app to clear the memory (in the launcher NewLauncher).
    + Many other fixes and additions.

    Download Version 3.0: https://yadi.sk/d/ooSNl01e3Earb2

  70. I am trying to update but I can not.
    I have rge classic problem.. “security check failed”.

    As I remember “cnxsoft” in “ki” thread told that the size in the Sd card is different after the unzip and this is the problem.

    I do not remember how I had overcome this problem last time so I downloaded 2 times and I unzipped to the sd through the es file explorer, rar and through a windows pc without solving the problem.

  71. Just bought the K II Pro from a popular retail site unfortunately I’m having issues with it.
    Sometimes it boots quickly other times I have to wait a minute with no video before I see the AMLogic logo.
    On powering down I have loud white noise coming out from the AV audio output.
    DTV application has lip synching issues for both SD and HD content, DVB-S2 reception was poor when compare to my old Technomate 1000D, only a few transponders worked (tested with Hotbird 13E).

    Will a firmware update resolve some of these issues?

    Also where can I find latest updates they don’t appear to be available from the Videostrong website?

  72. Forget it my box is going back I believe it’s defected as it’s now randomly hanging on video playback as well.

  73. New versiom of Malaysk firmware
    Version 3.5 of 28/02/2017
    + Disable the signature verification in applications
    + Disabled integrity checking and version APK
    + Increase the volume level to 30 (was 10), it can now be more finely adjust the volume level.
    + Fixed a volume bar (there was a superposition of two images)
    + Added files for remote control and mouse gyro
    + Added button to clear the background processes and memory available to display the shutter recent applications (can be disabled in Settings – System)
    + Fixed yellow (it was blue) icon in the DTV application.
    + Many other fixes and additions.
    PS: I would just note: It is recommended setting for those who modified the device about the cooling. On the other are the brakes when the CPU temperature rises above 84 degrees (in the firmware is a program for measuring temperature).

    Download Version 3.5: https://yadi.sk/d/SDLyU9Qd3EoAA9

    The download is temporary not possible because of “File download limit exceeded”. We have to be patient.

  74. it is still the 3.5 Malaysk firmware from xda detected as virus like the 2.8 and the 3.1 version?

  75. Is there a connection between Video strong and Acemax?

    Some of the products sound the same although ACEMAX KIII PRO S912 Hybrid TV Box has 3GB ram.

    They also have a unbranded Khadas Vim style device listed?

  76. in version 2.8 it was the “mbrowser.apk” with advertising
    Malaysk answered to this problem on 4pda board:
    This ad from the Chinese browser. When assembling the firmware it slips back (the only program that correctly romhelper collects firmware) trying to get rid of this browser – did not work (and internet disconnected, etc. – do not know where his program is inserted in the assembly of the firmware). Nothing critical. Simply browser with advertising. You can simply delete it after installing the firmware root explorer-om.
    I did a check on version 3.5 with cm security antivirus. The “full keyboard app” was found as dangerous/trojan when activated. So I simply uninstalled the app. I didn’t use her anyway.

    1. in Malaysk firmware does the included “equalizer” work?
      Did you try other similar apps like “Viper4Android” work?

  77. Theguyuk :
    Is there a connection between Video strong and Acemax?
    Some of the products sound the same although ACEMAX KIII PRO S912 Hybrid TV Box has 3GB ram.
    They also have a unbranded Khadas Vim style device listed?

    Acemax is a distributor for the videostrong devices.

  78. @popking
    If you don’t like to wait, like me, then you simply install your own Yandex.Disk and download the firmware to it. From there you can download to your PC.

  79. Hello,

    I own this KII Pro.
    I have installed the latest version of stock firmware from 2016-12-19 (same issue with Malaysk firmware 2.8 and 3.5).

    I have problem with the sound when I watch HD channels with the terrestrial tuner DVB-T2. The sound jumps every 30 seconds by issuing a “bleep”.
    It is very unpleasant.

    My system setting for audio is PCM because it is the only mode that allows to broadcast the sound of the French channels (EAC3).

    I also turn on and off the antenna power and it does not change anything.

    The channels signal is 99% and the quality is 99%.

    Are you aware of this problem?
    Is a future update planned to solve this problem?
    Or is there an application that can solve this problem?

    Thank you for your reply, otherwise it is a super product!

  80. @clementio
    We are not the manufacturer of the device, just a blog reporting about various devices. VideoStrong made KII pro.
    Anyway, I’m surprised you can get any audio at all from a stream with EAC3 audio using the DTV app, since the Dolby license is not included. This would only work using an AV receiver + HDMI or /SPDIF audio pass-through.

  81. @cnxsoft
    It works, I use HDMI for the picture on my TV Smasung and SPDIF for the audio on my Home Cinema Denon.
    I only have this “bleep” issue (It drives me crazy…) and I don’t know how to fix it (but I haven’t audio/picture desynchronisation issue like other people).

    I tried Viper4Android to maybe resolve the issue.
    I can install the driver on first load. But when I reboot and I launch the app, the driver status is KO (all is NO)…
    Any idea?

      1. I tried with 3 versions of the firmware : Stock, Malaysk 2.8 and 3.5. The issue is the same.

        Viper is included with Malaysk firmware but not busybox.

        I read in the installation instruction of Viper that busybox is needed.

        So I will try to install busybox and Viper.

        I will tell you if it solves the issue.

  82. New version of Malaysk firmware: Version 4.0 of 03/03/2017

    Now you can fully customize infobar and beyond. Redesigned nearly all DTV application in graphical form.
    You can completely disable infobar, disable or enable the individual elements in it, set as one background color, and set the gradient of two different colors, change the color of all the elements and inscriptions and so on. D. That is, you can modify some 100,000 species graphical view.

    Download-Link and and instructions here:
    https://forum.xda-developers.com/android-stick–console-computers/amlogic/rom-custom-firmware-kii-pro-dvb-s2-t2-t3474736

  83. I tried to install Viper4android but it always fails.
    Can you give me your detailled installation instructions if it works for you on the KII Pro?
    Thank you.

    1. I can not get viper4a to work in 2.4
      it says “neon not enabled” etc.
      if you find solution write it here.

  84. New version of Malaysk firmware: Version 4.0 of 03/03/2017
    Another link with no limits and the file is only 411 mb as it contains 3 file only ,
    factory_update_param.aml
    recovery.img
    KII_PRO_T2_S2_03_03_2017_v_4_DTV.zip
    and the other 2 folders -kodi and kodi contents – were removed .
    http://suprafiles.net/v9mseseeh4s5

  85. @anotherone
    I can’t install Viper4Android on stock fimrware 2016-12-19, on Malaysk 2.8 and 4.0…
    I have an issue with the sound of the DVB-T2 tuner. The sound does a “ddzziiit” every minute (Am I the only one?).
    It’s very unpleasant!
    I hope that viper4android would fix this problem.
    Is the sound very low in DTV application on DVB-T2 for you (in others applications it is normal)?
    How to boost the volume only in DTV application (“hidden” setting or config file?)?

  86. just leave poor android and switch to LibreELEC – whole DVB driver was re-writen by @alf and used opensource from CrazyCAT, now working DVB-S2 with all TP (including some problematic, and S2 – 4k) DVB-T and even DVB-C 😉

    Here latest version with tvheadend
    https://forum.libreelec.tv/thread-2722.html

    all testeted and working fine !!! tuner now in linux is faster and good scan all freq.
    Kodi stable, and proper switch tv resfersh to 23.98 (not like linux) and proper working audio passthrough including
    Dolby Atmos 😉

  87. I switch to libreelec with my KII Pro.
    The DVB-T2 tuner scans all my channels (in France).
    I can watch TV with Kodi on libreelec!

    BUT my sound issue is always here…
    The sound does a “ddzziiiit” every minute!

    Finaly, I think that is a hardware issue with the tuner.
    I’m very desapointed…

  88. @Clementio
    Can you try to record live TV with the box, and then play it back on your computer? If it still happens it could be a tuner problem, if not, that’s likely another issue, maybe some interoperability issue between KII Pro and your “Home Cinema Denon”.

  89. @cnxsoft
    I recorded live TV and I play the file in VLC on my computer.
    And the “ddzzziiiit” sound is recorded in the file…
    Where can I find only the tuner part of the KII Pro ?
    Thank you.

  90. @Clementio
    At least we know the problem is somewhere in the recording process inside the box. It could be tuner, or the way the audio is processed. You’d probably need the source code to try to locate the issue, but it’s not available. It happens both in DTV app in Android and LibreELEC, so it could be a driver or hardware problem.
    There’s little hope to fix this in Android, but maybe @piotrasd could help you debug this in LibreELEC, or maybe better, report your issue on LibreELEC forums explaining your hardware setup, and with some of the steps you’ve taken to locate the source of the audio issue.

  91. Buggs with NEOTV+ iptv application. Channels H265 work only after several attempts. Is there is a solution with the codecs, or we need an update to fix the problem.

  92. Florin use latest custom firmware of Malay for working with USALS. For Ro use (Lon E 027.** and Lat N 045.**) with 0 in front. May be original firmware have a wrong table of satellites.

  93. @omur
    Make sure you only have one storage device connected for firmware update, no other micro SD card or USB flash drive/HDD. In some case, it might help if you delete your other files in the drive.

  94. Version 5.0 of April 2, 2017
    1. Added support for Picons ( images Channel )
    2. Added to the TV Settings item autoframerate
    3. Added support for scripts in Init.d
    Now to the Picon. On NTV + 36 satellite, I remade them and lay them out. For other satellites, your help is required. In order for the picons to show up, you need to copy the Picons folder into the internal memory of the receiver to the root of the disc. The path will look like this – mnt/sdcard/picons/. To make the picon appear on a specific channel, the name of the png file must have the same name as the channel. For example channel name First HD, then the picture name should be such First HD.png To make it much easier to fill your backup channels in the Channel Editor and just copy the name of the channel to the picture. Picks are recommended with a resolution of 220X132, and then put it on this site, and I’ll add them to my main message.
    Here are the ready Pikons for NTV + 36 degree satellite – Picons.rar
    Download Version 5.0:https://yadi.sk/d/iZXx2zz73GZmau

    Somebody got a alternative download link?

  95. Breaking – New Malaysk SW on the go.

    Version 5.1 of May 28, 2017
    1. The default picture in the display of pics in the DTV application is deleted. (You can set transparent picos)
    2. The picture of the displayed picos is enlarged.
    3. Replaced butanimation.
    4. Added what did Pily_W (for which many thanks to him)
    Namely (not all are added)
    Boot with init.d support, root shell, more than 100 hid drivers
    SAMBA server, copy speed ~ 11.5MB / s, minimal assembly, no GUI (settings are in /system/usr/data/samba/smb.conf, login: admin, pass :admin)
    MSG is a very useful micro application for displaying dialog boxes and notifications from under the shell
    The autoframerate script and LED display scripts output toasts via MSG:
    Box loading (flashing LED to bootcomplete), temperature (t> 85 ° C – LED SOS flashing), pseudo-standby mode (located in the “New Launcher” lunar – red LED is on)
    5. Added control of the aero mouse, here’s a (removed 404 link).
    If you have version 5.0 of the firmware, then you can flash without losing data – read ReadME.txt – it lies with the firmware in the archive.
    Download Version 5.1:https://yadi.sk/d/TDUBP7y43JbZgh
    If you like my firmware and think that I’m wasting a lot of time to improve the firmware, then “Donate to Me”

  96. Version 5.2 of May 30, 2017
    1. The default picture in the display of pics in the DTV application is deleted. (You can set transparent picos)
    2. The picture of the displayed picos is enlarged.
    3. Replaced bootanimation.
    4. Added what did Pily_W (for which many thanks to him)
    Boot with init.d support, root shell, more than 100 hid drivers
    SAMBA server, copy speed ~ 11.5MB / s, minimal assembly, no GUI (settings are in /system/usr/data/samba/smb.conf, login: admin, pass :admin)
    If you have a different workgroup name on the network on behalf of WORKGROUP, then go to /system/usr/data/samba/smb.conf and change the name in the line “workgroup = WORKGROUP”
    MSG is a very useful micro application for displaying dialog boxes and notifications from under the shell
    The autoframerate script and LED display scripts output toasts via MSG:
    Box loading (flashing LED to bootcomplete), temperature (t> 85 ° C – LED SOS flashing), pseudo-standby mode (located in the “New Launcher” lunar – red LED is on)
    5. Added control of the aero mouse,
    If you have version 5.0 of the firmware, then you can flash without losing data – read ReadME.txt – it lies with the firmware in the archive.
    Download Version 5.2: thanks for the owner of this modded firmware
    https://openload.co/f/Nzvi48XkoDQ/Malaysk_KII_PRO_T2_S2_30_05_2017_v_5.2_DTV.rar

  97. Version 5.5 of 02/07/2017
    Check who’s with the new WiFi!
    This firmware works without problems and with the old WiFi module – I personally checked it myself.
    + The launcher is modified.
    + Added provider ID
    For example :
    112 – NTV +
    253 – Tricolor
    + Fixed channel panel.
    http://suprafiles.co/dq67cmiiqw4o

    thanks to Malaysk

  98. I have an old version of “malaysk” and I am trying to find an Equaliser app that works but I can not find something.
    in the last versions does some Eq app or “Viper” working?

  99. How to have a good image on SD channels? Damage to have an amlogic processor 905 and give a bad image on SD channels.

  100. Io ho acquistato con l’ultimo firmware citato di ottobre si connette ma non decodifica il segnale che bisogna fare ?
    Ho messo parecchi firmware sempre lo stesso qualcuno può aiutarmi grazie

  101. I welcome colleagues will anyone help me find firmware Zeepin kII pro because I did an update and blocked the device brick I tried to upload USB_Burning_Tool different firmware from many sides but pops up error
    [0x10105002]Romcode/Initialize DDR/Read initialize status/USB Control setup error
    I read somewhere on the forum that this is the fault of the wrong software
    I provide a link to the device https://www.aliexpress.com/item/Zeepin-KII-Pro-DVB-T2-S2-Quad-core-2GB-16GB-Android-5-1-Smart-Set-Top/32791875884.html

Leave a Reply

Your email address will not be published. Required fields are marked *

Boardcon Rockchip and Allwinner SoM and SBC products
Boardcon Rockchip and Allwinner SoM and SBC products
