ONENUTS T1 Combines Projector, Tablet, and mini PC into one Device

September 23rd, 2016 Leave a comment Go to comments

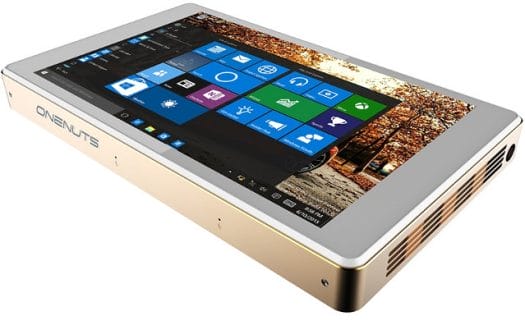

ONENUTS T1 look reminds me of GOLE1 mini PC / tablet combo, and the device also features the same Intel Atom x5-Z8300 processor. However, the 8″ display is quite bigger, and more importantly it includes a mini DLP projector.

Click to Enlarge

Click to Enlarge

ONENUTS T1 specifications:

  • SoC – Intel Atom x5-Z8300 “Cherry Trail” quad core processor @ 1.44 GHz / 1.84 GHz with Intel Gen8 HD graphics (2W SDP)
  • System Memory –  2 GB DDR3L
  • Storage – 32 GB eMMC flash + micro SD slot up to 64GB
  • Projector – 0.3″ TI DMD (DLP) + LED technology, 1280×720 resolution, 5.5″ to 81″ screen size, 300 lumens, 500:1 contrast ratio; lifetime: > 20,000 hours
  • Display – 8″ capacitive touchscreen IPS display with 1280×800 resolution (16:10 aspect ratio)
  • Video Output – HDMI 1.4 port
  • Audio I/O – HDMI, 3.5mm headphone jack, built-in speaker
  • Connectivity – 10/100M Ethernet, 802.11 b/g/n/ac Wi-Fi, and Bluetooth 4.0 LE
  • USB – 1x USB 2.0 host port, 1x USB 3.0 port
  • Sensor – Gravity sensor, IR receiver
  • Misc – Power button, focus knob
  • Battery – 4850mAh battery good about about 2 hours with projector using default brightness, and the system playing a 1080p video
  • Power Supply – 19V/3A
  • Dimensions & Weight – TBD

The thing is running Windows 10 Home.

windows-10-projector-mini-pc

The device is available now to resellers and distributors at an undisclosed price. You can visit Shenzhen Tomato ONENUTS T1 product page for more information.
