Meet NXP i.MX8 Processor Families: i.MX 8 for High performance, i.MX 8M for Audio/Video & i.MX 8X for Low Power

Freescale and then NXP have been talking about i.MX8 processors for several years, and this spring unveiled i.MX 8 Multisensory Enablement Kit without giving much details about the processor except it would include both Cortex A72 & A53 cores. But NXP put out a press release yesterday about “Multisensory Automotive eCockpit Platform to Advance Multimedia Experiences in Future Cars” which appears to be the same news but with different words, except the content of the PR has more interesting bits such as:

The new family, which is based on up to six 64-bit ARMv8-A technology processor cores and includes a HiFi 4 DSP, LPDDR4 and DDR4 memory support as well as dual Gigabit Ethernet with audio video bridging (AVB) capability, is designed to advance automotive dashboard graphics such as instrument clusters, infotainment visuals, heads-up displays, rear-seat screens and more. Capable of driving four HD screens with independent content or a 4K screen, the new devices introduced today include:

  • i.MX 8QuadMax which integrates two ARM Cortex®-A72 cores, four Cortex-A53 cores, two Cortex-M4F cores and two GC7000XS/VX GPUs
  • i.MX 8QuadPlus which integrates one ARM Cortex-A72 core, four Cortex-A53 cores, two Cortex-M4F cores and two GC7000LiteXS/VX GPUs
  • i.MX 8Quad which integrates four Cortex-A53 cores, two Cortex-M4F cores and two GC7000LiteXS/VX GPUs
Click to Enlarge - Source NXP and EETimes
Click to Enlarge – Source NXP and EETimes

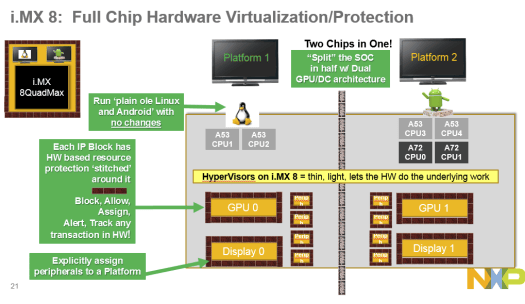

Hmm… SoCs with two identical GPUs? That’s because automotive applications often require multiple operating systems running on a single processor, with maybe one part handling the “infotainment” screen, and another taking care of the dashboard, which has to be 100% stable. This is usually handled by a software hypervisor but i.MX 8 processors can do this mostly using hardware virtualization, and does not require safety critical and non-safety critical software to share the same part of the hardware.

The new processors currently support for Android, Linux, FreeRTOS, QNX, Green Hills, and Dornerworks XEN, multiple temperature grades including automotive AEC-Q100 grade 3 (-40° to 125° C Tj), industrial (-40° to 105° C Tj), and consumer (-20° to 105° C Tj), and are fully supported on NXP’s 10 and 15-year Longevity Program. You’ll find a few more details about NXP i.MX8 processors slated to go into mass production in Q1 2017 on the product page.

However, while searching for more details about i.MX 8, I’ve come across a PDF file dated July 15, 2016 (File has now been removed), revealing more i.MX8 processor families are on the way with i.MX 8M series for audio/video applications with 4K VP9/H.265 and HDR support, and i.MX 8X series based on  ARM Cortex A35 / M4 cores for low power applications.

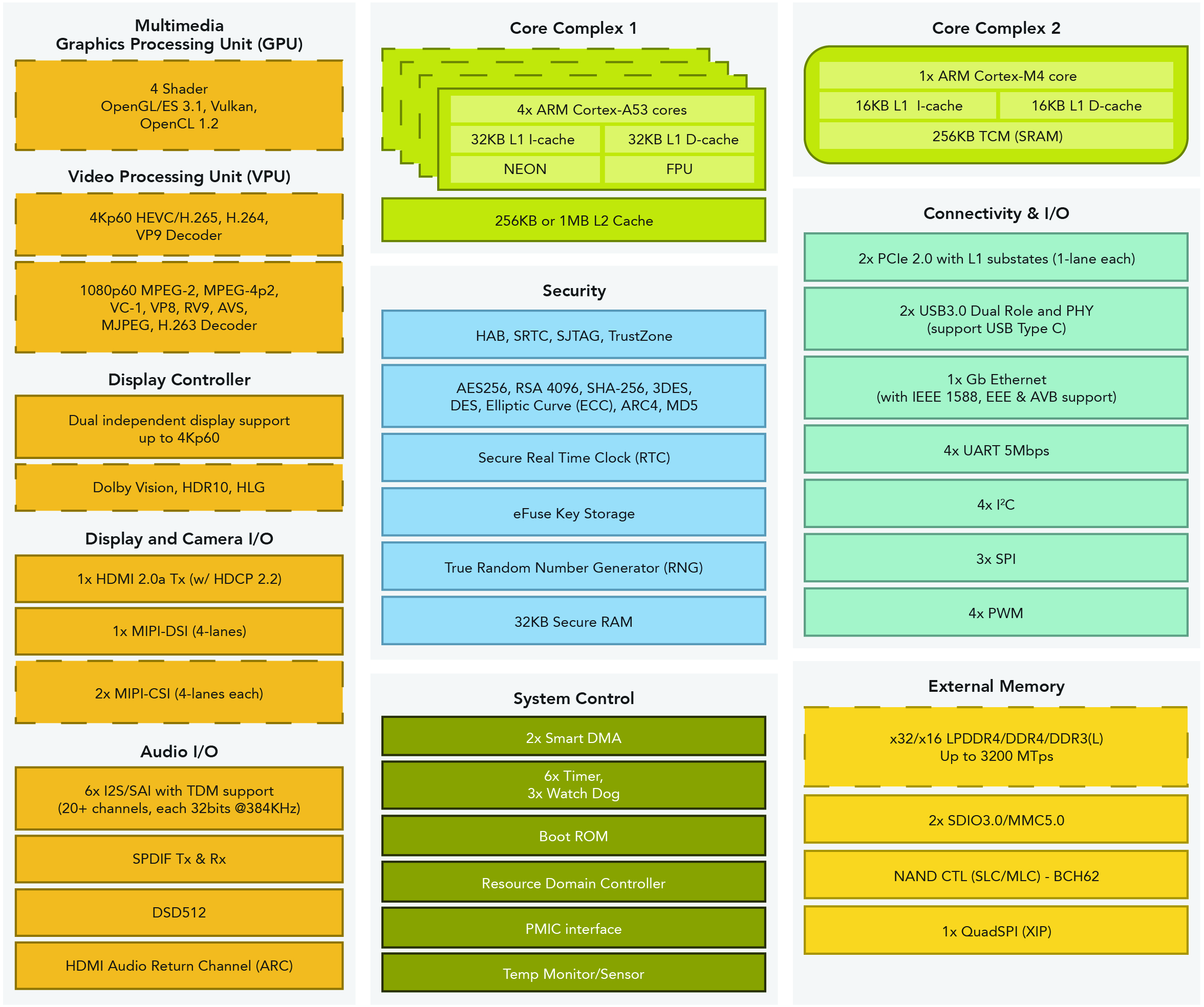

NXP i.MX 8M Block Diagram – Click to Enlarge

[Post updated on January 27, 2017 to remove 2 slides with i.MX 8X references upon NXP request, since the processor has not been released yet].

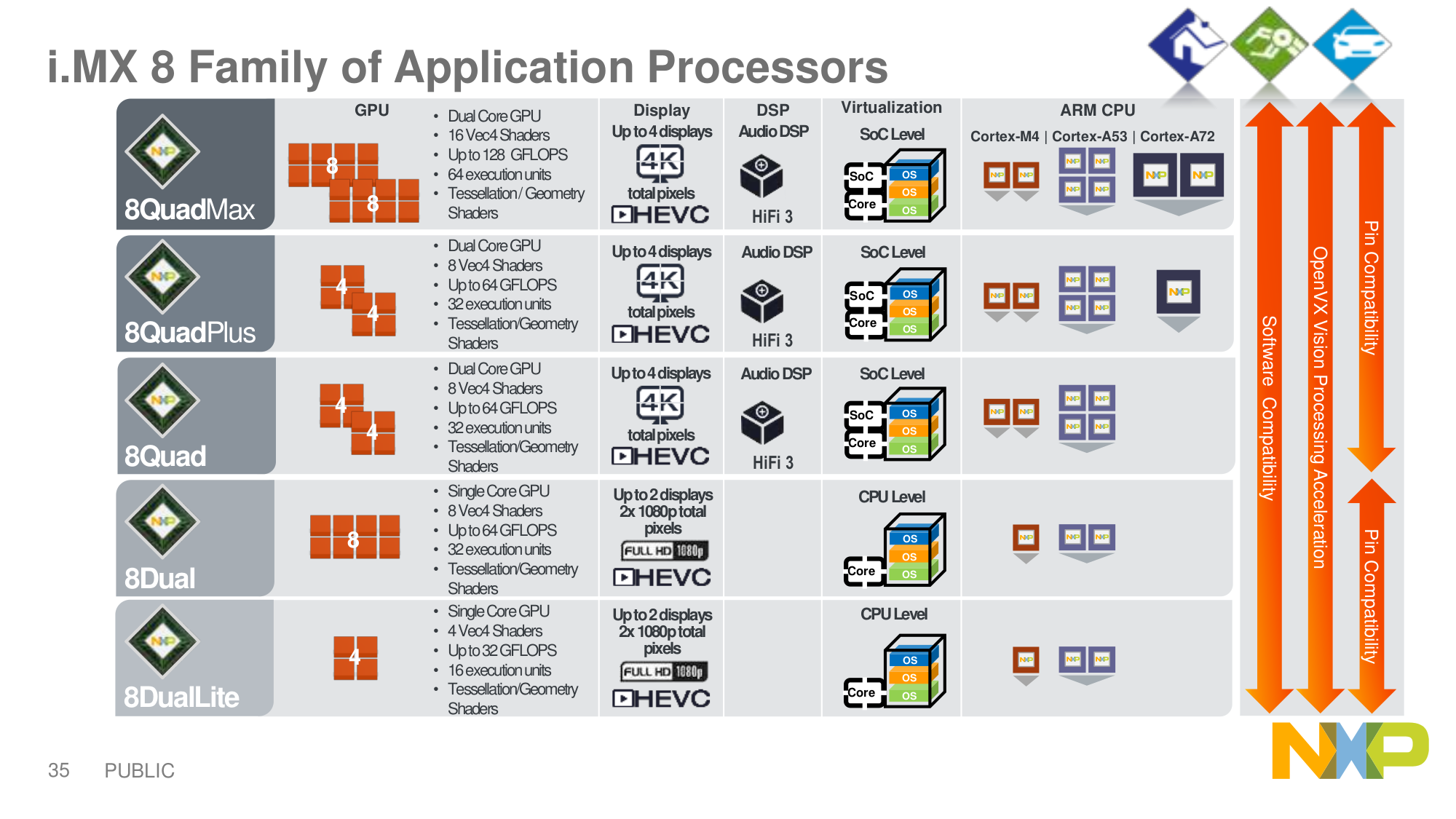

The document also informs us that two more i.MX 8 processors are planned with i.MX 8Dual and i.MX 8DualLite dual core Cortex A53 SoCs.

Click to Enlarge
Click to Enlarge

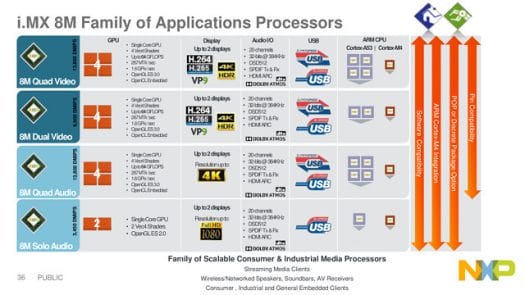

But let’s go back to i.MX 8M series with four SKUs namely 8M Quad Video, 8M Dual Video, 8M Quad Audio, and 8M Solo Audio.

Click to Enlarge
Click to Enlarge

All features one, two or four Cortex A53 cores, a real-time Cortex M4 cores, 1080p to 4K video support, 20 channels audio, USB 2.0 or 3.0 interfaces, and DTS and Dolby Atmos support. The processors will be used in streaming media clients, networked speakers, soundbars or AV receivers, or some embedded clients in consumer or industrial sectors.

NXP i.MX 8X series should first include 3 SKUs: i.MX 8QuadXPlus, i.MX 8DualXPlus, and i.MX 8DualX all powered by one to four ARM Cortex A35 cores and supporting up to 3 displays. The processors will target display and audio applications, 3D graphic display clusters, telematics and V2X (Vehicle to everything) applications.

NXP i.MX 8X is not listed on NXP website yet, but I’d assume they’d go to mass production sometimes in 2017, when they may have become Qualcomm i.MX 8 processors… More details can now be found on NXP i.MX 8 series product page for both i.MX 8 and i.MX 8M processors.

Share this:
FacebookTwitterHacker NewsSlashdotRedditLinkedInPinterestFlipboardMeWeLineEmailShare

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX Rockchip RK3588 mini-ITX motherboard

4 Replies to “Meet NXP i.MX8 Processor Families: i.MX 8 for High performance, i.MX 8M for Audio/Video & i.MX 8X for Low Power”

  1. How I am sick of this virtualizing commercial sh1t. “our hypervisors are thin…” You know what the thinnest hypervisor is needed? That, that would switch that shit off in few instructions! technology which serves the only thing – its own existence is not a technology it’s a parasitic waste.
    Well, anyway, I can only imagine how much this garbage will cost. if it will be released at all. Since now it’s going to be Qualcomm, which has its own “technology” whistles and doodles.

  2. @cortex-a72

    Virtualization just means extra instructions for the same MMUs’ virtual memory stuff you had in the x86 since the early 90s and else where since the 60s.

    It’s simply a natural evolution of the hardware:
    1. No protections.
    2. MMUs allow kernel space to protect itself from user space.
    3. Extra instructions allow a small kernel (hyper-visor) to protect itself from other kernel it launches.
    4. More instructions allow individual processes to reserve memory the kernel can’t access.
    5. (Future) hardware assisted bound checking.

    The last one is the holy grail of reliable computing. Done right, it will allow garbage collected, type-safe operating systems. When someone figures that one out, we’ll finally have a reason to stop using windows and linux and move to modern operating systems. This should happen in the next 10-15 years. We hope…
