During spring, we discovered UP Core, a tiny board powered by Intel x5-Z8350 Cherry Trail processor that promised to sell for as low as 69 Euros. But at the time, it was not available yet for purchase, and the good news is that UP has just launched a one month crowdfunding campaign on Kickstarter to raise funds for mass production, and promote the board.
- SoC – Intel Atom x5-Z8350 “Cherry Trail” quad core processor @ 1.44 GHz / 1.92 GHz (Burst frequency) with Intel HD 400 graphics @ 200 / 500 MHz
- System Memory – 1, 2 or 4 GB DDR3L-1600
- Storage – 16, 32, or 64 GB eMMC flash, SPI flash ROM
- Video Output / Display – HDMI 1.4 port, full eDP (embedded DisplayPort) connector
- Audio I/O – Via HDMI, and I2S
- Connectivity – 802.11 b/g/n WiFi @ 2.4 GHz, Bluetooth 4.0 LE (AP614A)
- USB – 1x USB 3.0 host port, 2x USB 2.0 via header
- Camera I/F – 1x 2-lane MIPI CSI, 1x 4-lane MIPI CSI
- 100-pin docking connector with power signals, GPIOs, UART, SPI, I2C, PWM, SDIO, I2S, HDMI SMBUS, PMC signals, 2x USB HSIC, CSI, and PCIe Gen 2
- 10-pin connector with 2x USB 2.0, 1x UART
- Misc – Power & reset buttons, RTC battery header, fan connector, BIOS reflash connector
- Power Supply – 5V/4A via 5.5/2.1mm power barrel
- Dimensions – 66 x 56.50 mm
- Temperature Range – Operating: 0 to 60 °C
- Certifications – CE/FCC Class A, RoHS compliant, REACH
The board supports Microsoft Windows 10, Windows 10 IoT Core, Linux via Ubilinux, Ubuntu, and the Yocto Project, as well as Android 6.0 Marshmallow. The block diagram shown in March also included an extension HAT connected to the 100-pin docking port, but we did not have many details. With the launch on Kickstarter two stackable expansion boards are available:

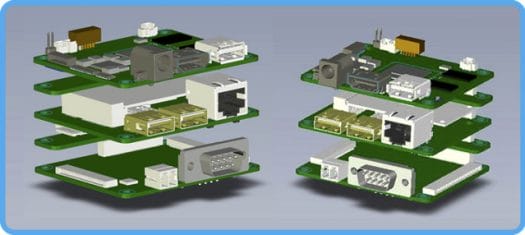

- Expansion board A [BRKH01] carrying high-speed signals: 1c2 channel PCI Express switch, Gigabit Ethernet (RTL8111G-CG / RJ45), HSIC/USB ports, uSIM card reader, SD card, etc…
- Expansion board B [BRKL01] based on MAX10 CPLD exposing low-speed signals such as RS-232/422/484, I2C, I2S, and GPIOs, as well as 12 to 24V power input
The documentation to make your own UP Core expansion board will be made available, so more are likely coming, and up to three expansion boards can be stacked under UP Core board. The company will also pay royalties to makers of expansion boards that are selected (by UP community) to be sold on their store.
A chassis for UP Core and its carrier boards is also available in your prefer to keep the boards in an enclosure.
The company goal is to raise at least 10,000 Euros, but they should reach a much higher level once the campaign is completed. Some of the most interesting rewards are:
- 69 Euros (early bird) then 75 Euros for UP Core with 1GB RAM, 16GB eMMC
- 85 Euros (early bird) then 95 Euros for UP Core with 2GB RAM, 32GB eMMC
- 119 Euros (early bird) then 129 Euros for UP core with 4GB RAM, 64GB eMMC
- 125 Euros starter pack with UP Core with 2GB RAM, 32 GB eMMC, aluminum chassis, AC adapter, and WiFi+Bt antenna
- 189 Euros dev.pack with UP Core with 4GB RAM, 64GB eMMC, A & B expansion boards, AC adapter, and WiFi+Bt antenna
They also have variations up to the 225 Euros super pack with comes with the 4GB/64GB board, the two expansion boards, three aluminum chassis, and accessories. Shipping adds 16 to 27 Euros depending on the destination country, and delivery is scheduled for August to October 2017 depending on the selected reward.
