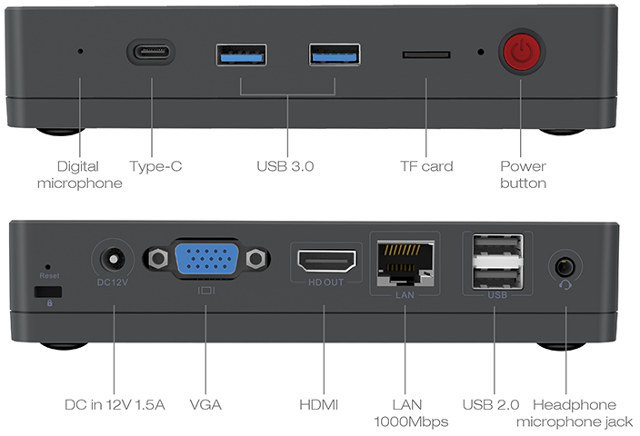

While many Apollo Lake mini PCs are sold by Chinese manufacturers, few of come with up to 8GB RAM, and include an internal 2.5″ SATA bay. But Beelink S1 mini PC does, and it also include an M.2 SSD slot, so you can have fast storage for the operating system using an SSD, and cheap and larger storage for your data with the SATA bay. If you are a fan of voice commands, a built-in microphone working with Cortana is also included.
- SoC – Intel Celeron N3450 quad core Apollo Lake processor @ 1.10 GHz / 2.20 GHz (Burst frequency) with 12 EU Intel HD graphics 500 @ 200/700 MHz (6W TDP)
- System Memory – 4 or 8 GB DDR3
- Storage – 64 GB eMMC flash, internal SATA bay, M.2 SSD slot up to 512 GB, micro SD card slot up to 128GB
- Video Output – HDMI 1.4 up to 4K @ 30 Hz, VGA port
- Audio – HDMI, 3.5mm headphone jack, digital microphone
- Connectivity – Gigabit Ethernet, dual band 802.11 b/g/n/ac Wi-Fi, and Bluetooth 4.0 (Intel 3165 WiFI chip)
- USB – 2x USB 3.0 host ports, 2x USB 2.0 host ports, 1x USB type C port (not indication of what it is capable of yet again…)
- Misc – Power button, reset pinhole, Kensington lock
- Power Supply – 12V/1.5A
- Dimensions – 16 x 13.45 x 3.20 cm
- Weight – 407 grams
The specifications are quite close to the ones of Beelink AP34 Ultimate, except for 2.5″ SATA drive support, the microphone, and it includes both USB 2.0 and USB 3.0 ports, as well as a USB type C port. As usual, the company did not use logo, nor did it find it necessary to explain the capability of the USB type C port. So it’s probably safe to assume video output is not supported for example.
Jean-Luc started CNX Software in 2010 as a part-time endeavor, before quitting his job as a software engineering manager, and starting to write daily news, and reviews full time later in 2011.
9 Replies to “Beelink S1 Mini PC Comes with Up to 8GB RAM, Supports M.2 SSD & SATA Storage, and Cortana via a Built-in Microphone”
Can I download all the drivers needed in order to do a clean OS install myself?
Looks like an interesting, full featured PC but without drivers it’s a no-go for me.
I have been surprised at Microsofts pricing over the years and how it effects cost of products, I now buy products without an OS and download Windows 10 ISO from Microsoft and buy a Producty Key on a well known auction site. I have several happy acquaintances running cost effective Windows 10 machines.
1.5A with spinning rust inside?
Will it have linux driver support? Nevermind, at that cost I’ll just get a NUC.
@M it’s a 2.5″ hdd so a 18W psu should be able to power the board and the drive.
According to this http://www.cnx-software.com/wp-content/uploads/2016/09/Windows_10_License_Entry_Level.png
is no HDD (SATA?) allowed with cheap Windows 10 license?
MeLE appears to follow Microsoft license terms, and for example in MeLE PCG03 Apo they use a 32GB eMMC flash, and offer M.2 slot too. They explained to me Windows could only be installed in the flash, and not on an M.2 SSD.
There upcoming MeLE PCG35 Apo is only slightly cheaper ($20 more) and come with a SATA bay, so it has to be installed with the same discounted Windows 10 license too.
This leads me to the conclusion, the “no HDD” requirement means Windows cannot be installed on an hard drive, and maybe the mini PC cannot be sold with HDD, but a SATA interface can be provided. It’s also possible Microsoft altered the conditions since the time of that post.
I prefer the NUC too, but RAM is additional expense. However, NUC (depending on the version) is spec-wise better with more I/O.
why use emmc at all
will make it look slow
m2 will also be slow cause they probably use crappy controller no faster than msata
beelink are knocking out intel boxes a lot lately and dropping em just as quick
usb 2 and hdmi 1.4 tpp
its 2017 not 2007
at this price aint gonna sell
