UFS 3.0 Embedded Flash to Support Full-Duplex 2.4GB/s Transfer Speeds

All my devices still rely on eMMC flash for storage, but premium smartphones, for example, make use of UFS 2.0/UFS 2.1 flash storage with performance similar to SSD, with Samsung UFS 2.0 storage achieving up to 850MB/s read speed, 260 MB/s write speed, and 50K/30K R/W IOPS. UFS 3.0 promises to roughly double the performance of UFS 2.0/2.1 with transfer rates of up to 2.4 GB/s, and separately, the UFS Card v2.0 standard should deliver UFS 2.1 performance on removable storage.

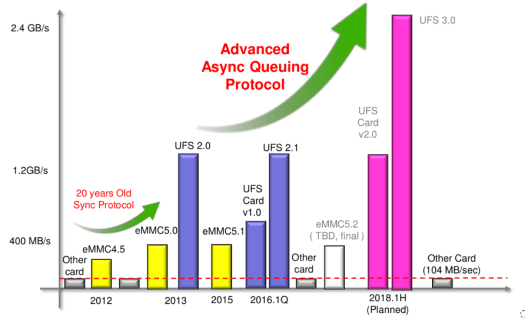

Image Source: Next Generation of Mobile Storage : UFS and UFS Card – Click to Enlarge

Several Chinese and Taiwanese websites, including CTimes and Benchlife, have reported that companies have started getting UFS 3.0 & UFS Card v2.0 licenses from JEDEC, and Phison is working on a controller to support both new standards, and scheduled to launch in 2018.

Premium smartphone SoC are only expect to support UFS 3.0 in 2019 and beyond, and hopefully by that time eMMC will have been replaced by UFS 2.0/2.1 in entry level and mid range devices. The outlook for UFS cards is less clear, as I’ve yet to see a product equipped with a UFS slot.

Click to Enlarge

Based on a recent presentation at the Flash Memory Summit, (typical) embedded storage capacity will also increase to 32GB for IoT / multimedia applications, 256GB for smart home products and drones, 512GB for mobile devices, and over 1TB for automotive applications.

Via Liliputing
