STMicro Introduces Ultra-efficient STM32L4+ Series MCUs with Better Performance, Chrom-GRC Graphics Controller

Orange Pi Development Boards

STMicroelectronics has announced an upgrade to their STM32L4 series Cortex-M4 micro-controllers with STM32L4+ series upping the maximum frequency from 80 MHz to 120 MHz delivering up to 150 DMIPS (233 ULPMark-CP) , and ultra low power consumption as long as 33 nA in shutdown mode without RTC.

The new family also adds Chrom-GRC graphics controller (GFXMMU) that can handle both circular and square TFT LCD displays together with a MIPI DSI interface and displayer controller, making it ideal for wearables, Chrom-ART 2D accelerator for better graphics performance, two Octo SPI interfaces, and more memory (640KB max) and storage (up to 2MB flash).

STM32L4+ Block Diagram (Parts in Red Show New/Updated Features vs STM32L4)

If you want to know all differences between STM32L4 and STM32L4+, and/or learn how to use peripherals, STMicro has setup a nice free STM32L4+ online training page, which allow you to do just that either by downloading PDF documents, or following e-Presentations with slides and audio.

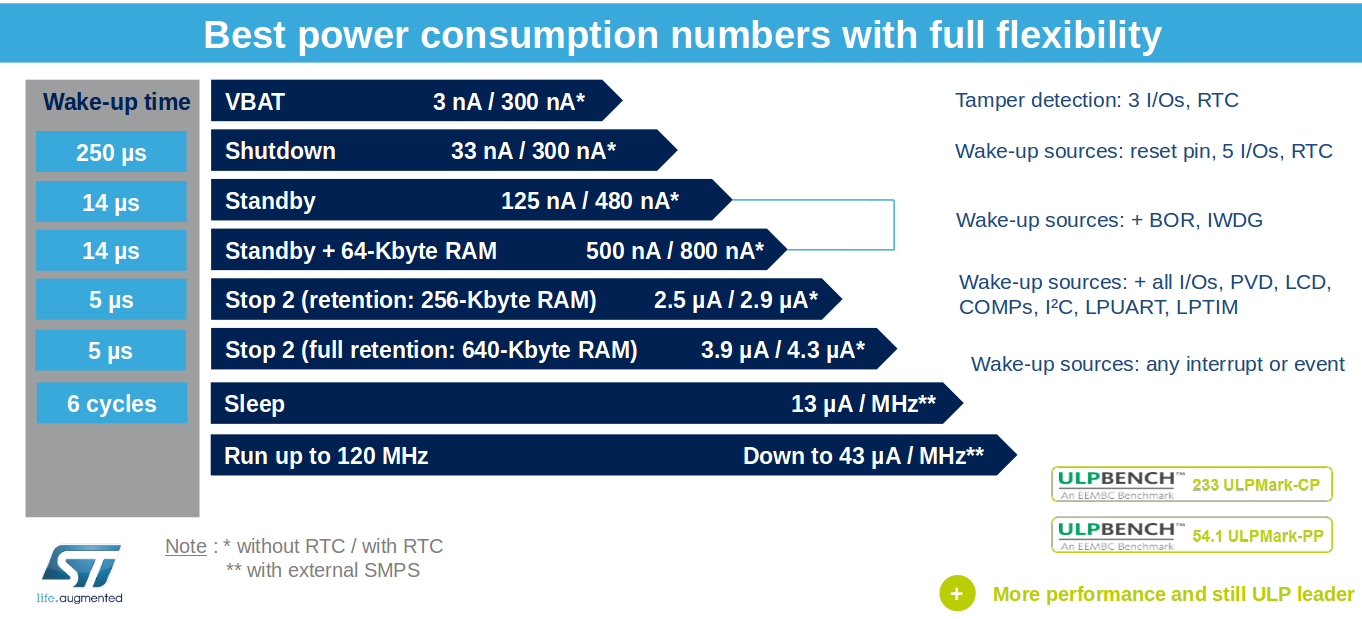

STM32L4+ appears to have the same power modes as STM32L4, except that it can turn SRAM3 on or off in STOP 2 mode.

Click to Enlarge

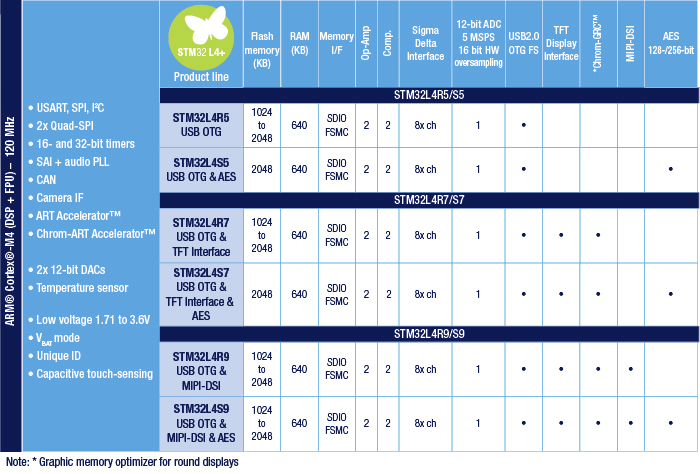

STM32L4+ series are available in different lines: STM32L4R5/S5, STM32L4R7/S7 (with TFT interface) and STM32L4R9/S9 (with MIPI‐DSI and with TFT interface) with details provided in the table below.

STM32L4+ series are software compatible with STM32L4 series, and mostly (but not entirely) pin-to-pin compatible.  Developers can use the same STM32 tools such as ST-Link and STM32CubeL4 embedded software, and three development board have been launched to get started with the new MCUs:

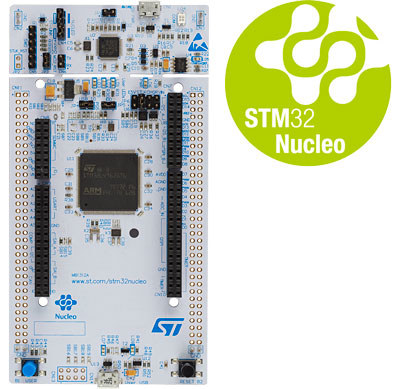

  • For headless development – NUCLEO-L4R5ZI STM32 Nucleo-144 development board with STM32L4R5ZI MCU. Supports Arduino, ST Zio and morpho connectivity ($19)

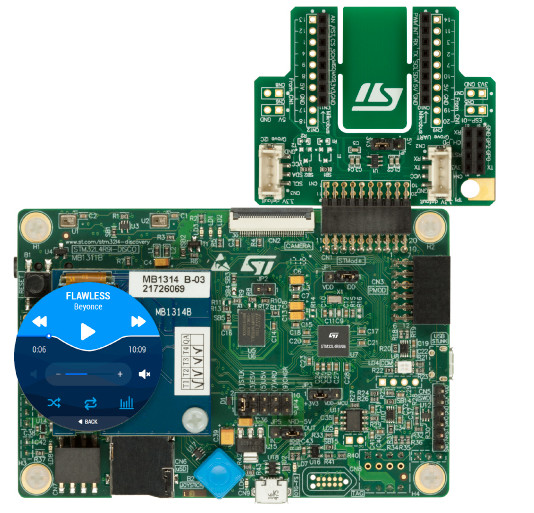

  • For wearables with round display – 32L4R9IDISCOVERY Discovery kit with STM32L4R9AI MCU ($89)

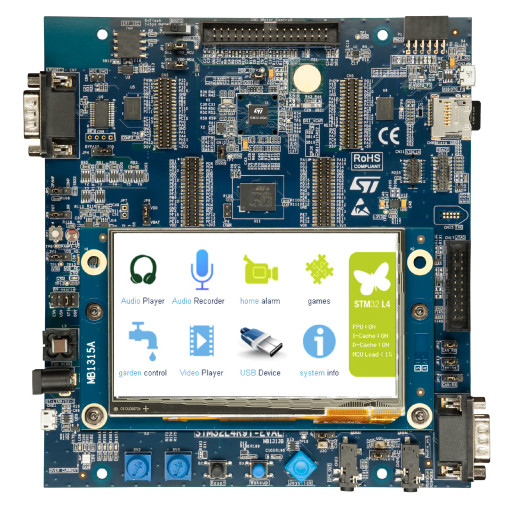

  • More complete kit with both a 4.3″ LCD TFT display and a 1.2″ MIPI DSI round LCD display – STM32L4R9I-EVAL Evaluation board with STM32L4R9AI MCU ($320)

STMicro STM32L4+ devices are already in production with price starting at $6.52 for orders of 10,000 pieces. Visit the product page for more information.

Via Time4EE
