Earlier this month, I listed SoliRun MACCHIATObin networking board as one of the top 5 most powerful ARM boards in 2017/2018, thanks to its fast quad core Cortex A72 processor, support for up to 16GB RAM, three SATA interfaces, and network connectivity options with several Ethernet copper/SFP interfaces up to 10 Gbps.
The problem with powerful boards is that they can be expensive, and the original MACCHIATOBin (Double Shot) board sells for $369 and up. The good news is that SolidRun has just launched a cheaper version called MAACHIATOBin Single Shot with a quad core Cortex A72 processor limited to 1.6 GHz (instead of 2.0 GHz), and the two 10 Gbps interface are only accessibly through SFP cages, and not Ethernet copper (RJ45) ports anymore.

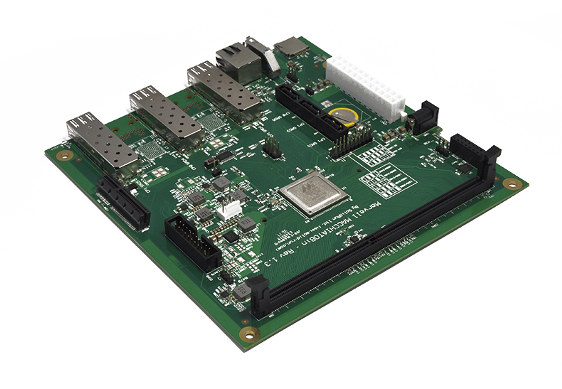

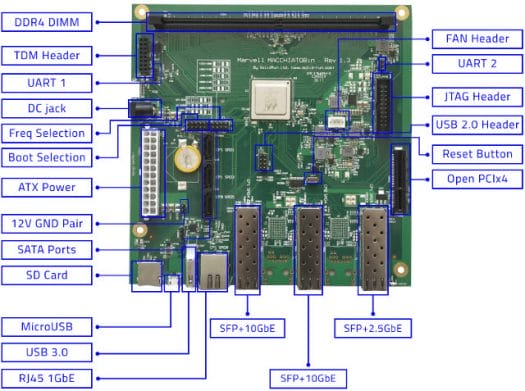

- SoC – ARMADA 8040 (88F8040) quad core Cortex A72 processor @ up to 1.6 GHz with accelerators (packet processor, security engine, DMA engines, XOR engines for RAID 5/6)
- System Memory – 1x DDR4 DIMM with optional ECC and single/dual chip select support; up to 16GB RAM
- Storage – 3x SATA 3.0 port, micro SD slot, SPI flash, eMMC flash
- Connectivity – 2x 10Gbps Ethernet via
copper orSFP, 2.5Gbps via SFP, 1x Gigabit Ethernet via copper
- Expansion – 1x PCIe-x4 3.0 slot, Marvell TDM module header
- USB – 1x USB 3.0 port, 2x USB 2.0 headers (internal), 1x USB-C port for Marvell Modular Chip (MoChi) interfaces (MCI)
- Debugging – 20-pin connector for CPU JTAG debugger, 1x micro USB port for serial console, 2x UART headers
- Misc – Battery for RTC, reset header, reset button, boot and frequency selection, fan header
- Power Supply – 12V DC via power jack or ATX power supply
- Dimensions – Mini-ITX form factor (170 mm x 170 mm)
They just did not solder the 10 Gbps Ethernet connectors and related chips, and used some ARMADA 8040 SoCs that may not have passed QA @ 2.0 GHz, but work fine up to 1.6 GHz.
The board supports mainline Linux or Linux 4.4.52, buildroot 2015.11, Ubuntu 16.04.03 LTS, OpenWrt, and more. Software and hardware documentation can be found in the Wiki.
Just like it’s predecessor, the board ships with either 4GB or 16GB DDR4 memory, an optional 12V DC/110 or 220V AC power adapter, and an optional 16 GB micro SD card. The changes made bring the price down to $269 for the 4GB RAM version of the board, exactly $100 cheaper than the original “Double Shot” version.
