HiKey 960 Android Development Board Gets a 4GB RAM Version for $250

Hikey 960 development board is one of the most powerful Arm boards on the market thanks to Huawei/Hisilicon Kirin 960 octa-core processor with four ARM Cortex A73 cores, four Cortex A53 cores, and a Mali-G71 MP8 GPU, fast storage with 32GB UFS 2.1 flash, and 3GB LPDDR3 memory. Like the earlier Hikey (620) board, the board is also an official reference board for AOSP, so you should be able to run the latest Android version, and also play with sensors using Neonkey SensorHub 96Boards mezzanine board.

If you are somehow limited by the 3GB RAM on the board, you can rejoice as Seeed Studio has just launched a 4GB RAM version selling for $249, or about $10 extra. Note that shipping is only scheduled for February 2, 2018, so those are pre-orders.

The rest of the specifications for Hikey 960 4GB RAM version are unchanged:

  • SoC – Huawei Kirin 960 octa-core big.LITTLE processor with 4x ARM Cortex A73 cores @ up to 2.3 GHz, 4x Cortex A53 cores @ up to 1.8 GHz, and a Mali-G71 MP8 GPU @ up to 900 MHz
  • System Memory – 4GB LPDDR4 SDRAM @ 1866 MHz
  • Storage – 32GB UFS flash storage + micro SD card slot up to 2TB (SD3.0, SRD104)
  • Video Output / Display Interface – 1x HDMI 1.4 up to 1080p; 1x 4-lane MIPI DSI connector up to 3840×2400 @ 60 Hz via HS expansion connector
  • Video Decode – H265\HEVC MP/High Tier, Main/High Tier, H.264 BP/MP/HP, MPEG 1/2/4, VC-1, VP6/8, RV8/9/10, DIVX, H265 up to 4K @60fps
  • Video Encode – 4K @30fps H.265/H264
  • Audio – Via HDMI, Tensilica HiFi 3.0 DSP audio subsystem
  • Connectivity – Dual band 802.11 a/b/g/n/a WiFi and Bluetooth 4.1 with two antennas (TI Wilink 8 WL1837 module)
  • USB – 2x USB 3.0 type A host ports, 1x USB 2.0 type C OTG port
  • Camera – 1x 4-lane MIPI CSI, 1x 2-lane MIPI CSI via HS expansion connector
  • Expansion
    • PCIe Gen2 on M.2 M Key connector
    • 40 pin low speed (LS) expansion connector with +1.8V, +5V, DC power, GND, 2x UART, 2x I2C, SPI, I2S, 12x GPIO
    • 60 pin high speed (HS) expansion connector: 4L MIPI DSI, 2L+4L MIPI CSI, 2x I2C, SPI (48M), USB 2.0
  • Misc – LEDs for WiFi & Bluetooth, 4x user LEDs, power button, reset button
  • Power Supply –  8V-18V/2A via 4.75/1.7mm power barrel (EIAJ-3 Compliant); 12V/2A power supply recommended; PMU: Hi6421GWCV530, Hi6422GWCV211, Hi6422GWCV212;
  • Dimensions – 85mm x 55mm
  • Weight – 60 grams

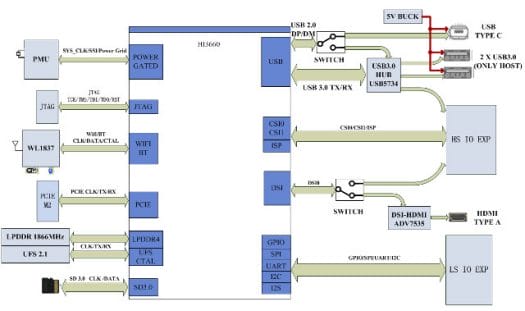

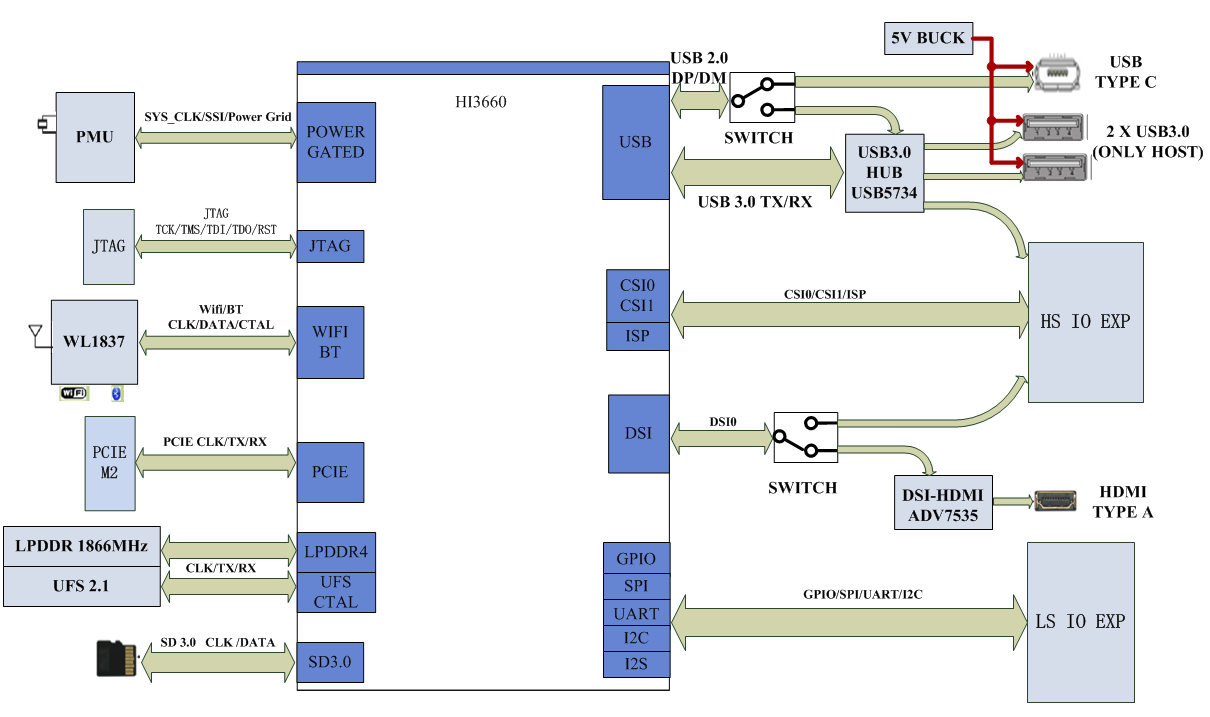

Click to Enlarge

Hikey 960 is purely an Android development platform, as even though there are references to Debian Dekstop/Developer images, there don’t seem to be available for download, so AFAICS there’s no Linux support. Beside information provided in Android developer’s website (linked above), you’ll also find software and hardware documentation on 96Boards Github account.

Support CNX Software - Donate via PayPal or become a Patron on Patreon

8
Leave a Reply

avatar
8 Comment threads
0 Thread replies
5 Followers

Most reacted comment
Hottest comment thread
7 Comment authors
RobertfossxplorerPaul MMike Schinkel Recent comment authors
  Subscribe
newest oldest most voted
Notify of
blu
Guest
blu

So what are the chances that that board not supporting linux comes down to the unwillingness of the vendor to bother with linux GPU support?.. Sad.

m][sko
Guest
m][sko

I would like to see update to Kirin 970. 960 is underclocking too much

Mike Schinkel
Guest

$249? Seriously?

Jon Smirl
Member

@Mike Schinkel

The chips are that board alone total well over $100.

Paul M
Guest
Paul M

An Honor View 10 has a Kirin 970, 6GB RAM, 128GB flash, 2160x1080p screen and battery; pre-ordering suggests its price will be $620 or so.
So under $250 for a Kirin 960 with 4GB RAM, and 32GB flash, doesn’t seem totally unreasonable.

fossxplorer
Guest
fossxplorer

Can it run Linux headless (no GPU driver i guess since @blu mentions it)..?

Robert
Guest
Robert

Linux RPB (Reference Platform Build) here : http://snapshots.linaro.org/reference-platform/embedded/master/hikey960/latest/rpb/
Read about the Linux images migration here : https://discuss.96boards.org/t/current-state-of-linux-on-hikey960/3855

AOSP builds here : http://builds.96boards.org/snapshots/hikey960/linaro/aosp-master/

Basically, Linux builds at Linaro. And AOSP builds at 96boards.
