PHYTEC Introduces phyCORE SoMs & Devkits Based on NXP i.MX8, i.MX 8M, or i.MX 8X Processors

PHYTEC, an embedded systems company headquartered in Germany with global offices, has updated their phyCORE systems-on-module family with 3 sub-families of modules based on NXP i.MX 8, i.MX 8X, or i.MX 8M dual or quad core processors for a total of 9 modules.

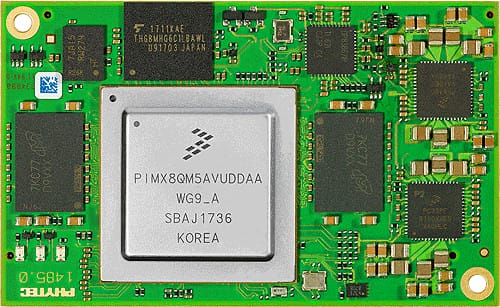

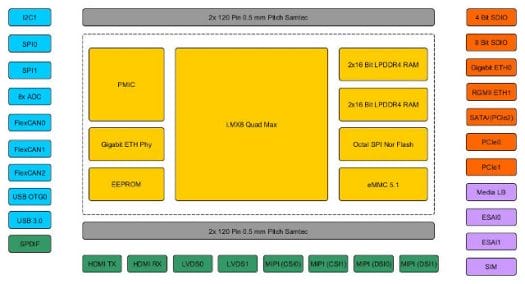

phyCORE-i.MX 8

Specifications:

  • SoC – NXP i.MX 8Quad,  i.MX 8QuadPlus or  i.MX 8QuadMax Arm Cortex-A72/A53/M4F processor @ up to 1.6 GHz with  Tensilica HiFi 4 DSP @ 666 MHz, 2x Vivante GC7000XSVX GPUs
  • System Memory – 1  to 8GB LPDDR4 RAM
  • Storage – 64MB to 256MB Octal SPI/DualSPI SPI NOR Flash, 4 GB to 128 GB eMMC flash, 4kB EEPROM
  • Connectivity – 2x Gigabit Ethernet PHY
  • 4x 120-pin Board-to-board connectors with:
    • Display – 2x LVDS, 2x MIPI DSI, 1x HDMI
    • Video Input / Camera – 1x HDMI, 2x MIPI CSI
    • Audio – 2x ESAI, up to 4x SAI
    • Networking – 2x 10/100/1000 Mbit/s Ethernet
    • USB – 1x USB OTG,  1x USB 3.0
    • Serial – 1x UART, 2x CAN
    • Up to 19x I²C, up to 4x SPI, 1x QSPI
    • 2x MMC/SD/SDIO, 1x SATA
    • PWM
    • 8x ADC
    • Expansion – 2x PCIe
  • Misc – 1x RTC (internal)
  • Power Supply – 3.3V
  • Dimensions – 45 x 73 mm
  • Temperature Range – -40°C…+85°C
Click to Enlarge

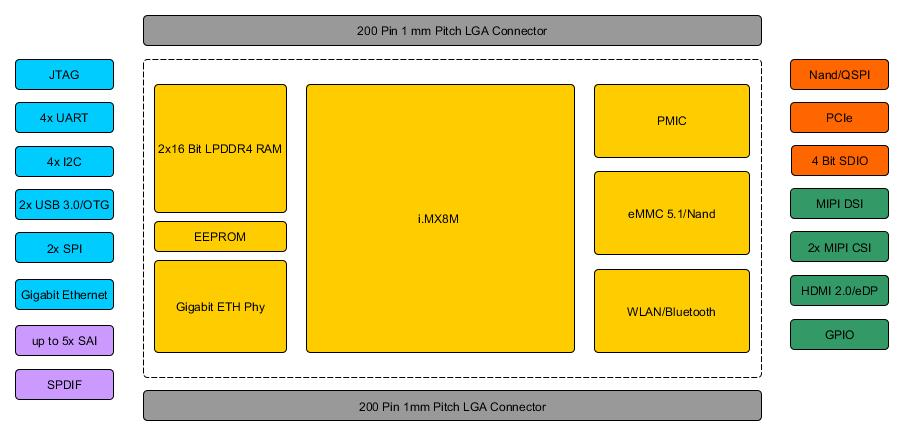

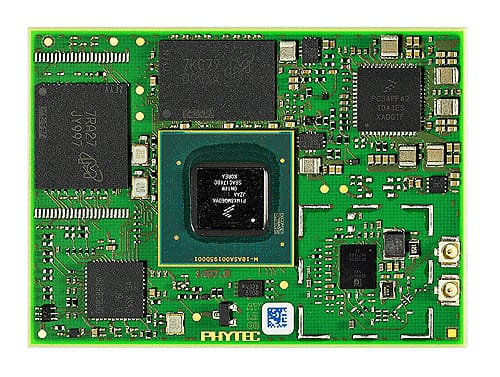

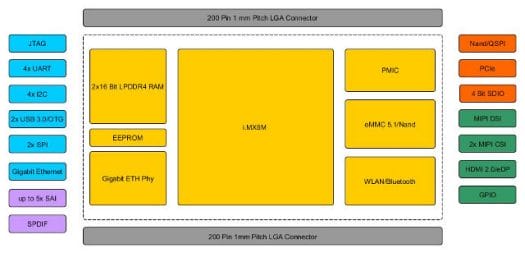

phyCORE-i.MX 8M

Specifications:

  • SoC – NXP i.MX 8MQuad, i.MX 8MDual or i.MX 8MQuadLite Arm Cortex-A53/M4F processor @ up to 1.5 GHz with Vivante GC7000Lite GPU
  • System Memory – 512MB  to 4 GB LPDDR4 RAM
  • Storage – 128MB to 1GB NAND flash (optional with eMMC), 4 GB to 128 GB eMMC flash (optional with NAND), 4kB EEPROM
  • Connectivity – 1x Gigabit Ethernet PHY
  • 2x 200-pin board-to-board connector(s) with:
    • Display – 1x MIPI DSI, 1x HDMI
    • Camera – 2x MIPI CSI
    • Audio – SAI
    • Networking – 1x 10/100/1000 Mbit/s Ethernet
    • USB – 2x USB 3.0
    • Serial – 4x UART
    • Up to 4x I²C, up to 2x SPI, 1x QSPI
    • 4x PWM
    • Expansion – 1x PCIe
  • Misc – 1x RTC (internal)
  • Power Supply – 3.3V
  • Dimensions – 55 x 40 mm
  • Temperature Range – -40°C…+85°C
    Click to Enlarge

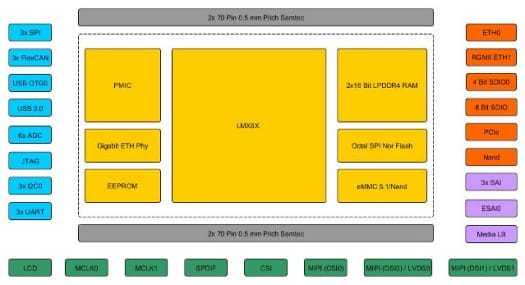

    phyCORE-i.MX 8X

Specifications:

  • SoC – NXP i.MX 8QuadXPlus/ i.MX 8DualXPlus/ i.MX 8DualX Arm Cortex-A35/M4F processor @ up to 1.2 GHz with Tensilica HiFi 4 DSP @ 666 MHz, Vivante GC7000Lite/UltraLite GPU
  • System Memory – 512MB  to 4 GB LPDDR4 RAM
  • Storage – 64MB to 256MB Octal SPI/Dual SPI Flash , 128MB to 1GB NAND flash (optional with eMMC), 4 GB to 128 GB eMMC flash (optional with NAND), 4kB EEPROM
  • Connectivity – 1x Gigabit Ethernet PHY
  • 4x 70-pin board-to-board connector(s) with:
    • Display – 2x LVDS or 2x MIPI DSI
    • Camera – 1x MIPI CSI, 1x parallel camera I/F
    • Audio – ESAI
    • Networking – 2x 10/100/1000 Mbit/s Ethernet (one on-board, 1x RGMII)
    • USB – 1x USB OTG, 1x USB 3.0
    • Serial – 2x UART, 3x CAN
    • Up to 10x I²C
    • 1x octal SPI or 2x QSPI + 3x SPI
    • PWM
    • 6x ADC
    • 1x MMC/SD/SDIO (only with eMMC available)
    • Keypad
    • Expansion – 1x PCIe
  • Misc – 1x RTC (internal)
  • Power Supply – 3.3V
  • Dimensions – 52 x 42 mm
  • Temperature Range – -40°C…+85°C
Click to Enlarge

Hardware Development Kits and SDK

As you’ll have already noticed, the modules have different form factors, and board-to-board connectors, so the company will provide separate development kits / carrier boards for their i.MX 8, i.MX 8M, and i.MX 8X modules.

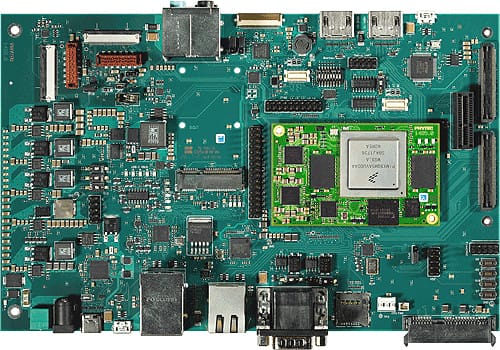

phyCORE-i.MX 8 Carrier Board

The kit includes a phyCORE-i.MX 8/8M/8X SoM, a carrier board to be used as a development platform or reference design, as well as an SDK for a given operating system depending on the selected kit:

    • Linux – Yocto environment with pre-installed and configured packages such as QT-Libs, OpenGL and Python
    • Android
    • QNX, freeRTOS and other software available upon request

Documentation will also be provided with hardware manuals, Quick Start  guides, application guides, and software application examples.

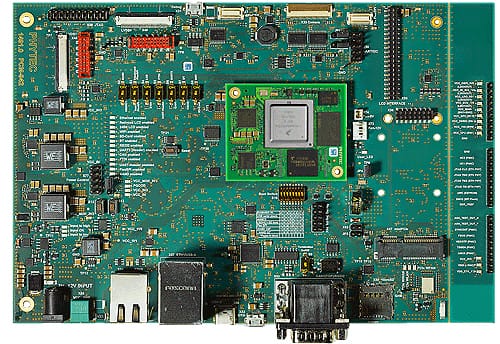

phyCORE-i.MX 8X Carrier Board

Further details about the modules and development kits can be found on PHYTEC i.MX 8 products page.
