MeLE PCG02 Apo HDMI TV Stick Comes with Gigabit Ethernet, Intel Celeron N3450 Apollo Lake Processor

MeLE PCG02 was introduced in 2015 with an Intel Atom Z3735F Bay Trail processor, and was one of the rare Windows TV sticks to include an Ethernet port. Later on, the company also launched PCG02U model with Ubuntu 14.04 instead.

The company has now launched an upgraded version – PCG02 Apo – featuring an Intel Celeron N3450 quad core Apollo Lake processor,  4GB RAM, 32GB storage, as well as Gigabit Ethernet and 802.11ac WiFi connectivity.

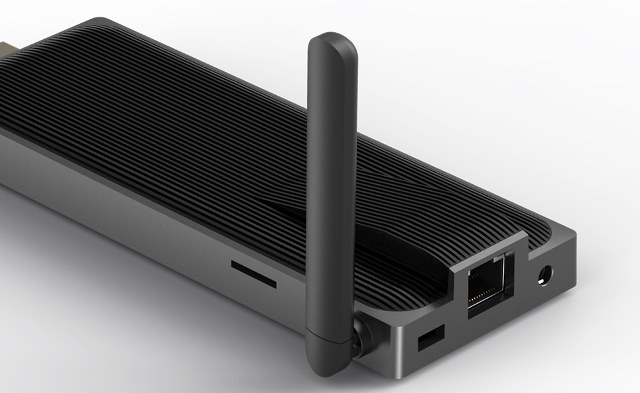

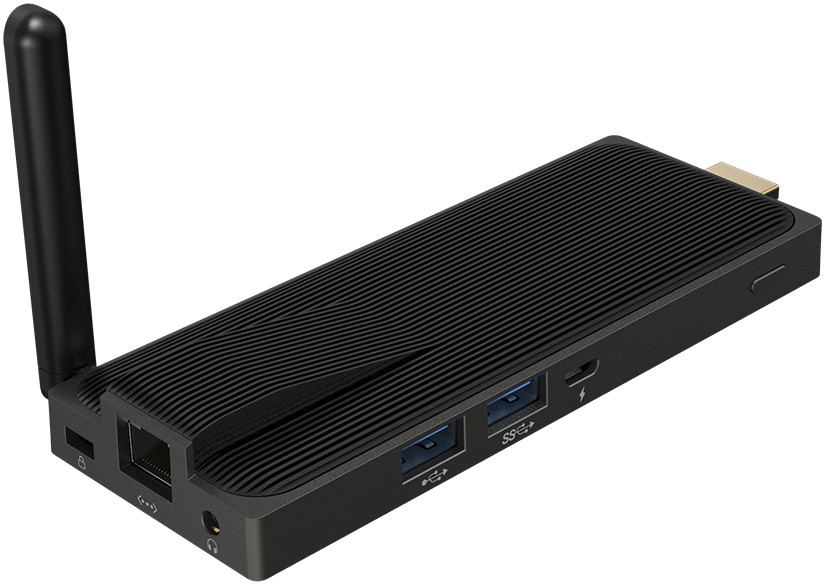

Click to Enlarge

MeLE PCG02 Apo TV Stick specifications:

  • SoC – Intel Celeron N3450 quad core processor @ 1.1 GHz / 2.2 GHz with 12 EU Intel HD graphics 500 @ 200 MHz / 700 MHz; 6W TDP
  • System Memory – 4 GB LPDDR3
  • Storage – 32 GB eMMC flash + micro SD slot
  • Video Output – HDMI 1.4 male port up to 4K @ 30 Hz
  • Audio – Via HDMI, and 3.5mm audio combo jack
  • Connectivity – Gigabit Ethernet, Dual band 802.11 b/g/n/ac WiFi, and Bluetooth 4.2
  • USB – 2x USB 3.0 ports
  • Misc – Power button, Kensington lock slot
  • Power Supply – 5V/3A via micro USB port
  • Dimensions – 150 x 54 x 16.5 mm
  • Weight – ~140 grams; package: 400 grams

MeLE PCG02 Apo comes pre-loaded with Windows 10 Home 64-bit, and there does not seem to be an Ubuntu version in the works. The stick ships with a power adapter with exchangeable plugs following GS (Europe), UK, SAA (Standard Association of Australia),  and UL (US/Canada) standards.

You can purchase the device on Aliexpress with or without MeLE F10 Deluxe air mouse for as low as $179.99 including shipping. Price is now $199.99, but I’ve been told “it will be on sale for US$179 from tonight”.

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK Pi 4C Plus
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
6 Comments
oldest
newest
Paul M
Paul M
5 years ago

a bit pricey, especially considering Gemini Lake is now the standard low-end SoC for these kind of devices.

tkaiser
tkaiser
5 years ago

‘5V/3A via micro USB port’? Seriously?

Ah, a PSU is part of the bundle so hopefully they use the new USB PD compliant Micro USB jacks and receptacles (that should withstand 3A unlike normal Micro USB parts rated for 1.8A max)

aussetg
aussetg
5 years ago

It doesn’t look safe for the HDMI port….

IanC
IanC
5 years ago

“32GB storage” “Windows 10”

Those two don’t work well together.

rubin kim
rubin kim
5 years ago

Wonder what the heat dissipation is like. No mention of a fan.

TC
TC
5 years ago

“Stick”

No HDMI port could safely hold it in place

They should sell it for what it is: a TV box.
