Wemos LOLIN D32 Pro ESP32 Board Supports TFT Displays, Comes with a micro SD Card Slot

Wemos is popular for their low cost WiFi board based on Espressif SoCs. Their most popular board is ESP8266 based Wemos D1 mini  thanks to its compact form factor, low price ($5 shipped), and available add-on boards.

But they’ve also launched some ESP32 in the last year or so with development boards such as Wemos LOLIN32 Lite. Their latest ESP32 board – LOLIN D32 Pro v2.00 – features ESP32-WROVER module, and beside exposing I/Os via breadboard compatible headers, also offers a micro SD card slot, a TFT display connector, and an I2C header.

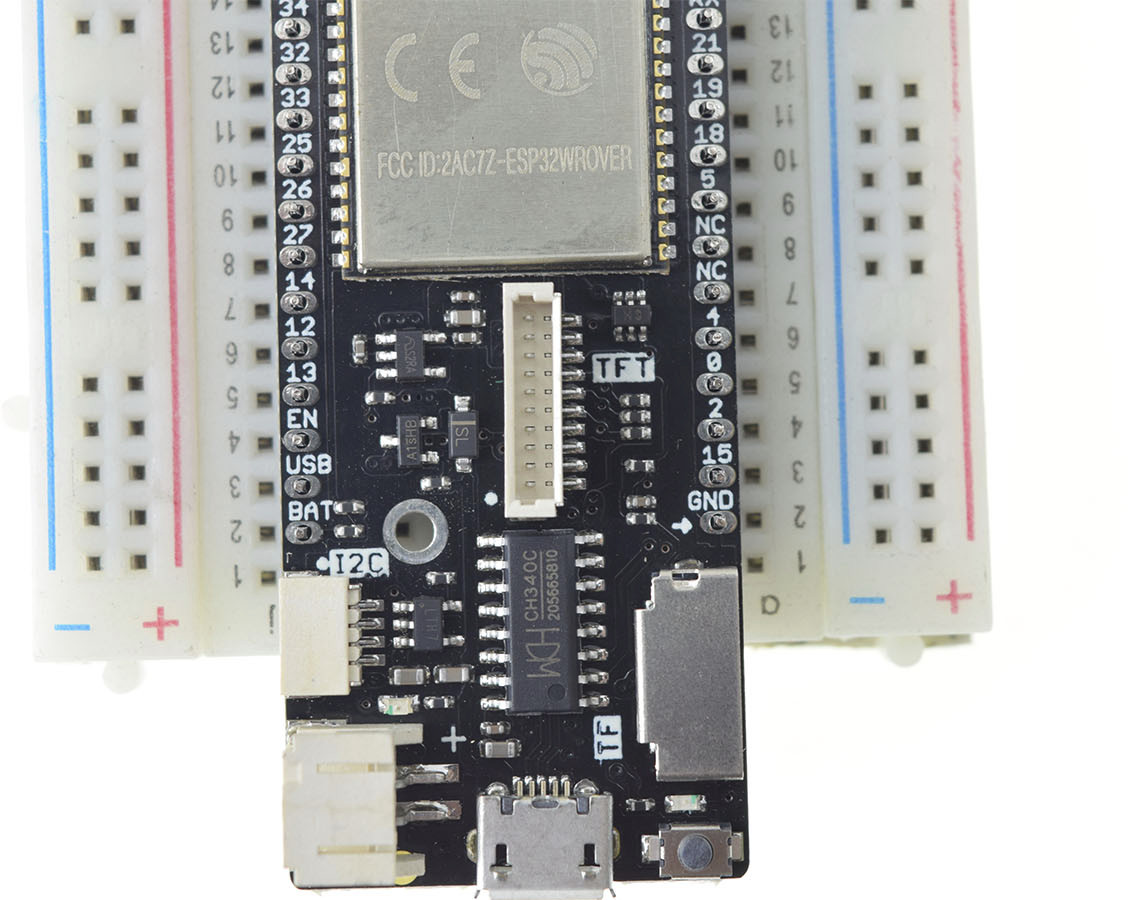

Wemos LOLIN D32 Pro
Click to Enlarge

LOLIN D32 Pro specifications:

  • Wireless module – ESP32-WROVER 802.11 b/g/n WiFi + Bluetooth 4.1 LE module with 4MB Flash, 4MB PSRAM
  • Storage – micro SD card slot supporting SPI mode
  • Display I/F – TFT display connector
  • USB – 1x micro USB port for programming and power
  • Expansion
    • 2x 16-pin headers with GPIOs, SPI, I2C, UART, ADC, DAC, TFT, VP/VN, and power signals (3.3V/GND, BAT)
    • I2C header
  • Power Supply
    • 5V via micro USB port
    • Lithium battery interface (PH-2 2.0mm) up to 500mA charging current
  • Dimensions – 65 x 25.4 mm
  • Weight – About 8 grams

LOLIN D32 PRO Pinout

The board is listed as compatible with Arduino and MicroPython – the two most popular, and well supported firmware – but should support other alternative firmware as well. LOLIN D32 Pro ships with MicroPython firmware by default.  The schematics and CH340G drivers can be found in the Wiki.


Wemos LOLIN D32 Pro V2.0.0 board is sold for $8.80 + shipping (around $4 here) on Aliexpress. You’d think the company would also provide a TFT display module to fit nicely into their TFT connector, but I could not find any on their Aliexpress store, maybe it’s coming later. In the meantime, you would have to “cook” something yourself possibly using Loboris’ ESP32 TFT library together with a supported TFT display module based on ILI9341, ILI9488, ST7789V or ST7735 display controller. [Update: Actually one of the displays for Wemos D1 mini comes with such female TFT connector, and all you need if an extra cable also sold by Wemos. See comments for links and details.]

Share this:
FacebookTwitterHacker NewsSlashdotRedditLinkedInPinterestFlipboardMeWeLineEmailShare

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard

6 Replies to “Wemos LOLIN D32 Pro ESP32 Board Supports TFT Displays, Comes with a micro SD Card Slot”

    1. They have two displays on their shop like the one you showed but those are add-on boards for Wemos D1 mini, so they won’t fit into the TFT connector of LOLIN D32 Pro.

      1. Actually if you look at the rear of the shield you’ll see that not only does it have the D1 compatible headers, it also has the TFT connector as well as bringing the pins out to the side of the board for custom wiring harnesses.

          1. So the 12C on the D1 connects to the TFT? Powers it and serves it the data?
            Judging by that cable

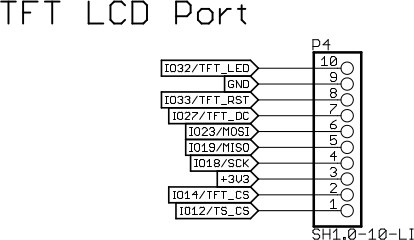

          2. The cable should carry SPI, 3.3V, GND, and other signals shown on the diagram in the post.
