We’ve previously covered a couple of Android keyboard PCs in the past. First the ill-fated Coolship keyboard PC that never show the light of the day, and later on, Intel based dual boot Android + Windows 10 T20 keyboard computer. The latter sold at the time, but is no longer available.

But in the unlikely case you are still looking for an Android keyboard PC, Rockchip RK3288 powered WAHE Home should soon become available.

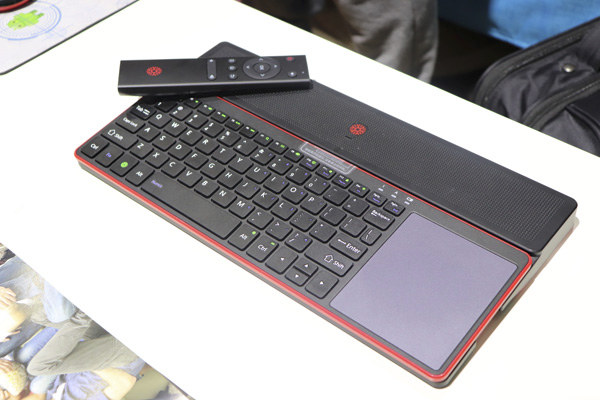

WAHE Home Android Keyboard PCWave Home specifications:

  • SoC – Rockchip RK3288 quad core Cortex A17 processor with Mali-T760MP4 GPU
  • System Memory – 2GB RAM
  • Storage – 16 GB eMMC flash
  • Video Output – HDMI 1.4 up to 4K @ 30 Hz
  • Audio – Via HDMI, built-in speaker, 3.5mm audio jack
  • Connectivity – Dual band 802.11 b/g/n WiFi, Bluetooth 4.0
  • User Input – Removable 83-keys QWERTY keyboard and touchpad
  • USB – 3x USB 2.0 host ports
  • Power Supply –
  • Dimensions – 330 x 172 x 23 mm

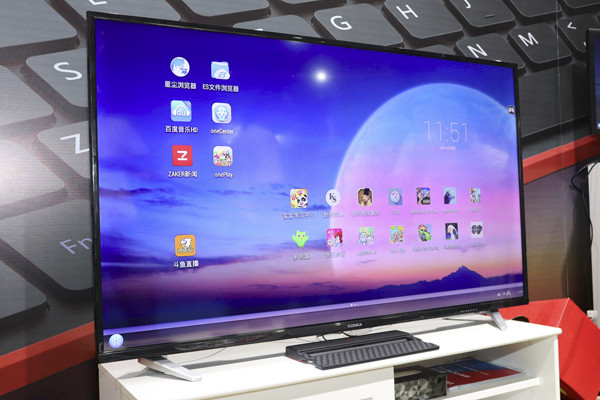

WAHE-OS-Computer-Mode

The operating systems is called WAHE OS based on the ancient Android 4.4 Kitkat with three modes:

  • Gaming mode – User interface with large tiles for games
  • TV box mode – User interface with larger titles for videos
  • Computer mode – Simplified UI for Android apps with multi-window support.

Using the included remote control should switch to TV box mode, while going with the gamepad, you’ll be presented with the gaming mode.

WAHE Home keyboard PC is still a prototype as showcased at CES Asia 2018, and pricing and availability information is still unknown.

Via NotebookItalia and Liliputing

Support CNX Software - Donate via PayPal or become a Patron on Patreon

5
Leave a Reply

avatar
3 Comment threads
2 Thread replies
0 Followers

Most reacted comment
Hottest comment thread
5 Comment authors
tkaiseronebirsolatian Recent comment authors
  Subscribe
newest oldest most voted
Notify of
tian
Guest
tian

They should have equipped it with the RK3399 and it would been an instant buy for me. But with the RK3288 – as good as the chip is – and Android 4.x … Hello? Here is 2014 calling, we want our product back

sola
Guest
sola

Agreed on the RK3399.

Ubuntu support would be easy for that one.

tkaiser
Guest
tkaiser

Why should there be any difference between RK3288 and RK339 when it’s about ‘Ubuntu support’ (what’s that? It’s about the kernel and libs if you’re talking about Linux support).

See here please: http://opensource.rock-chips.com/wiki_Status_Matrix

onebir
Guest
onebir

I thought it was aimed at Chinese hotels. Just a cheap way to get a computer in each room; now people are used to phone OSs Android is enough.

But it’s retailing at RMB900 (~US$145), not so cheap: https://item.jd.com/22697610330.html

(The ad has an interesting pic suggesting the manufacturer is using the same SOM in many devices.)

Member

No China software for me. Thank you. Good luck selling your souls.
