Wireless Gecko Series 2 MCU Delivers Extended Range, HW Security

Silicon Labs are recently introduced their Wireless Gecko Series 2 Arm Cortex-M33 MCU family that offers Bluetooth, Zigbee, and Thread connectivity for smart home, commercial and industrial IoT applications.

The new family includes a dedicated security core as well as an on-chip radio which according to the company delivers 2.5 times the wireless range of competing solutions.

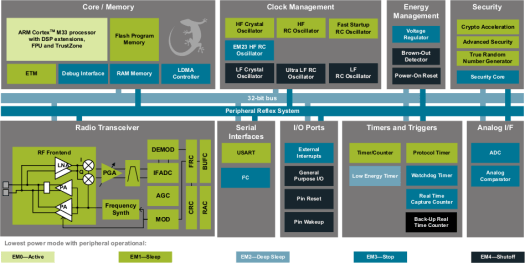

Wireless Gecko Series 2 efr32bg21
Click to Enlarge

Some of the highlights of the new wireless microcontroller includes:

  • 80 MHz Arm Cortex-M33 core with TrustZone technology
  • High RF performance with +20 dBm output power and up to +124.5 dB link budget
  • Low active current (50.9 µA/MHz)
  • Security
    • Dedicated security core for faster, lower-power encryption
    • Built-in true random number generator (TRNG)
    • Secure boot loading
    • Secure debug access control
  • Tiny 4×4 mm QFN package
  • Lower BOM count and system cost with fewer matching components and no need for external inductors or power amplifiers
  • Flexible pre-certified modules based on EFR32xG21 SoCs planned for Q3

Silicon Labs will start by launching two Wireless Gecko Series 2 MCU sub-families best suited for line-powered IoT products including gateways, hubs, lights, voice assistants and smart electric meters:

  • EFR32MG21 Mighty Gecko SoCs supporting multiprotocol, Zigbee, Thread and Bluetooth mesh networking
  • EFR32BG21 Blue Gecko SoCs dedicated to Bluetooth Low Energy and Bluetooth mesh.

“Line-powered” means the first generation of Wireless Gecko Series 2 is not suitable, or at least not ideal, for battery-powered systems

The company is also offering the EFR32xG21 Wireless Starter Kit with support for Bluetooth, Zigbee, Thread, and Multiprotocol Zigbee/Bluetooth software stacks in order to get started as quick as possible.

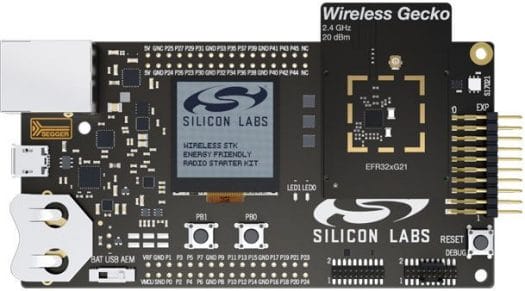

EFR32xG21 Wireless Gecko Starter Kit
Click to Enlarge

The kit includes 3x wireless starter kit mainboards, 3x EFR32MG21 2.4 GHz +20 dBm radio boards, 3x EFR32MG21 2.4 GHz +10 dBm radio boards, an AA battery board, cables, and EFR32MG Getting Started Card.

Development can be performed with the Simplicity Studio IDE including a unified wireless development kit, SDKs, energy profiler, network analysis, application demos, and mobile apps.

Silicon Labs EFR32MG21 and EFR32BG21 SoCs are available now starting a $3.36 in sample quantities, and the Starter Kit can be purchased for $479. Visit the chips’ product page for further details.
