$40 Elecrow 5″ HDMI Raspberry Pi Display Features Backlight Control, a Resistive Touch Panel

There are plenty of small touch screen displays for Raspberry Pi board, including the official 7″ display that connects to the board’s MIPI DSI connector.  Some people may prefer getting a small HDMI display however, as it can be used with most devices with an HDMI input port, and the touch screen function may be achieved over USB, I2C or SPI depending on the design.

Elecrow has just launched a new 5″ HDMI display with resistive touch screen designed for the Raspberry Pi boards, and whose main feature is to support backlight control over GPIO 11 in order to lower power consumption according to the announcement tweet from the company.

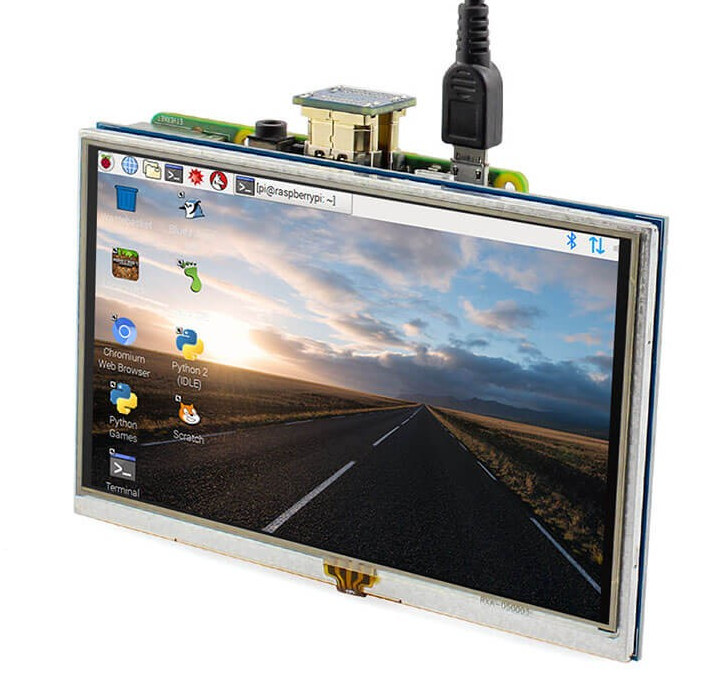

5-inch HDMI Display Backlight ControlSpecifications for RPD19048A display:

  • Screen – 5″ TFT resistive touch screen display with 800×480 resolution @ 60 Hz;
  • LCD Driver IC – Display Future ILI9486L (Likely wrong as this only supports 480×320 resolution)
  • Touch controller – XPT2046 4-wire resistive touch controller
  • Video Input – HDMI
  • Power Supply – 5V/1A via micro USB port or Raspberry Pi header
  • Dimensions – 121.11 x 77.93mm
  • Weight – 175g

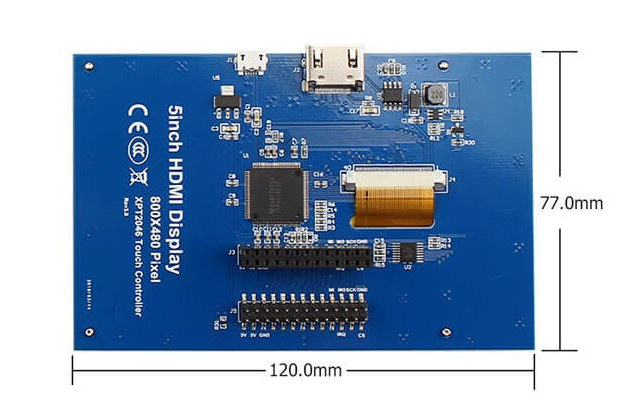

5" HDMI Display SBCThe resistive touch and backlight control functions will only work with a Raspberry Pi model B, 2B, 3B, or 3B+, and potentially Raspberry Pi compatible boards such as Tinker Board or Rock64, but you’d need to carefully check the pins used on the RPI header and potentially modify the software.

Some documentation is available in a wiki. But it’s not very good. It’s unclear how the automatic backlight function works, as in when does the Raspberry Pi decides to turn off the backlight. The Wiki also reads “the backlight can be controlled by a raspberry pi pin, input a high level to pin 11, the backlight will turn on, otherwise, it will be off”, so it’s unclear where PWM signals can be applied to pin 11 to control the brightness of the backlight [Update: I got an answer on Twitter and the backlight is controlled by a MOSFET to run it on and off only, no brightness control]. The company did not bother providing power consumption numbers either, so we don’t know how much power is safe by turning off the backlight for example.

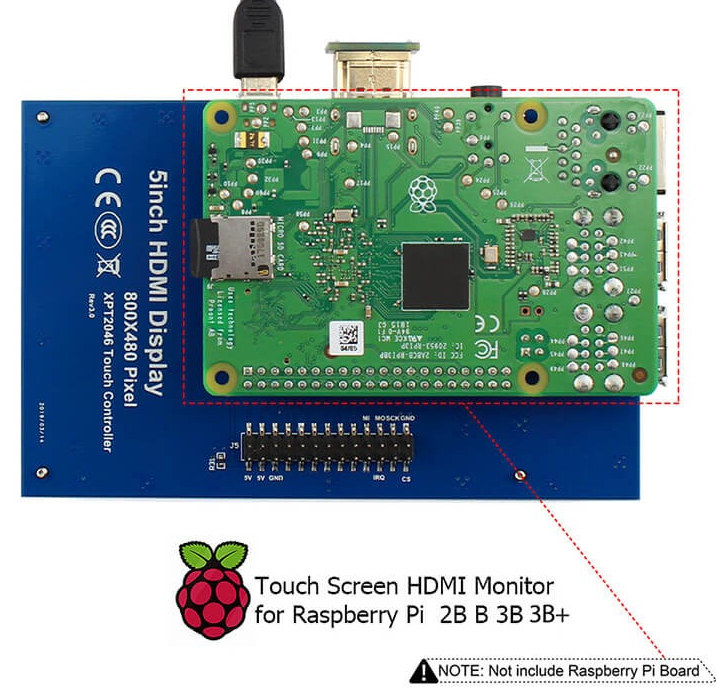

Small HDMI Display Raspberry PiThe display can be used with mini PCs too, simply connect an HDMI cable, and add a USB power supply for power. The touch screen function will not work in that case.

This 5″ HDMI touch screen display can be purchased directly on Elecrow store for $39.90 plus shipping.

Support CNX Software - Donate via PayPal or become a Patron on Patreon

5
Leave a Reply

avatar
2 Comment threads
3 Thread replies
1 Followers

Most reacted comment
Hottest comment thread
4 Comment authors
theguyukJerryRogan DawesAlex Recent comment authors
  Subscribe
newest oldest most voted
Notify of
Alex
Guest
Alex

Recently bought a 7″ 1024×600 monitor with resistive touchscreen, HDMI, VGA and RCA input and a real housing with a stand for a very similar price. The housing is large enough to fit stripped Orange Pi Lite inside, and the USB touch chipset has Linux support. The driver board works even with 5V and has both TTL and LVDS support for various tablet LCDs available for cheap.

Rogan Dawes
Guest
Rogan Dawes

Link please?

Alex
Guest
Alex

Here: https://www.aliexpress.com/item/SRJTEK-7-HD-LCD-1024-600-Mini-Computer-TV-Display-Capacitive-Touch-Screen-HDMI-LCD-Monitor/32961141930.html
There are no speakers as the description suggests. If you need better viewing angles and higher brightness, there is a 7″ 1280×800 LVDS IPS panel which fits – HannStar HSD070PWW1-C00. If you don’t need speakers/touchscreen/housing there are other offerings as well (with various LCD sizes).

Jerry
Guest
Jerry

Pretty sweet display. The only problem is that the chinese “pirate” RPi boards may not be 100% compatible. Raspberry has a long history of providing decent 1080p HDMI image with CEC. From what one can gather from the SBC news, for instance Allwinner Video & 3D support has landed the mainline only very recently. Odroid C1/C1+ has also had a lousy track record.
