AAEON BOXER-8220AI Embedded Box PC Features NVIDIA Jetson Nano, 5 Gigabit Ethernet Ports

AAEON has launched several AI Boxer-8000 series embedded box PCs based on Intel processors plus AI accelerator, or NVIDIA Jetson TX2.

The company has now introduced a new model – BOXER-8220AI – based on NVIDIA Jetson Nano module, and equipped with five Gigabit Ethernet ports.

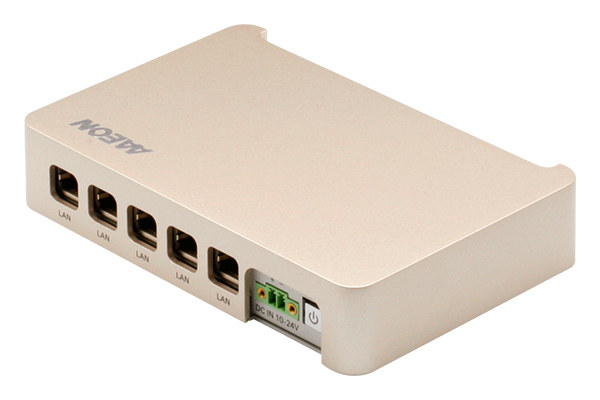

Jetson Nano Embedded Mini PCAAEON BOXER-8220AI specifications:

  • SoM (CPU/Memory/Storage) – NVIDIA Jetson Nano with quad-core Arm Cortex-A57 MPCore processor @ 1.43 GHz, 128-core Maxwell GPU. 4GB LPDDR4, 16GB eMMC flash or MicroSD card
  • Video Output – HDMI 2.0
  • Connectivity – 5x Gigabit Ethernet ports
  • USB – 4x USB 3.0 ports, 1x Micro USB to flash the OS
  • Serial – 2x RS-232
  • Misc – Power button, recovery button, power LED
  • Power Supply – 10-24V DC via 2-pin terminal block
  • Dimensions – 154 x 101 x 30 mm
  • Weight – 1 kg
  • Temperature Range – Operating: -20°C ~ 60°C, according to IEC60068-2 with 0.5 m/s AirFlow; storage: -45°C ~ 80°C
  • Storage Humidity – 95% @ 40°C, non-condensing
  • Anti-Vibration – 3 Grms/ 5 ~ 500Hz/ operation – MicroSD or eMMC
  • Certification – CE/FCC class A

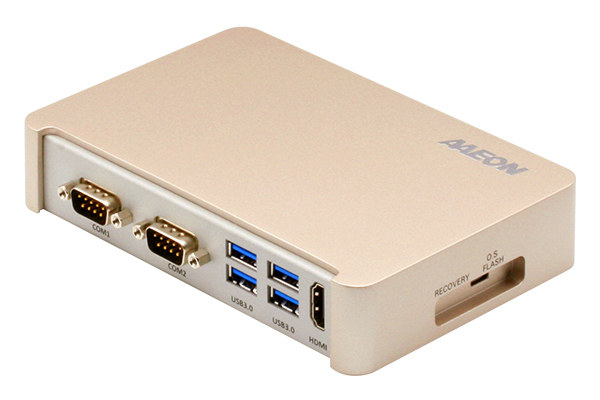

AAEON BOXER-8220AI Embedded Box PCThe embedded box PC runs AAEON ACLinux 4.9 or above based on Ubuntu 18.04, and targets entry to mid-level deployment of AI and edge computing applications.

AAEON BOXER-8220AI ships with two wall-mount bracket and a power connector, while the 60W power supply and country-specific power cord are optional accessories.  It can be purchased for $483.00 directly from AAEON e-Store. You’ll find further details including the datasheet, ACLinux 4.9 firmware image, and user manual on the product page.

Share this:

Support CNX Software! Donate via PayPal or cryptocurrencies, become a Patron on Patreon, or buy review samples

Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
2 Comments
oldest
newest
Noloqoq
Noloqoq
1 year ago

I search this kind of product for long time, but I would like a more standard/OpenSource supported ARM SoC than nVidia one :(.

David Willmore
David Willmore
1 year ago

Headline is very confusing. I was expecting the device to have a 5Gb/s ethernet port.
