Polos GD32V Alef is a Tiny RISC-V MCU Board Selling for $3

We first found out about GigaDevice GD32V 32-bit RISC-V MCU last summer, as an update/alternative to the earlier STM32 compatible GD32 Arm Cortex-M3 microcontroller from the company with higher performance and lower power consumption, while keeping the price identical.

The first low-cost GD32V development board we covered was Longan Nano going for $5 with an OLED display and an acrylic case. If you don’t need either or want to access all pins from the 48-pin MCU,  you can now order an even cheaper GD32V RISC-V MCU board with Polos GD32V Alef going for $2.99 on Analoglamb website.

Polos GD32V Alef

Polos GD32V Alef board specifications:

  • MCU – Gigadevice GD32VF103CBT6 32-bit RISC-V (rv32imac) microcontroller @ 108 MHz with 128KB Flash, 32KB SRAM
  • USB – 1x micro USB OTG port for power and programming
  • Expansion – 52 through holes (2.54mm pitch) exposing all pins from the MCU including 3x USART, 2x I2C, 3x SPI, 2x I2S, 2x CAN, 2x ADC (10 channel), 2x DAC, as well as power signals (5V, VBAT, GND…), and JTAG signals
  • Timers – 4x general-purpose 16-bit timers, 2x basic 16-bit timers, 1 x advanced 16-bit timer, watchdog timer
  • Crystals – 8MHz Crystal +32.768KHz Low-Speed RTC Crystal
  • Misc – Boot and EN buttons
  • Power Supply – 5V via micro USB port
  • Dimensions – 33 x 33 mm (estimated)

The board uses the same GD32VF103CBT6 as on Sipeed Longan board, exposes more I/Os, but also lacks a MicroSD card socket and connector for SPI LCD display. You could always connect your own SPI display with some soldering though.

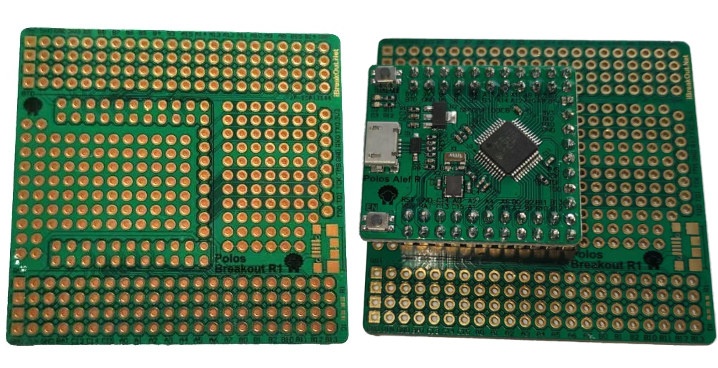

RISC-V MCU Board BreakoutThere’s also an optional breakout board that sells for $1.49 as shown above.

There are two main options for software development:

  • C/C++ development with Nuclei Studio based on Eclipse IDE, and developed by Gigadevices allowing UART, DFU (USB) and JTAG firmware flashing.
  • Arduino using Longduino developed by Sipeed for their Longan Nano board.

AnalogLamb also has a Github repo for Polos GD32V Alef board but it’s empty at the time of writing.

Support CNX Software - Donate via PayPal or become a Patron on Patreon

8
Leave a Reply

avatar
6 Comment threads
2 Thread replies
0 Followers

Most reacted comment
Hottest comment thread
7 Comment authors
zoobabdila slSvenTim Recent comment authors
  Subscribe
newest oldest most voted
Notify of
Willy
Guest
Willy

The specs look quite appealing, with lots of diversity in the connectivity options. I’m not seeing PWM outputs, but these may possibly be implemented using the timers.

Regarding the VBat input, it doesn’t go to a regulator nor charger. I suspect instead it’s used as the RTC battery’s power input.

dgp
Guest
dgp

Not sure if black silk screen on a green pcb is the best idea. Makes it real hard to see the silk screen.

willy
Guest
willy

Definitely agree, I noticed this as well and it bothered me too. At this price I won’t complain but it certainly is something they should improve.

Tim
Guest
Tim

Is anyone using these type devices yet? Good replacement for M3?

Sven
Guest
Sven

Cannot really recommend them currently. I tried the Longan. Hardware might be okay. But software sucks. SDK is buggy, Arduino support very incomplete. USB code does not even compile and is not working. No response to bug reports. Take a look at the issues.

Member
Michael Regenmacher

Besides the two software development tools mentioned, Seggers Embedded Studio (free for non-commercial use) and PlatformIO are other options.

dila sl
Guest
dila sl

“Polos” that call srilanka people for little jak fruit

zoobab
Guest

He should have made it bluepill like, and breadboard compatible. This dual row is a nightmare for breadboards.

Next step is to desolder a bluepill, and resolder a GD32V.
