Google Coral mPCIe and M.2 Cards for Sale, New Coral Dev Board Mini and Modules Coming in 2020

Google introduced Coral development board and USB accelerator with Google Edge TPU last year. The development board was comprised of a baseboard and Coral system-on-module with an NXP i.MX 8M quad-core Arm Cortex-A53 processor and the Edge TPU.

Since then ASUS announced Tinker Edge T and CR1S-CM-A SBC based on the Coral module, and yesterday, I noticed Seeed Studio started selling mPCIe and M.2 AI accelerator card with Google Edge TPU, while today, Google announced upcoming Coral products for 2020.

Coral Mini PCIe and M.2 Accelerators

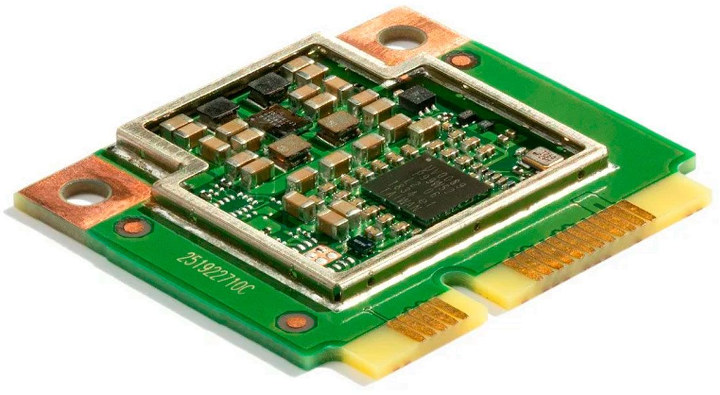

Coral Mini PCIe AcceleratorCoral Mini PCIe card specifications:

  • Half-mini PCIe card with PCIe Gen2 x1
  • Supply voltage –  3.3VDC +/- 10 %
  • Dimensions – 30.00 x 26.80 x 2.55 mm
  • Weight – 3.6 g
  • Temperature Range – Storage: -40 ~ 85°C; operating: -20 ~ 70°C
  • Relative humidity – 0 ~ 100% (non-condensing)
  • Op-shock – 100 G, 11ms (persistent); 1000 G, 0.5 ms (stress); 1000 G, 1.0 ms (stress)
  • Op-vibe (random) – 0.5 Grms, 5 – 500 Hz (persistent); 3 Grms, 5 – 800 Hz (stress)
  • Op-vibe (sinusoidal) – 0.5 Grms, 5 – 500 Hz (persistent); 3 Grms, 5 – 800 Hz (stress)
Coral M.2 Accelerator B+M-Key
Coral M.2 Accelerator B+M-Key

Coral M.2 Accelerators specifications:

  • M.2 Card with PCIe Gen2 x1
  • Supply Voltage – 3.3V +/- 10 %
  • Dimensions & Weight
    • B+M key – 22.00 x 80.00 x 2.35 mm | 5.8 grams
    • A+E key – 22.00 x 30.00 x 2.35 mm | 3.1 grams
  • Temperature Range – Storage – -40 ~ 85°C; operating: -20 ~ 70°C
  • Relative Humidity -0 ~ 100% (non-condensing)
  • Op-shock – 100 G, 11ms (persistent); 1000 G, 0.5 ms (stress);1000 G, 1.0 ms (stress)
  • Op-vibe (random) – 0.5 Grms, 5 – 500 Hz (persistent);3 Grms, 5 – 800 Hz (stress)
  • Op-vibe (sinusoidal) – 0.5 Grms, 5 – 500 Hz (persistent); 3 Grms, 5 – 800 Hz (stress)
Coral M2 Accelerator A+E Key
Coral M.2 Accelerator A+E Key

Those cards allow you to add Google Edge TPU to accelerate AI workloads (up to 4 TOPS, 0.5 Watt/TOPS) to any x86 or Arm mini PC, SBC, or gateway with either mPCIe or M.2 sockets.

All three Edge TPU cards are up for pre-order for $34.99 on Seeed Studio with delivery scheduled for mid-February 2020, and I’ve noticed the company is also taking orders for the original Coral Edge SoM for $114.99.

Coral Products for 2020

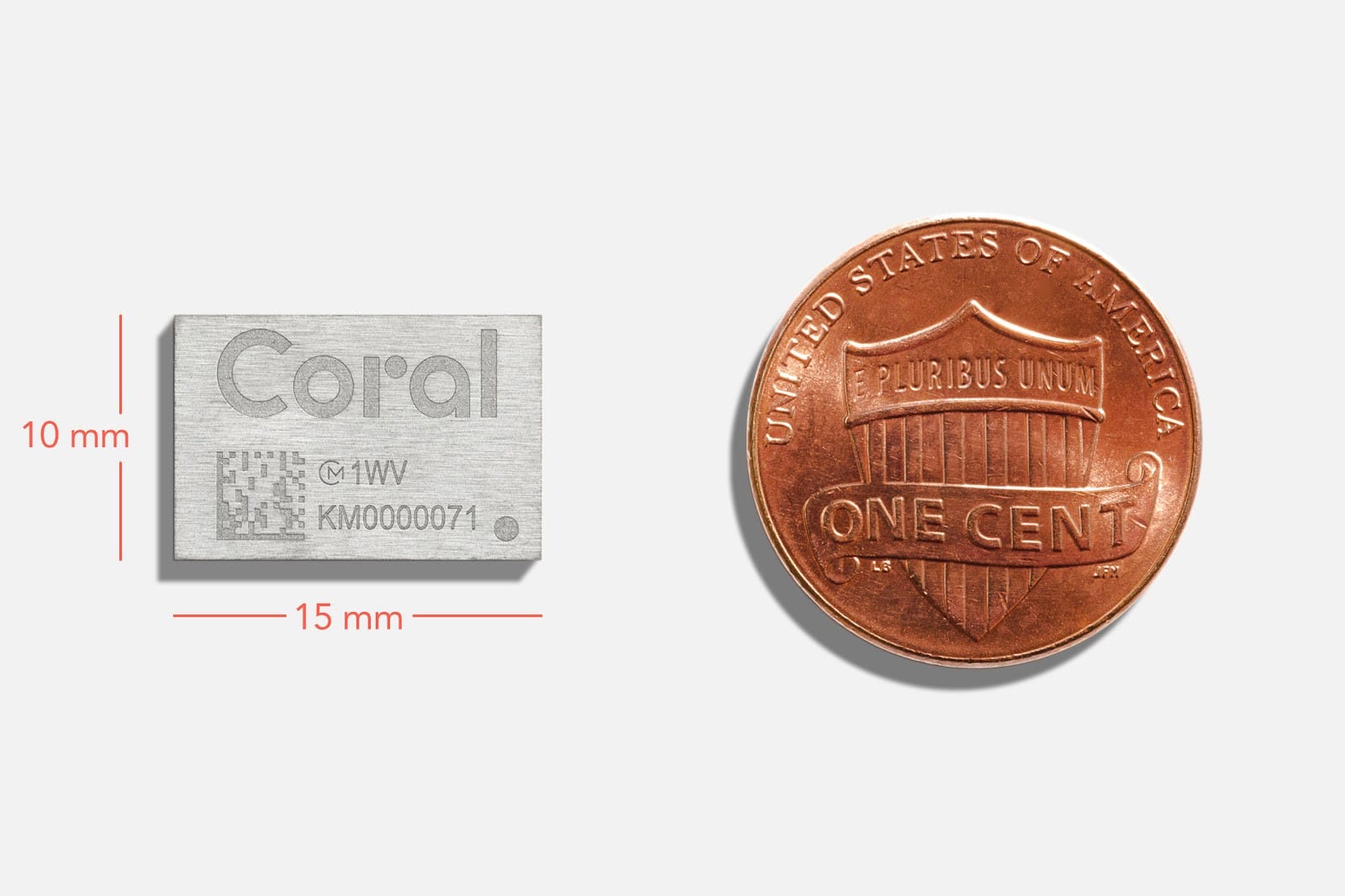

Coral Accelerator Module

Coral Accelerator Module
Click to Enlarge

The first new Coral product coming later this year is a tiny 15×10 mm Coral Accelerator module (120-pin LGA) that exposes both PCIe and USB interfaces for easy integration with various processors and PCB designs. Google partnered with   Murata to produce the module which will be demonstrated at the company’s booth at CES 2020. The Coral Accelerator Module will launch in H1 2020. Visit the product page for more details.

Coral Dev Board Mini

Coral Dev Board Mini

The first board to leverage Coral Accelerator Module  will be Coral Dev Board Mini with the following specifications:

  • SoC – MediaTek 8167s quad-core Arm Cortex-A35 processor with Imagination PowerVR GE8300 GPU
  • ML accelerator – Google Edge TPU coprocessor  (in Coral Accelerator Modal)
  • System Memory – 2 GB DDR3L RAM
  • Storage – 8GB eMMC flash memory
  • Connectivity – Wi-Fi 5 802.11a/b/g/n/ac, Bluetooth 5.0
  • Video Output
    • micro HDMI 1.4 port
    • 39-pin FFC connector for 4-lane MIPI-DSI display
  • Video – 720P video encoding/decoding
  • Audio – 3.5mm audio jack; digital PDM microphone; 2.54mm 2-pin speaker terminal;
  • Camera – 24-pin FFC connector for 4-lane MIPI-CSI2 camera
  • USB – 2x USB 2.0 Type-C ports
  • Expansion – 40-pin GPIO header

The board is meant to be a lower-cost version of the original Coral Dev Board with a smaller form factor, and a cheaper MediaTek processor replacing the NXP i.MX 8M SoC. The board will also be launch in H1 2020, hopefully for under $100 (The Coral Dev Board currently sells for $150 and up). You may find further information on the product page.

Coral SoM Gets up to 4GB RAM

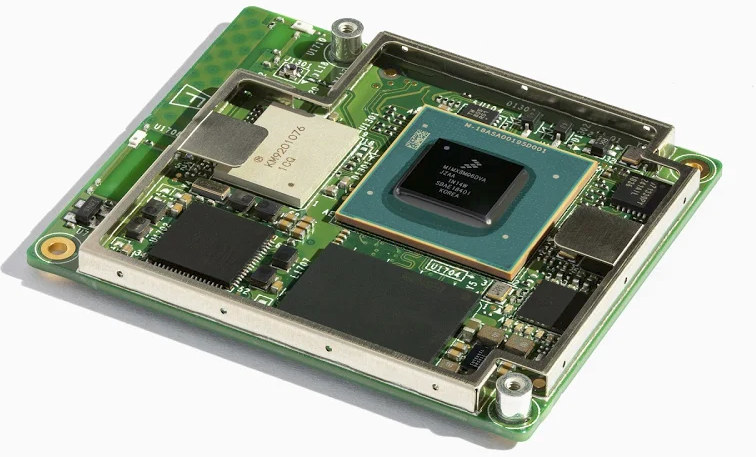

Coral System on Module

The first Coral system-on-module ships with 1GB LPDDR4 RAM, Google will soon be offering a version with 2GB and 4GB LPDDR4 RAM which should help with some applications and people trying to build packages directly on the board.

There aren’t any changes to the Edge TPU in any of the new products above, and it still delivers 4 TOPS, supports TensorFlow Lite as well as AutoML Vision Edge to build and deploy fast, high-accuracy custom image classification models.
