RAK2287 Mini PCIe LoRaWAN Concentrator Module Supports up to 500 Nodes per km2

RAK Wireless launched its first Mini PCIe LoRaWAN concentrator module in 2018 with RAK833 mPCIe card featuring Semtech SX1301 LoRa baseband chip. It was soon followed by RAK2247 mPCIe with a very similar design but some tweaks to increase its maximum transmission power and range, and improve thermals and stability with the addition of a heatsink.

The company has now introduced a new version with RAK2287 Mini PCie LoRaWAN concentrator module being mostly inspired by RAK2247 module but replacing Semtech SX1301 by Semtech SX1302 LoRa transceiver that’s suppose to reduce current consumption (and heat), lower the BoM cost, and able to handle a higher amount of traffic. The new mini PCIe card also adds u-blox ZOE-M8Q GPS system-in-package to provide GNSS functionality.

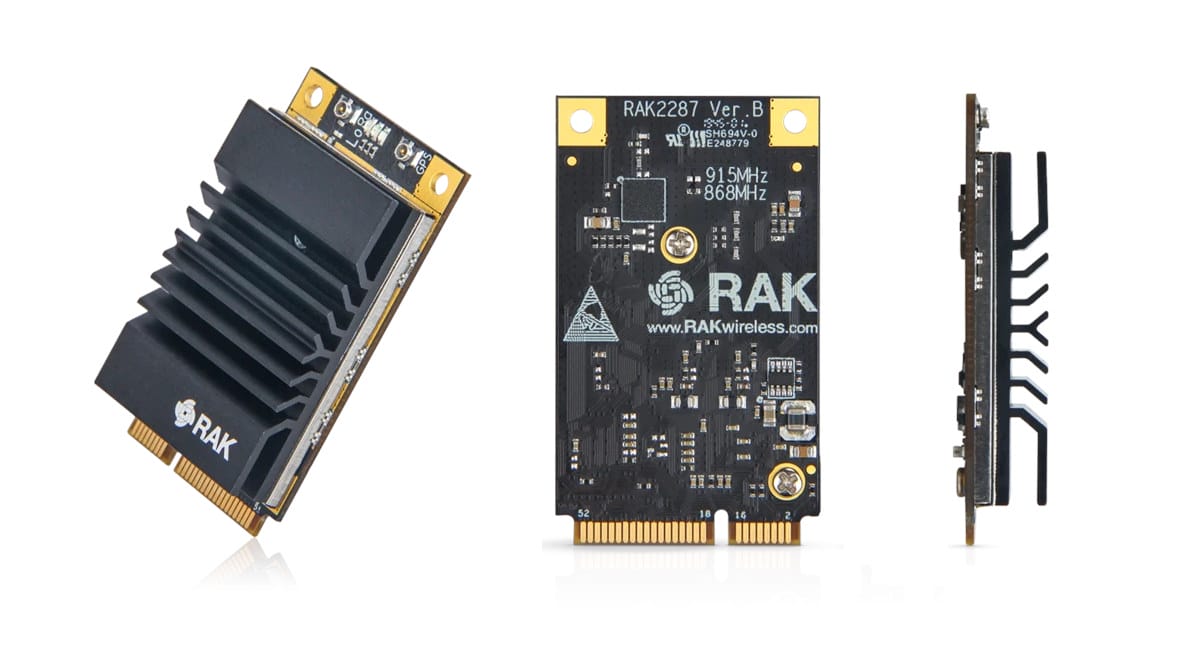

RAK2287 LPWAN Concentrator ModuleRAK2287 key features and specifications:

  • LoRa Connectivity
    • Semtech SX1302 LoRa Transceiver with 2x SX1250 Tx/Rx front-end
    • Tx power – up to 27dBm
    • Rx sensitivity – down to -139dBm @ SF12, BW 125 kHz
    • LoRaWAN® 1.0.2 compatible.
    • LoRa band coverage – RU864, IN865, EU868, AU915, US915, KR920, AS923
    • 1x iPEX antenna connector for LoRa
  • GNSS – GPS / QZSS, BeiDou, Galileo, and GLONASS via U-blox ZOE-M8Q GPS SiP; 1x iPEX antenna connect for GPS
  • Host Interface – 3.3V SPI interface on mPCIe edge connector
  • Dimensions –  50.95 x 30.0 x 10.5 mm (mini-PCIe form factor)
  • Weight – 16.3 grams

LoRaWAN Gateway mini PCie CardThe card ships with LoRa and GPS antennas by default. RAK2287 module is meant to be integrated into an existing router or other network equipment to add LPWAN capabilities and can be used in any embedded platform offering a free mini-PCIe slot with an SPI connection.

Thanks to SX1302 chip, the company explains the module can handle Internet-of-Things (IoT) applications that require node density of up to 500 nodes per km² in an environment with moderate interference. If you wonder why a usually fixed gateway would need GPS support, RAK Wireless explains CNX Software it’s for precise time syncing and stamping, not location services:

The GPS is for precise time syncing of the rx/tx windows for Class B and to precise time-stamping in case of asset tracking.

RAK2287 Block DiagramThe company provides a Raspbian based Raspberry Pi 3/4 firmware in the Wiki, but it’s obviously possible to use the card with other Linux hardware, and instructions to build an x86 Linux gateway are also provided. That’s for RAK2247, but it will work for RAK2287 as well.

Since the company focuses their efforts on Raspberry Pi support, and none of the Raspberry Pi foundation board currently come with a mini PCIe socket, there’s also a Raspberry Pi for this purpose: RAK2287 Pi HAT.

RAK2287 Rapsberry Pi HAT

RakWireless RAK2287 mini PCIe LPWAN concentrator module can be purchased on the company’s online store for $89 plus shipping, and the optional Pi HAT adding $27.

Share this:
FacebookTwitterHacker NewsSlashdotRedditLinkedInPinterestFlipboardMeWeLineEmailShare

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX Rockchip RK3588 mini-ITX motherboard

3 Replies to “RAK2287 Mini PCIe LoRaWAN Concentrator Module Supports up to 500 Nodes per km2”

  1. Just out of interest, in case of IoT water/electricity counters, wouldn’t it be more convenient to mount exactly MOBILE gateway on bus/tram/S-bahn and gather readings on stops? Or use patrol cars and parking control vehicles to drive it around? Then GPS module will be VERY useful.

    1. I wonder how well that would work when the nodes are sleeping most of the time.
      The window for a gateway to be in range and for the device to be trying to uplink might be small.

      1. Well, bus/train schedules are pre-determined, aren’t they? Let’s say we have S-bahn train on particular station every 30 minutes and it stays on a station for at least 30 seconds. That gives us 48 communication windows during day-night. Just choose some and try to send, even Deutsche Bahn cannot be late 48 times a day.
