Geniatech SDM3399 RK3399 SBC looks like a PCIe card

There are so many Rockchip RK3399 SBCs that it’s getting boring, but I don’t think I’ve ever seen a Rockchip RK3399 SBC that follows the PCIe card form factor, and that’s exactly what Geniatech SDM3399 offers.

The board/card comes with up to 4GB RAM, up to 64GB flash, and exposes Gigabit Ethernet, USB ports, and an audio jack via the PCIe bracket.

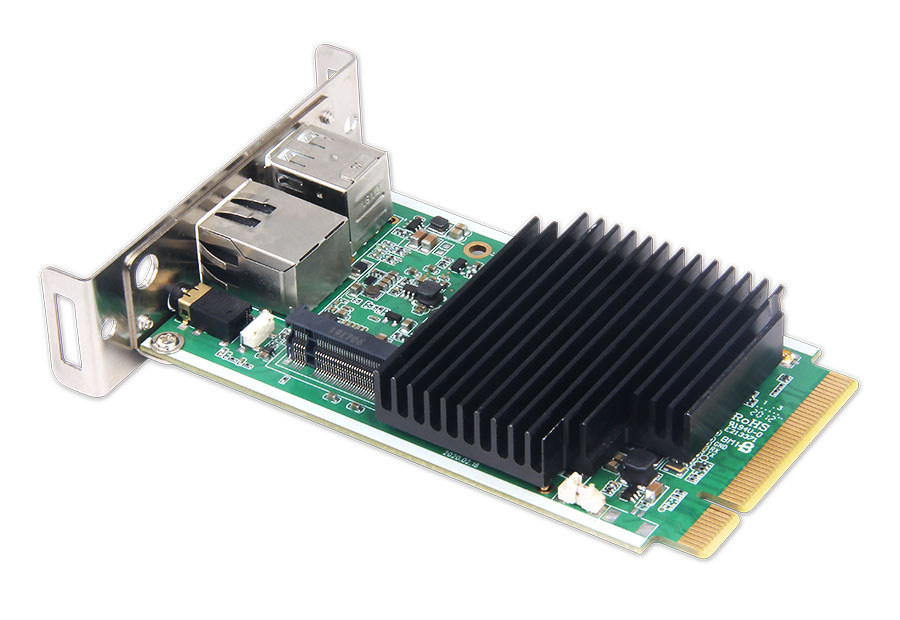

Geniatech SDM3399

Geniatech SDM3399  specifications:

  • SoC – Rockchip RK3399 hexa-core processor with 2x Cortex-A72 cores @ 1.8 GHz, four Cortex-A53 cores @ 1.4 GHz, Arm Mali-T860MP4 GPU 800MHz
  • System Memory – 2GB DDR (4GB optional)
  • Storage – 8GB eMMC flash (16GB/32GB/64GB optional)
  • Audio – 3.5mm audio jack
  • Connectivity
    • Gigabit Ethernet RJ45 port
    • 802.11a/b/g/n/ac WiFI 4 and Bluetooth
  • USB – 2x USB 2.0 ports
  • Expansion – 1x M.2 socket
  • Intel SDM Connector – PCIe x 8 (98-pin) SMT connector with HDMI output, DisplayPort output 2x USB 2.0, 1x serial port
  • Battery port – External Battery
  • Dimensions –  100 x 60 x 25mm

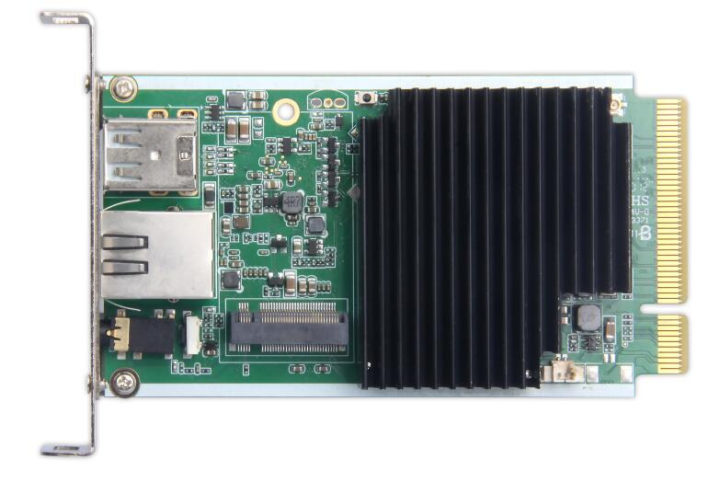

    RK3399 SBC PCIe card

The company provides “Android 7.1 or above” for the board/card, and says it’s designed for digital signage or kiosk display solutions, smart display solutions, and system integration.

But why? That a bit confusing until we realize the keyword in the specifications is SDM which stands for “Standard Display Module”, and I previously wrote about this type of board with Axiomtek SDM300S Intel Apollo Lake Smart Display Module. That’s a standard by Intel designed specifically for digital signage, and available in either SDM-S (Small) form factor used by Geniatech SDM3999, or a larger SDM-L (Large) form factor, for which you can find many examples on Intel’s website.

Geniatech did not provide pricing for the board, but you can find additional information on the product page.

Share this:

Support CNX Software! Donate via PayPal or cryptocurrencies, become a Patron on Patreon, or buy review samples

Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
3 Comments
oldest
newest
uiop
uiop
4 months ago

Interesting form factor. Any idea on what the backplane looks like?
