Eyecam open-source webcam will make you feel spied on

Most people will use webcams connected to a computer or integrated into a laptop without thinking about the possibility of being spied on, but Eyecam will certainly raise awareness and make you feel like somebody is truly watching.

The open-source webcam is shaped like a human eye and acts like one thanks to a Raspberry Pi camera and an Arduino board controlling six servos for eyeball, eyelids, and eyebrows movements.

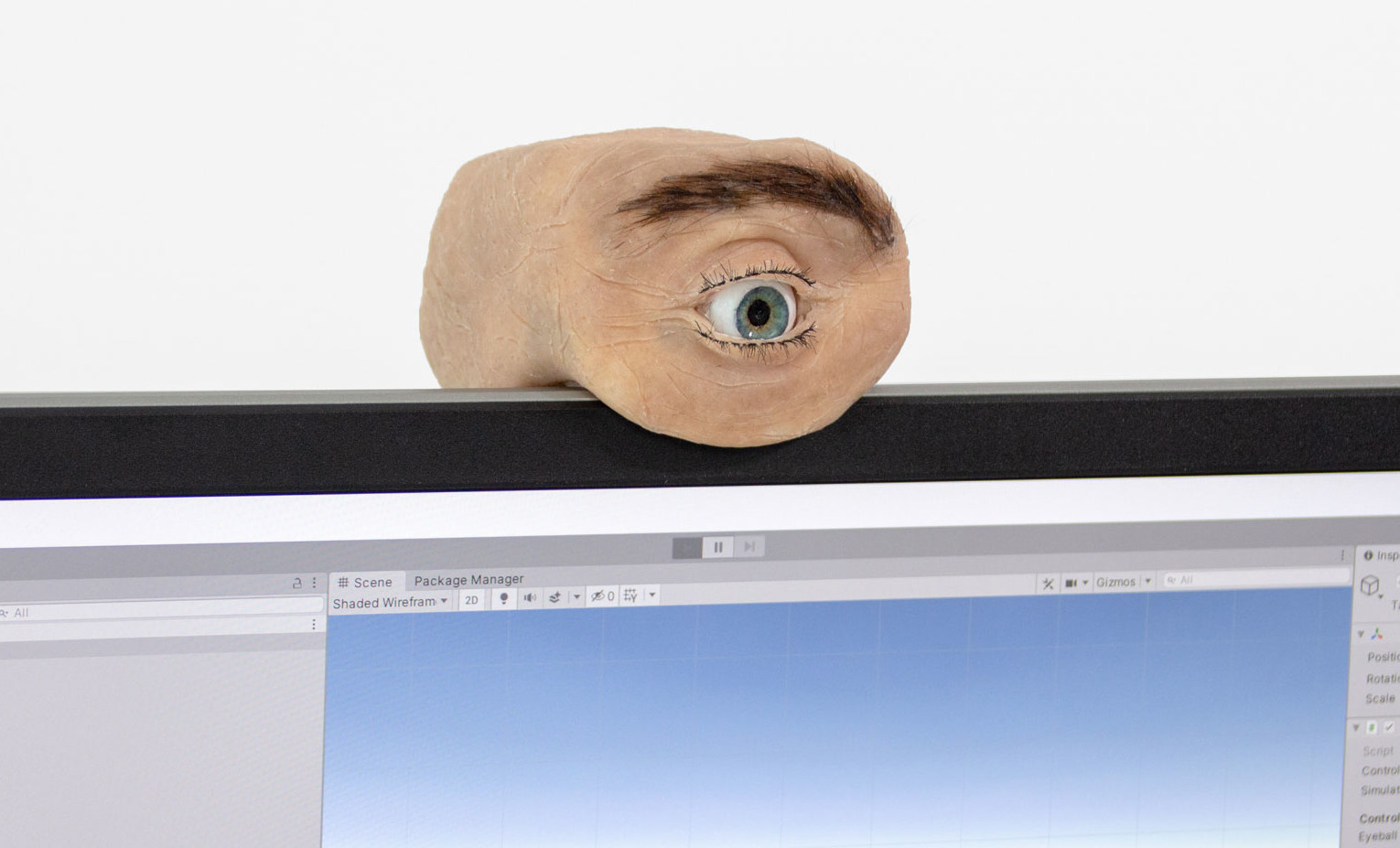

Eyecam eye-shaped webcam

The project was conducted at Saarland University in Germany, and Eyecam looks amazingly realistic – and creepy – with the eyeball and eyelids moving, especially when face tracking is enabled, and expressions are possible with servos controlling the eyebrows.

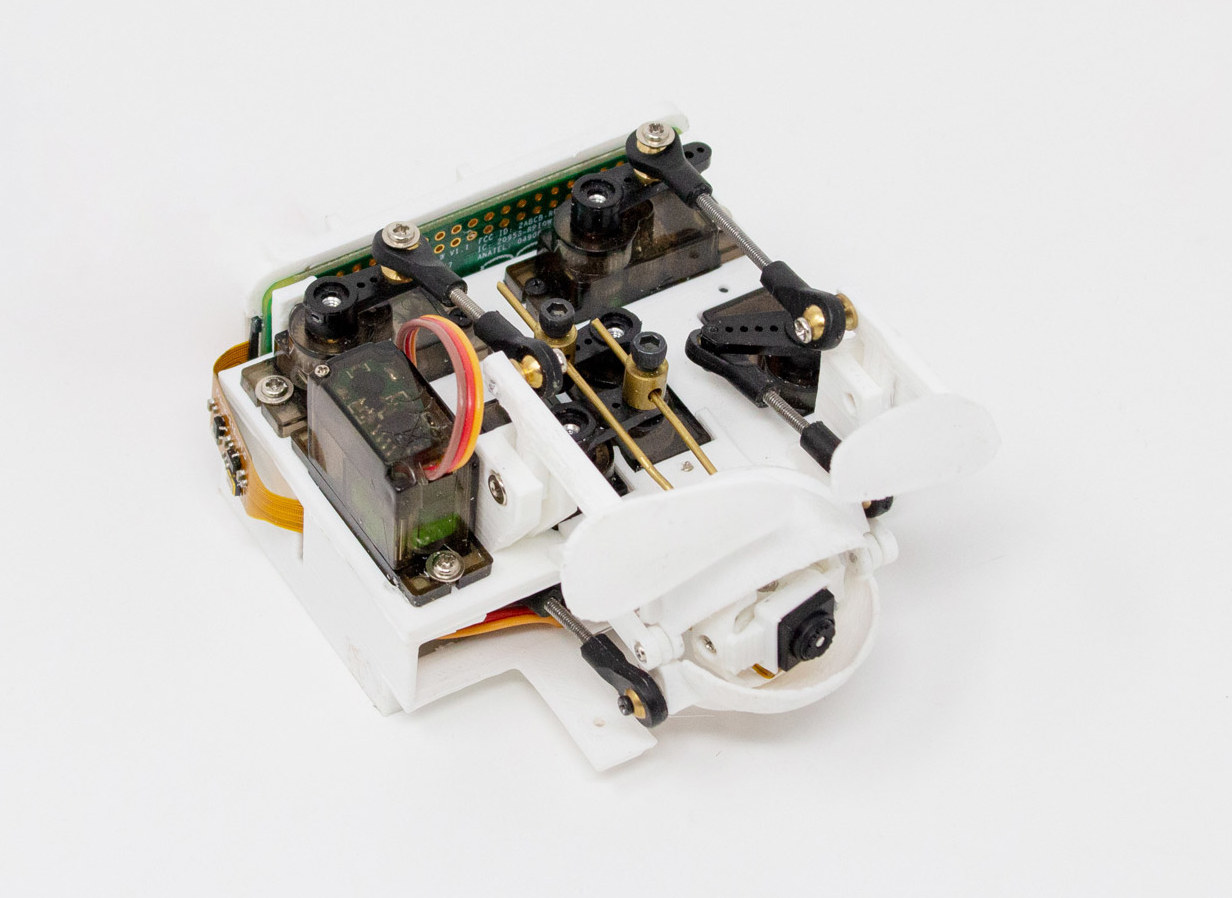

The webcam is comprised of 3D printed parts, a Raspberry Pi camera connect to Raspberry Pi Zero recognized as a USB webcam from the host, and an Arduino Leonardo Pro Micro to control the 6 servo motors. On the software side, an Arduino sketch controls the servos, Raspberry Pi OS Linux distribution runs on the Pi Zero board, and a Unity Control Interface has been designed to visually control the motors and run the computer vision processing.

Arduino & Raspberry Pi Camera EyeCam

Since it’s open-source, everything has been released under an MIT license on Github including the .stl mechanical files, as well as firmware and software. As I understand, everything relies on off-the-shelf boards, so there’s no PCB specific to the project. Marc Tessier, who conducted this research project, also provides additional details on his website, and he will soon upload a video showing how to assemble the webcam.

In the meantime, you can still check out the demo video below.

Via Arduino Blog
