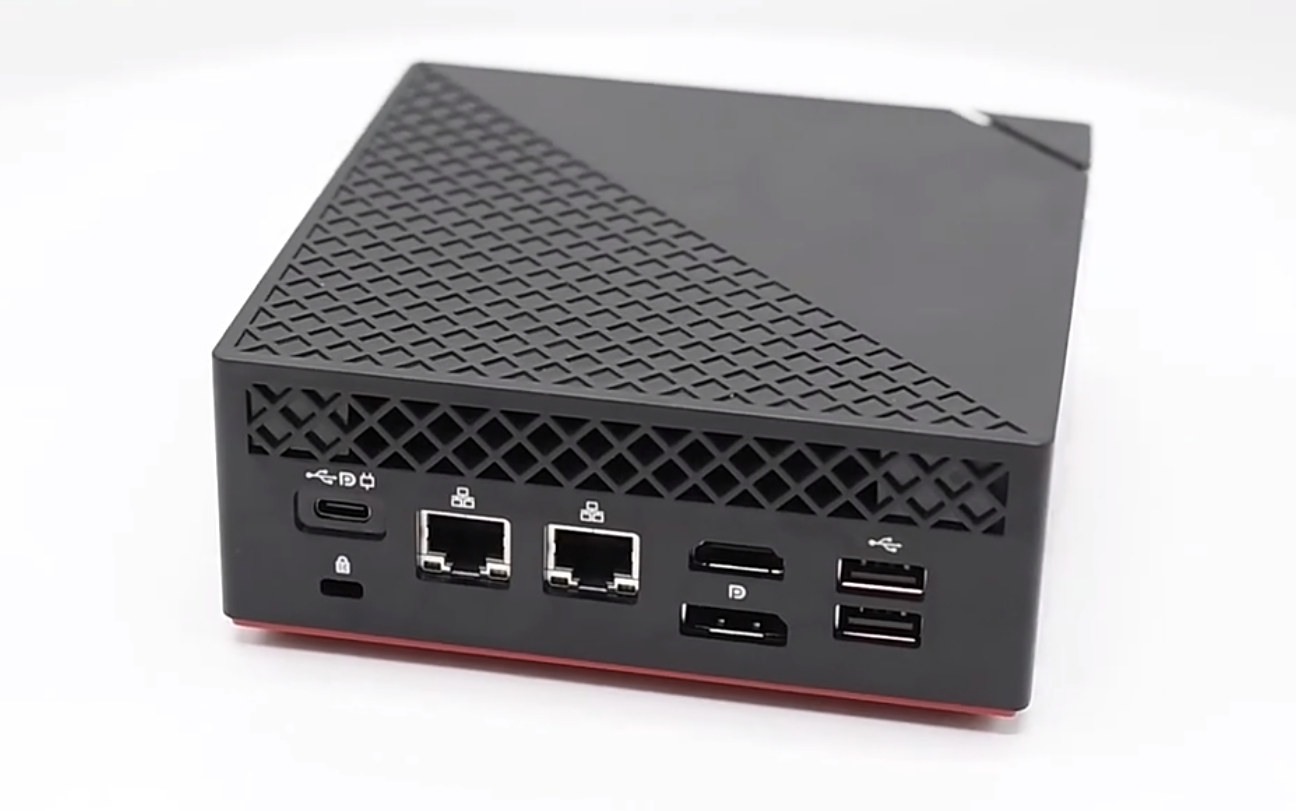

TOPTON D3 mini desktop features AMD Ryzen 5 4500U mobile processor

TOPTON D3 is an AMD Ryzen 5 4500U mini (desktop) PC that adds to the list of compact computers such as ASRock Mars 4000U or ASRock 4×4 BOX-4800U based on 15W AMD Ryzen 4000-series mobile processors.

The mini PC offers two DDR4 SODIMM sockets, NVMe SSD storage, two Gigabit Ethernet ports, WiFI 6, as well as three 4K video outputs through HDMI, DisplayPort, and USB-C ports.

TOPTON D3TOPTON D3 (tentative) specifications:

  • SoC – AMD Ryzen 5 4500U hexa-core/hexa-thread processor @ 2.3 GHz / 4.0 GHz (Turbo) with 11MB cache, Radeon Vega 6 Graphics ; 15W TDP
  • System Memory – 2x SODIMM DDR4 sockets for up to 32GB RAM
  • Storage – M.2 socket for up to to 1TB M.2 2280 NVMe SSD, 2.5-inch SATA bay for up to 2TB SATA HDD (as per default configuration options)
  • Video Output
    • HDMI 2.0 up to 4Kp60
    • DisplayPort up to 4Kp60
    • USB-C up to 4Kp60 using DisplayPort Alt. mode
    • Three independent display supported
  • Audio – 3.5mm audio jack, digital audio via HDMI
  • Connectivity
    • Dual Gigabit Ethernet
    • Support for 802.11ax WiFi 6 and Bluetooth 5.1
  • USB – 2x USB 3.0 ports, 2x USB 2.0 ports
  • Misc – Power button, Kensington lock
  • Power Supply – 65W USB PD adapter via USB Type-C port
  • Dimensions – 133 x 133 x 50mm

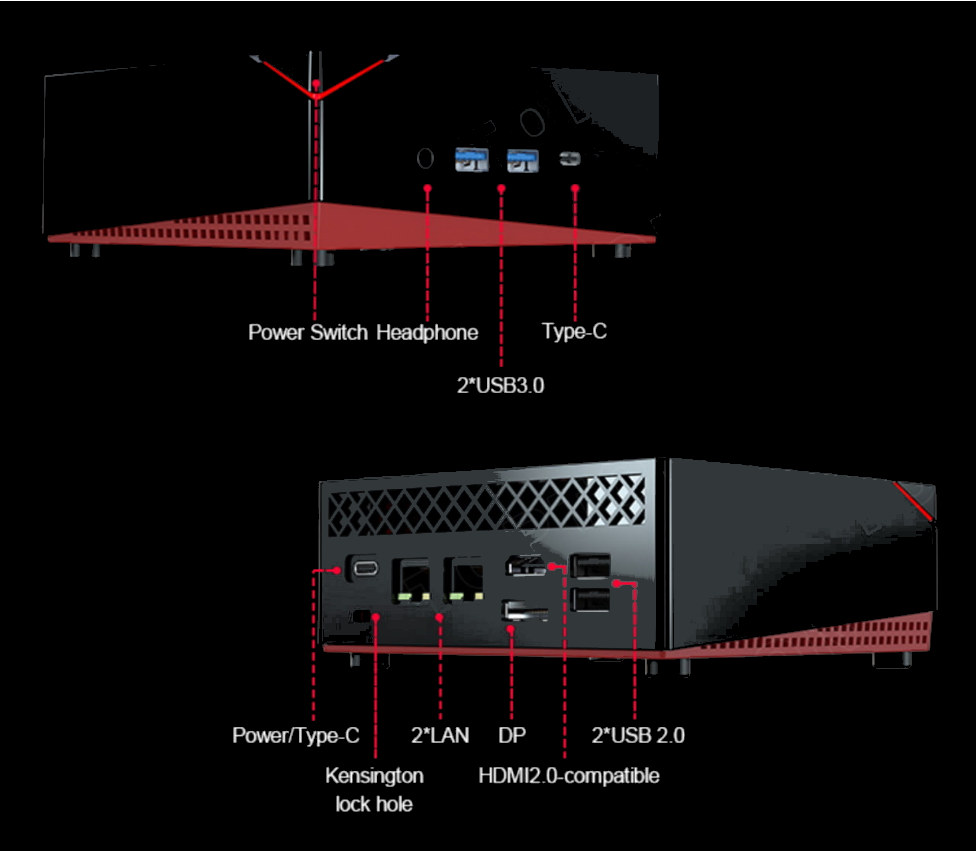

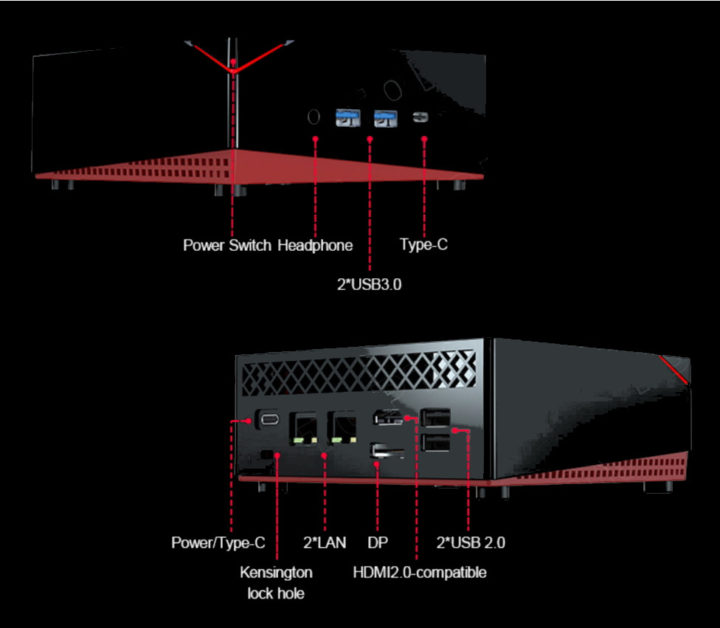

AMD Ryzen 5 4500U mini desktop

The company says the mini PC supports “Windows 10, Linux, Ubuntu”, but Linux distributions may need to be tested just to make sure since TOPTON D3 is offered as a barebone model with optional memory and storage. Whether WiFi is present or not in any of the options remains to be seen…

TOPTON D3 is sold on Aliexpress starting at $475.38 with the “No HD No WiFi” plus “No RAM No WiFi” options, i.e. the barebone model, and up to $959.43 when fitted with 32GB DDR3, a one TB NVMe SSD, and a 2 TB SATA hard drive, and I assume no Wireless module.

Via AndroidPC.es

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX Rockchip RK3588 mini-ITX motherboard
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
2 Comments
oldest
newest
tonny
tonny
3 years ago

Again, overpriced mini pc. A pity. As an alternative for this, we can buy asrock deskmini X300 + ryzen 4350G, plus 16GB RAM and 512GB nvme for the starting price.

sander
sander
3 years ago

$475.38 for a no-name barebone, ex VAT & import, without EU consumer protection? Let me think … no, thank you.
