Keyboardio Model 100 wooden keyboard runs open-source Arduino firmware (Crowdfunding)

Are you bored with keyboard news yet? Keyboardio Model 100 does not quite look like most keyboards though. It’s basically a piece of art with an enclosure made of walnut or maple hardwood, and designed as an ergonomic keyboard with left and right parts with a total of 64 mechanical switches with RGB LEDs and custom-sculpted keycaps.

Keyboardio Model 100 also runs Kaleidoscope open-source firmware programmed in the Arduino IDE, and can be customized by the user with Chrysalis open-source, cross-platform graphical configuration tool. The community is also working on porting QMK firmware to the keyboard.

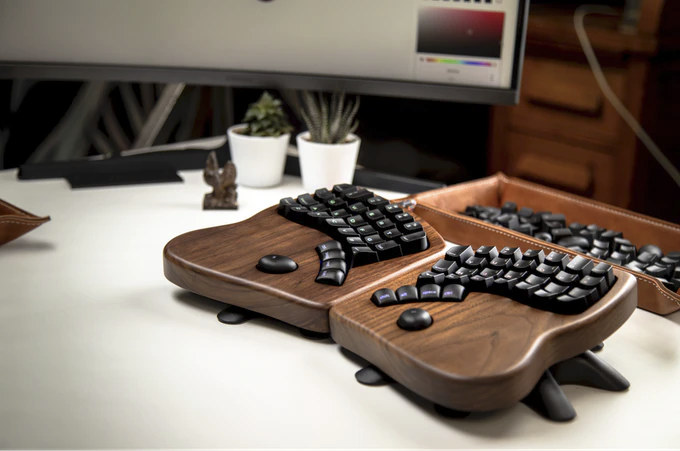

Keyboardio Model 100

The Keyboardio Model 100 ships with QWERTY keycaps, but alternative keycap sets with Dvorak, Colemak, Linear A, or blank legends are available as a add-on. Other accessories include a 1.5 USB-A to USB C cable for connection to the host, a 10cm  RJ45 interconnect cable and a 1m RJ45 interconnect cable to connect the two halves of the keyboard, two octo-stands with mounting screws, a flat interconnect bar, a 7.5 degree interconnect bar, and a screwdriver.

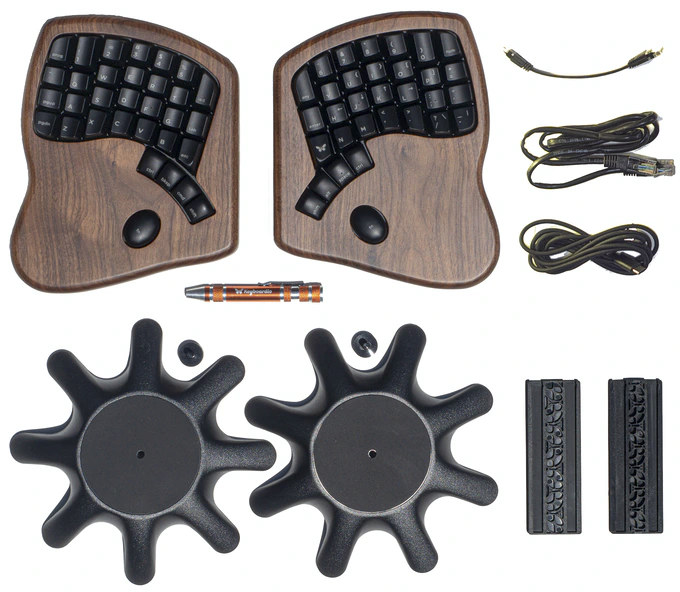

keyboardio model 100 accessoriesThe longer one-meter interconnect cable may feel odd, but one backer from the previous model decided to belt-mount the two halves of the keyboard so a longer cable definitely helps in that case. Talking amount mounting options the bottom of the enclosure features an ISO-standard 1/4-20 camera tripod mount, so that gives a lot of options.

While 64 keys may seem like a low number of keys, Keyboardio claims the Model 100 packs the full functionality of a 104 key keyboard and more thanks to the Fn keys also called the “Palm keys”. The layout may take a while to learn, and you may notice the traditional space bar is gone, instead replaced by a space key on the right half accessible with your thumb.

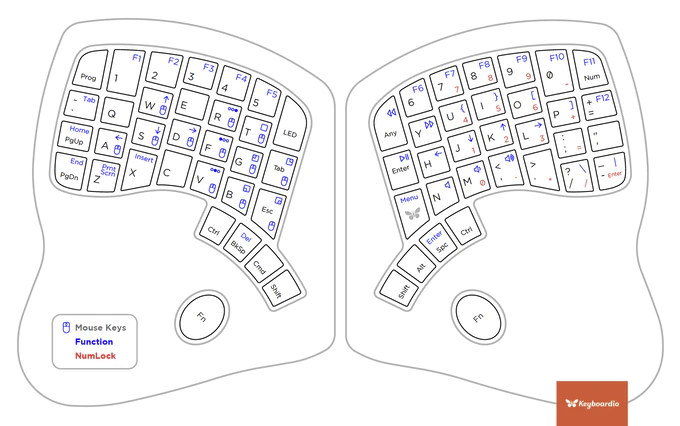

keyboardio model 100 keyboard layout

If you have left-handed you are in luck, as keycaps can be rearranged as your see fit, and besides the firmware being open-source (see Github), the company also provides a graphical user interface to re-arrange the layout and LED themes: Chrysalis. The open-source program is mainly developed in Linux (Ubuntu), but it’s also tested to make sure it works on Windows 10 and macOS Mojave.

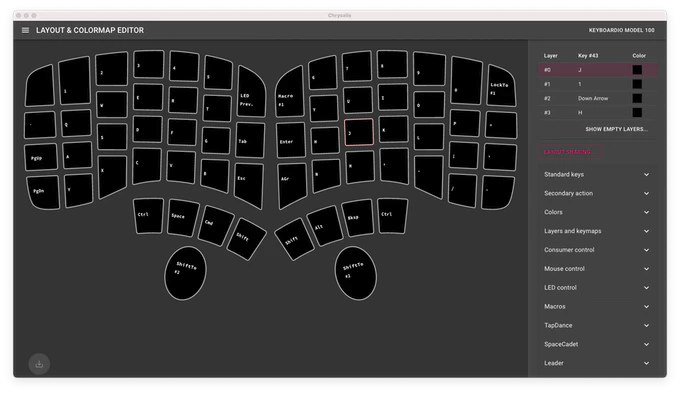

Chrystalis keyboard layout editorKeyboardio Model 100 keyboard has recently launched on Kickstarter and raised around  $435,000 US so far, an impressive amount of keyboard… As we’ve seen in the past high-end, customizable, mechanical keyboards are not exactly cheap, and a pledge of $289 is asked for one Model 100 keyboard. But if you want a truly unique keyboard, throwing $3,000 will allow you to get custom-engraved keycaps legends, any type of mechanical switch, and the wood of your choice. Shipping adds $20 to $75 depending on the destination country, and the keyboards should start reaching backers sometime in January 2022 or later.

Via Hackster.io
