Jupiter Nano – Tiny Cortex-A5 board runs Linux or NuttX RTOS (Crowdfunding)

Jupiter Nano looks like one of those small MCU boards, but instead of a microcontroller, it packs a 500 MHz Microchip SAMA5 Cortex-A5 processor with 128MB RAM capable of running Linux or NuttX operating systems.

The board reminds me of the Adafruit Feather compatible Giant Board made by Groboards, with the same system-in-package, but Juniper Nano offers more I/Os via 48 through holes, and its size is said to be similar to Teensy 4.1 board (but not quite).

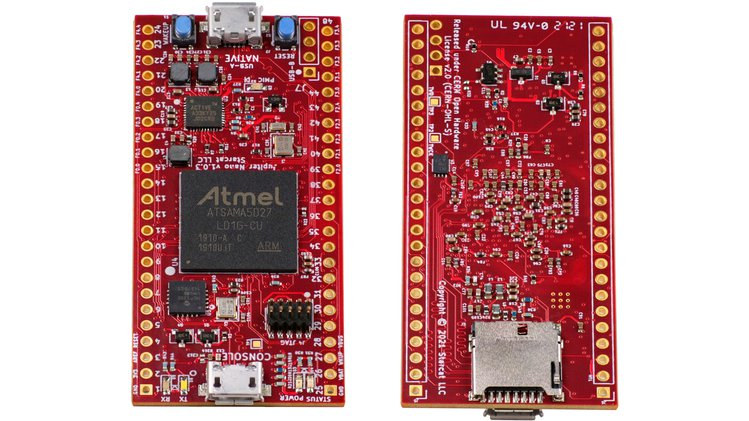

Jupiter Nano

Jupiter Nano specifications:

  • SiP – Microchip SAMA5D27C-LD1G with Cortex-A5 processor running at 498 MHz, 128MB LPDDR2 DRAM
  • Storage – MicroSD card socket (bootable)
  • USB – 1x Micro USB 2.0 host/device port, 1x USB 2.0 host on header
  • Expansion – 2x 24-pin headers with GPIOs, USB, SPI, I2C, up to 4x Flexcom interfaces configurable as SPI, UART or I2C
  • Programming – JTAG port, Micro USB 2.0 FS debug console via MCP2200 USB-UART converter chip
  • Power Supply
    • 5V via USB
    • LiPo battery support via Qorvo ACT8945A
  • Dimensions  –   63.5 x 28.6 mm

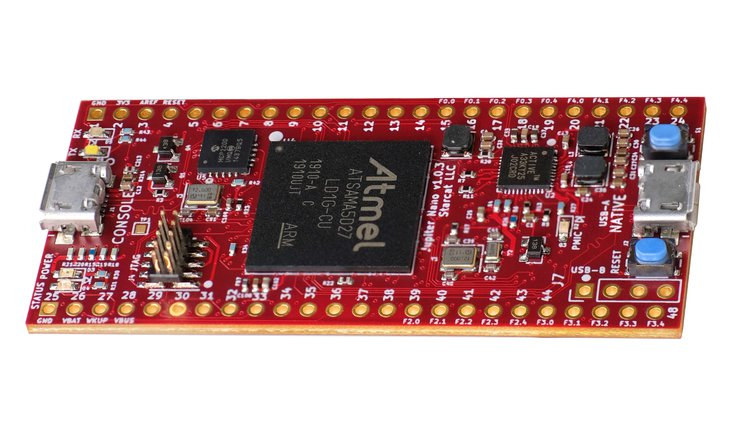

SAMA5 board NuttX RTOSThe board was designed with KiCAD and runs NuttX RTOS or Linux. It will be open-source hardware with KiCAD files, schematics, project files, and software source code released after funding is completed [Update August 7, 2021: The KiCAD files and software tools have been released on Github]. Compared to Arduino Due, the processor is 10 times more powerful and comes with 1280 times more RAM.

Jupiter Nano board has just launched on Crowd Supply, as part of the “Microchip Get Launched” design program, with the price starting at $65 for the early bird special for the first 50 pieces, and going up to $79 after that. Shipping is free to the US, adds $10 to the rest of the world, and deliveries expected to start in December 2021.

Updated: First published on July 5th, 2021, the post was updated on July 31th, 2021 following the launch on Kickstarter”.

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK Pi 4C Plus
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
15 Comments
oldest
newest
sander
sander
2 years ago

How/when is this better than a Raspberry Pi Zero / Raspberry Pi Zero W? If you need open-source hardware? And/or Arduino pin compatibility?

crashoverride
crashoverride
2 years ago

For someone with professional needs (not hobbyist), this offers a significant advantage versus Pi0.

armv7 (Pi is obsolete armv6), NEON, hardware crypto, secure boot/key storage, low power operation and standby, Ethernet MAC, industrial temperature range, real-time OS, etc.

One of the most important features for professional use is the ability to execute code with on-the-fly encryption/decryption. This prevents third parties from copying or tampering with your software.

Jerry
Jerry
2 years ago

Rpi 0 provides venerable community support and long term commitment to mainline Linux development with open source drivers. They’re also pro trans, consider E. Anholt. There are many unfortunate all”winner” boards with simply no support at all. For instance Sinovoip is a pirate maker board company which produces new boards with new SoC and no support at all. Uptons kind of guarantee long term commitment to quality products whenever they launch anything new.

wereet
2 years ago

on rpi zero exist more than 5 real time os

itchy n scratchy
itchy n scratchy
2 years ago

I tried finding temperature range info for rpi, no luck. So wondering how someone can consider it for industrial use outside of the airconditionned operator’s dungeon 😉

Styno
Styno
2 years ago

For e.g. the compute module it’s right there in the datasheet under the Thermal section.

mipl
mipl
2 years ago

How this would be different that his board:
https://www.cnx-software.com/2019/01/14/tiny-giant-board-linux-adafruit-feather/
I would say it also gives indication on the future cost.

wereet
2 years ago

no wifi? ;(
second question if this is small why not power AA or 18650 ?

AndrewBCN
AndrewBCN
2 years ago

The $79 price is ridiculously high: For $9 you can get a Lichee Pi Nano. For $19 you can get a Lichee Pi Zero. For 30€ you can get a PocketBeagle. For $15 you can get a quad core LibreComputer LaFrite with 512MB RAM, just slightly larger. Most Raspberry Pis cost < $79, even an RPi 4 with 4Gb RAM! And of course there are plenty of less powerful, but still very useful MCU boards around, at any price point from $1 to $50 depending on the peripherals. So I don’t see any use case for this particular board, at… Read more »

andelf
andelf
2 years ago

My thoughts exactly. Far too expensive

Theguyuk
Theguyuk
2 years ago

I thought the S805X was end of life ? At least that’s what a Hardkernel forum post suggests.

dgp
dgp
2 years ago

I think the price is a bit high but if say RTC only deep sleep works on this that would be a major step up for a lot of applications where you might otherwise consider the pocketbeagle (RTC sleep doesn’t work on the pocketbeagle because the rtc clock input isn’t broken out IIRC). Not everything is about having a ton of fast cores.

Caio Pedreira
Caio Pedreira
2 years ago

I agree.

jay
jay
2 years ago

Most linux distros are unfit for something this small, unless you are running nanolinux or something. But the new kernels with le9 should help, but until they are out we dont really know. But those kernels claim 2 gb compared with 128 mb its not really a comparison. Agree $79 is stiff, but then again chip shortages have real potential to make sbc life uncomfortable. I havent a clue of nuttx
