How to use PinePhone as a mobile hotspot

I’ve recently started using my Android phone as a mobile hotspot with mixed results so instead, I’ve switched to using PinePhone as a hotspot with Manjaro Arm Linux with Plasma Mobile instead, and performance seems much more stable now.

Early this year, I received Pinephone with PostMarketOS beta, and after playing with it a bit I did not do much with it so far. But in recent times, I’ve been staying in various places without WiFi, so I purchased a lost cost SIM card with a one-year cellular data plan to be able to work from any location using my Android 10 smartphone (Huawei Y9 Prime 2019) as a mobile hotspot. It works most of the time, but sometimes I have massive packet loss, and the only way to recover is to turn off and on the hotspot, and in some cases even reboot the phone. Playing with settings on the phone or my laptop did not help, so instead, I decided to make use of my PinePhone and use it as a mobile hotspot to see if things improved.

[Update: As of August 25, 2021. I recommend Mobian to use PinePhone as a hotspot it’s the most stable OS at this time. See instructions for the Phosh shell]

Installing Manjaro Linux Arm to Pinephone

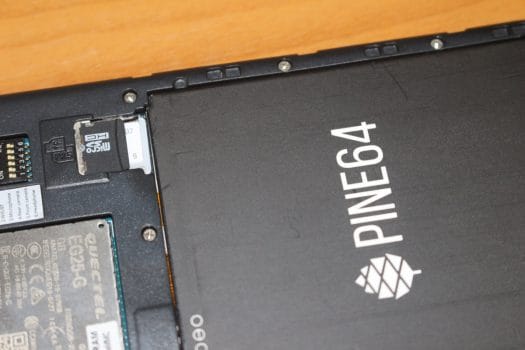

PinePhone SIM Card MicroSD Card
SIM Card & MicroSD card installation in PinePhone

I initially configured the access point and hotspot in PostMarketOS, and it works fine, since that was the beta version, and I was asked to manually upgrade, I decided to go with the default OS for PinePhone: Manjaro Linux Arm with Plasma Mobile. I struggle a bit with the upgrade, but finally, I managed thanks to JumpDrive 0.8 image (pine64-pinephone.img.xz) together with Manjaro-ARM-plasma-mobile-pinephone-20210807.img release on Github.

PinePhone Jumpdrive

I’d recommend doing everything from the command line, especially when using Ubuntu or another Linux distribution to flash the firmware.

Mobile Hotspot configuration with Manjaro Linux Arm

In order to enable the hotspot, we can go Settings->Hotspot, enable it, add an SSID or use the preselected one, plus a password, and click save.

Manjaro Linux Hotspot Configuration

At this point, it’s not working just yet as we haven’t configured an Access Point.  To do so, simply go to Cellular Networks in the settings, then Access Point to add the configuration for your cellular network provider.

Pinephone add access pointThe exact configuration will depend on your provider, but for DTAC I had to set the name (DTAC Internet), APN (, and select the authentication method (None). After configuration, it did not show as Active and as you can see from the icon on the top bar, cellular connectivity did not work.

pinephone hotspot not working

An indeed I got messages like “The modem shows no carrier” and “Limited connectivity”. I went to check info about the modem and SIM card and everything looked properly detected, and I could even receive phone calls, but just not data. There’s a discussion about 4G connectivity issues with Manjaro Linux on Pinephone where other people are having trouble connecting to cellular networks as well.

But I used to oldest trick in the books to make this work… I rebooted the phone!

Pinephone Manjaro 4G access points

Cellular connectivity magically works, and the system automatically added an “Internet” access point without using the manually defined one. Not sure exactly what happened here, but at least the connection (DTAC 10 Mbps) is working fairly well as we can see from the SpeedTest screenshot from my laptop connected to the Internet through Pinephone’s hotspot.

pinephone mobile hotspot speedtest

We have to see how well it performs over time, as the packet losses often occur after a while. I’m at home with broadband fiber now, but I’ll be testing the PinePhone hotspot more thoroughly in the next few days. What is not so reliable right now is the 4G connection, as after the phone went into sleep, and the ” The modem shows no carrier” popped up again.

PinePhone hotspot with PostMarketOS or Mobian (Phosh shell)

In order to have a backup plan, I’ve also installed the latest version of PostMarketOS on a MicroSD card, as it worked well out of the box with the beta version.

PinePhone PostMarketOS 4G data configurationFirst, let’s go to Settings->Mobile to enable Mobile Data. At this point, we’ll be asked to create a new access point with Name, APN, and eventual user name and password.

PinePhone Hotspot PostMarketOS
At this point cellular connectivity should work, we can now go to Wi-Fi setting, tap on the three dots icon on the top right corner,  and select Turn On Wi-Fi hotspot. We’ll be asked to create a password or generate one automatically, before clicking on Turn On to enable the hotspot.

Share this:
FacebookTwitterHacker NewsSlashdotRedditLinkedInPinterestFlipboardMeWeLineEmailShare

Support CNX Software! Donate via cryptocurrencies or become a Patron on Patreon

ROCK Pi 4C Plus

3 Replies to “How to use PinePhone as a mobile hotspot”

  1. I’m been using PinePhone as a hotspot using Manjaro Linux for over 24 hours, and I can confirm browsing the web is much snappier than through an Android mobile hotspot, at least with the mobile phone I used. My girlfriend was also surprised about the speed when using her phone (the same as mine) connected through the PinePhone hotspot.

    SpeedTest will not show much difference, but in Android, I always got some level of packet loss 5% to over 50% when things got bad, but no such issues with PinePhone:

    I have to always connect the phone to a power source for it to work reliably though, but it’s not a big issue for my use case. The main problem is that if the phone loses the signal from the cellular network it won’t reconnect at all. I got this issue in the car when passing through a dead zone, and it would not reconnect until I reboot the phone.

    PinePhone also lost connection with the network in the room yesterday evening. I had to reboot the phone four times to get a working connection. But now I’m been using it for 24 hours in the same location and it’s going strong so far.

    1. So I finally went with Mobian. It’s the most stable OS as of August 2021 to use PinePhone as a hotspot. The cellular connection is stable, and so is the hotspot function. It’s not entirely perfect, as while watching YouTube videos in Firefox, streaming may stop, and I have to reload the page to continue. It does not happen too often though.
