MiniLink IIoT Node – An Arduino compatible RS485 to LoRaWAN node with wireless expansion

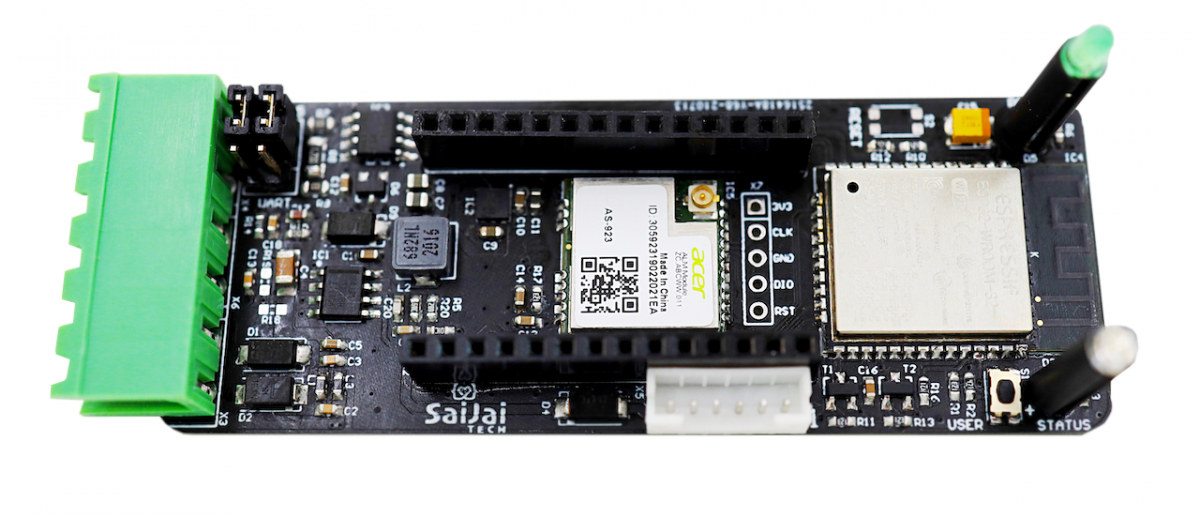

Designed by Thailand-based Saijai Tech, MiniLink IIoT Node is an Arduino compatible board based on either an ESP32 WiFi & Bluetooth SoC or an unnamed Microchip Cortex-M0+ microcontroller designed for Smart Agriculture or industrial applications (e.g. PLC controllers).

The board includes an RS485 interface for sensors or actuators,  an ACER-branded LoRa module, and expansion headers to add an extra wireless module with either LoRa PtP  (P2P, Point-to-Point), NB-IoT, or 3G/4G LTE & GNSS, and some of those add an extra RS485 port.

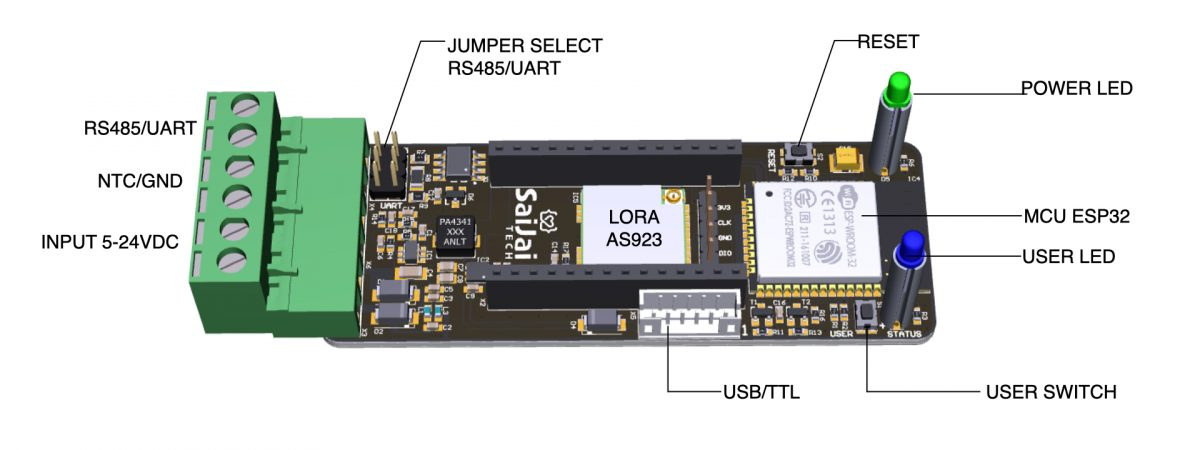

MiniLink IIoT nodeMiniLink IIoT node key features & specifications:

  • MCU (one or the other)
    • Espressif ESP32 dual-core processor  with 2.4 GHz WiFi and Bluetooth LE
    • Microchip Arm Cortex-M0+ microcontroller (probably SAMD21)
  • LPWAN – ACER AS923 LoRaWAN module
  • Sensor interface – RS485 or UART via terminal block (jumper selectable)
  • Expansion – 2x 14-pin header for expansion modules
  • Misc – User & reset buttons, RS485/UART selection jumpers, user and power LEDs, USB/TTL header
  • Power Supply – 5 to 24VDC power supply via terminal blocks
  • Dimensions – 90.2 x 58.0  x 36.3 mm (DIN Rail enclosure)
  • Temperature Range – -30°C~+80°C
  • Humidity – <95%

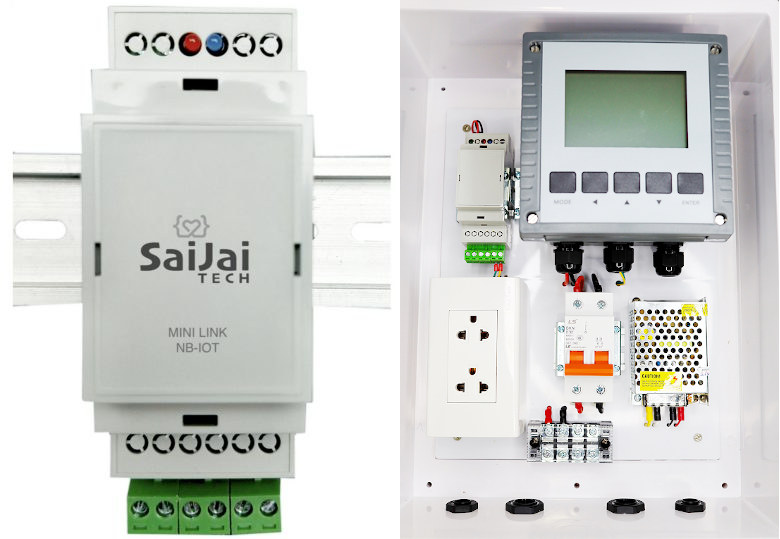

MiniLink IIoT node ESP32 LoRaWANESP32 IIOT node with NB-IoT, DIN Rail

The MiniLink IIoT node board would typically be housing in a DIN rail enclosure for installing in a cabinet. The board has similar features as the M5Stack Atom DTU LoRaWAN kit (ESP32, LoRaWAN, RS485) but offers more options with four expansion boards available:

  • ACER AS923 LoRa PtP communication module with LoRa AS923 (920-925 MHz) and IEEE 802.15.4g (for smart meters) radios up to 19dBm, and an RS485 port
  • NB-IoT communication module based on SIMCOM SIM7020E module with FDD-LTE (B1/B3/B5/B8/B20/B28), up to 62.5Kbps, downlink up to 26.15Kbps, RS485 port
  • NB-IoT communication module based on QUECTEL BC95-G module with FDD- LTE (B1/B3/B8/B5/B20/B28),  up to 125Kbps downlink, up to 50Kbps uplink, eSIM support
  • 3G/LTE/GNSS communication module based on SIMCOM SIM7600E module with LTE-TDD/LTE-FDD/HSPA+ (LTE CAT4), up 50Mbps uplink, up to 150Mbps downlink, and GNSS (GPS/BeiDou/Glonass/LBS)
MINILink-NB-IoT-Shield-Quectel-BC95-G
MiniLink IIoT node with NB-IoT Shield (Quectel BC95-G)

I suppose the ACER AS923 LoRaWAN module would not be soldered on the mainboard if one of those modules is inserted since this would just sit there idle (except for the LoRa PtP shield). Note that Saijai Tech focuses on the Thai market (there was no page in English until I asked last month), and at this time, they only provide hardware using frequencies working in Thailand (e.g. AS923 for LoRa), albeit some like the Quectel BC95-G NB-IoT module can already work globally where coverage is available.

MiniLink IIoT Node Arduino RS485 MOBUS

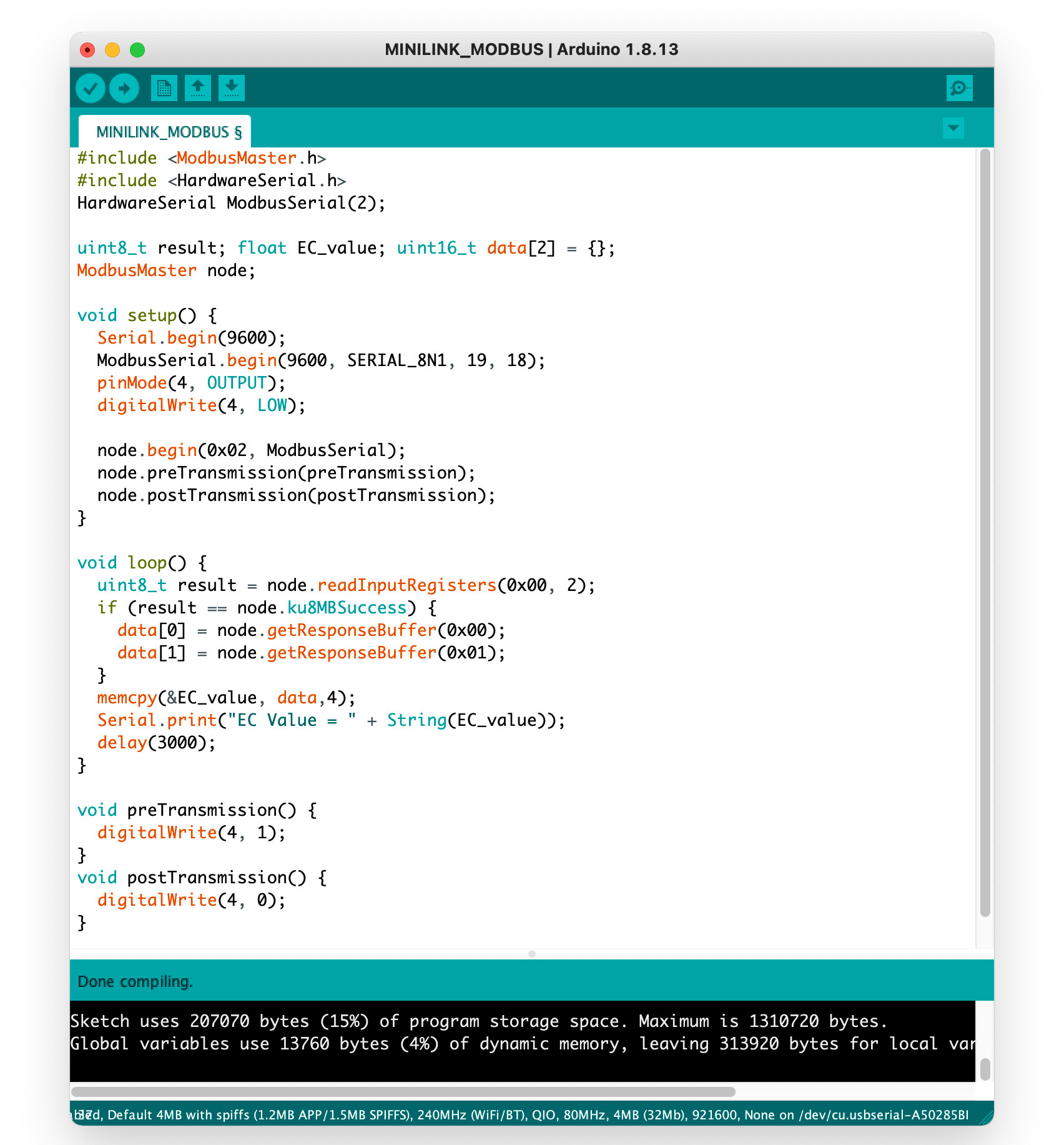

The ESP32 variant can be programmed with the Arduino IDE, the ESP-IDF framework, MicroPython, JavaScript and Lua, while the Microchip Arm Cortex-M0+ based model, or supports the Arduino IDE, MPLAB X IDE, Atmel Studio 7 IDE, and CircuitPython. The company can provide the MiniLink Arduino library to ease the programming of the board with functions to receive/send data over LoRaWAN/ LoRa Ptp, reading data from the RS485 port using the Modbus RTU protocol and more. The code does not appear public, although I found a Github repo, but that’s only for board support for Microchip SAMD21/SAMD51 based solutions from the company.

More details can be found on the product page.

Smart Agriculture LoRa PtP

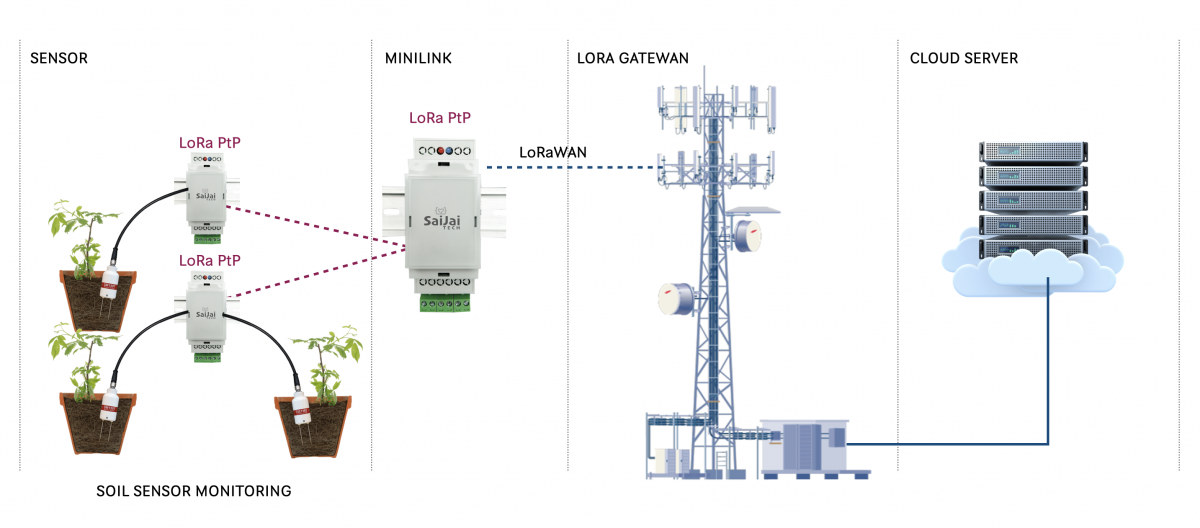

Smart Agriculture use case – Reading multiple soil moisture sensor values over LoRa PtP and send the data to a gateway (and the cloud) via LoRaWAN
