UGOOS AM7 Android 11 TV box with Amlogic S905X4, WiFi 6 is up for pre-order

When Ugoos AM6B Plus 2021 TV box was introduced with Amlogic S922X-J and WiFi 6, we noted the company was working on UGOOS AM7, a more affordable TV box that also supports WiFi 6, and comes with the latest Android 11 running on Amlogic S905X4 processor with 4K AV1 video playback.

UGOOS AM7 is now available for pre-order on Aliexpress for around $128 including shipping. The device includes 4GB RAM, 32GB eMMC flash, 4K HDR video output at up to 60 Hz, Gigabit Ethernet, WiFI 6, and Bluetooth 5.0.

Ugoos AM7

Ugoos AM7 specifications:

  • SoC – Amlogic S905X4 quad-core Cortex-A55 processor with Arm Mali-G31 MP2 GPU
  • System Memory – 4GB LPDDR4
  • Storage – 32GB eMMC flash storage
  • Video Output – HDMI 2.1 up to 4Kp60 with HDR, HDCP 2.2, CEC support;  3.5mm AV port with composite video (and stereo audio)
  • Video Codecs
    • 4Kp60 AV1, VP9, H.265/HEVC, H.264 AVC
    • 1080p60 H264 MVC, MPEG-4, WMV/VC-1,  AVS/AVS+, MPEG-2, MPEG-1,
      Realvideo 8/9/10
    • VGA WebM
  • Audio Output – Analog stereo audio via AV port, optical S/PDIF,  digital audio via HDMI; 5.1/7.1 channel audio pass-through and downmixing
  • Connectivity
    • Gigabit Ethernet RJ45 port
    • 802.11b/g/n/ac/ax 2×2 MIMO WiFi 6
    • Bluetooth 5.0 LE
  • USB – 3x USB 3.0 ports, 1x USB 2.0 port, 1x USB Type-C OTG port (data only)
  • Misc – Power Button, Power LED, RTC
  • Power Supply – 5V/3A via DC jack
  • Dimensions – 117 x 117 x 18.5 mm
  • Weight – 300 grams (TBC)
  • Certifications – CE, FCC

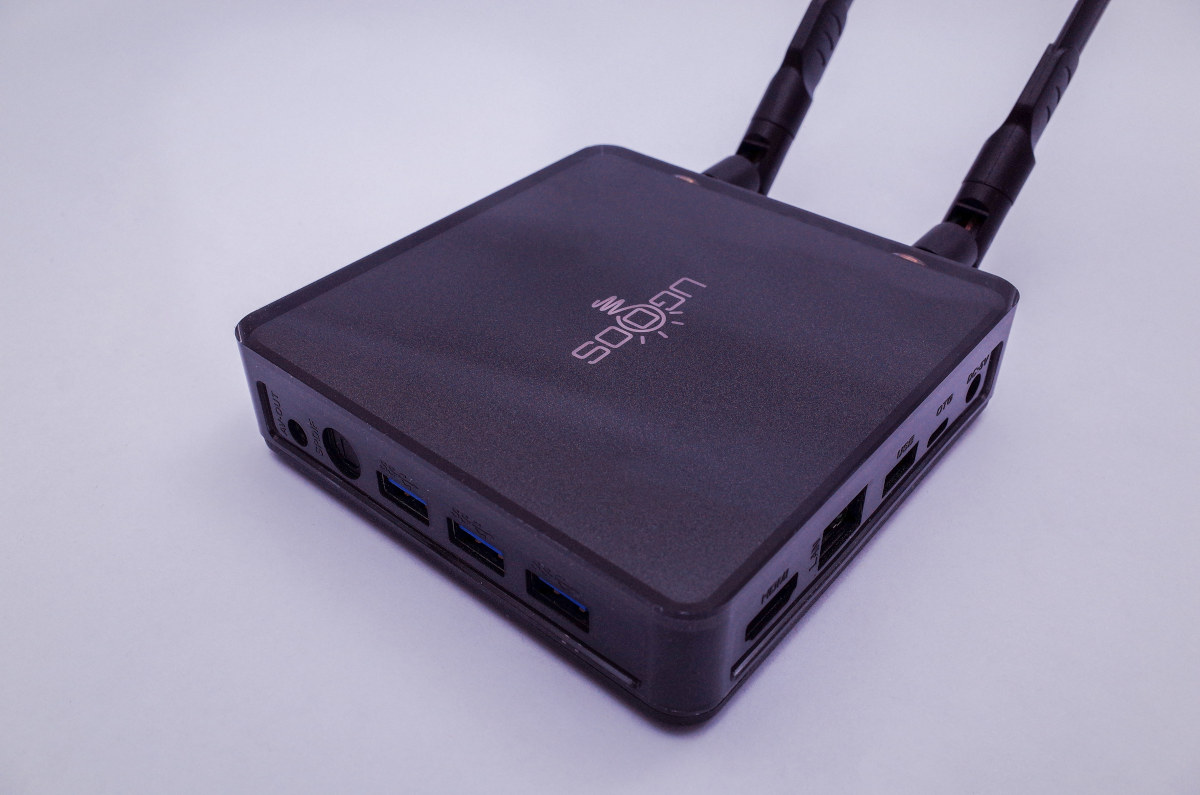

Android 11 TV Box WiFI 6

The TV box runs Android 11.0 with Google Play, OTA firmware updates, and ships with a Bluetooth remote control with voice search and gyroscope by default.  The firmware also comes with the usual “Ugoos Settings” that include root on/off, SAMBA server, wireless assistant (mobile remote control app), gamepad settings, hardware monitor, support for custom user scripts, etc… You can check Ugoos AM6 review for a look at some of those settings. The main advantage of going with WiFi 6 is the ability to steam 4K video over WiFi without buffering.

Note that you’ll pay significantly more than for the comparable Mecool KM6 Deluxe ($80 on Aliexpress) that is still at Android 10, but for specific use cases like business, Android 11 and the custom options may make sense. The 12-minute video shows an unboxing and a first boot (not an actual review) which reveals the standard Android 11 launcher, and not Android 11 for Android TV launcher.

Share this:

Support CNX Software! Donate via PayPal or cryptocurrencies, become a Patron on Patreon, or buy review samples

Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
9 Comments
oldest
newest
nobitakun
nobitakun
1 month ago

Wow, a device with a simple S905X4 for $128? it’s a little bit too high, isn’t it? at least it would have to have 8GB of RAM and 128GB of eMMC for that price. In fact, you can get a device with that SoC and more memory for half the price in the same aliexpress with Android 11 as well, so I don’t really know why that price.

tonny
tonny
1 month ago

Well, it’s by ‘UGOOS’. The brand sells 🙂

TLS
TLS
1 month ago

Have you been living off the grid and without an internet connection for the past year and a half? There’s a global parts shortage and everything is going up in price.

nobitakun
nobitakun
1 month ago

Only for selected brands? as I stated, aliexpress is currently selling tv boxes with better specs with half the price, people is buying NOW. I don’t know how to reply to that 🙁

PhilS
PhilS
1 month ago

Ugoos have always tended to be a bit more expensive but their Android builds do seem to be superior.

Build quality is also likely to be more consistent and the specs on this are better than any current S905X4 out there.

But, right now I would still expect many to make comparison with the likes of the Odroid N2+ and even the Beelink GH-King, with the faster SOC.

What really lets the AM7 down for me is the measly 32Gb storage.

Salvador
Salvador
1 month ago

Does somebody take a look on datasheets? The soc cant address more than 4gb. Neither have 3 usb 3.0 interfaces like this tv box want to expose (SHARED then)

TLS
TLS
1 month ago

USB hubs fixes things like that.

Theguyuk
Theguyuk
1 month ago

Quite right. Mind you just what really needs more than 4GB on a Android TV box ?

Are people doing 4K video editing on S905X3/S905X4 chips in Android, on TV boxes?

Buy your loved RK3366 or Toaster marketed as a 8GB RPI ?

8bit ZX Spectrum used memory banking to get past the 64k limit, but is memory banking worth it, cost effective or really useable on 4GB limit chips?

JJ Smiths
JJ Smiths
1 month ago

Still, nothing new has come out yet in the tv box category, S905X4….it’s like…..it came out like almost 2 years ago? If you want a decent TV box for the money and the best chipset that I am aware of would be and still is the Nvidia shield tv pro, it may cost more….but if you bought this ugoos which I would consider outdated technology before they even produced the plans to build it, then you probably would feel better paying a little more for a tv box that won’t be outdated anytime soon and will always be compatible with… Read more »
