DIY Spotify Box features custom-designed Allwinner V3s SBC

The Spotify Box is a small DIY device based on an Allwinner V3s single-core Cortex-A7 camera SoC and a wooden enclosure designed to play Spotify songs, and not much else…

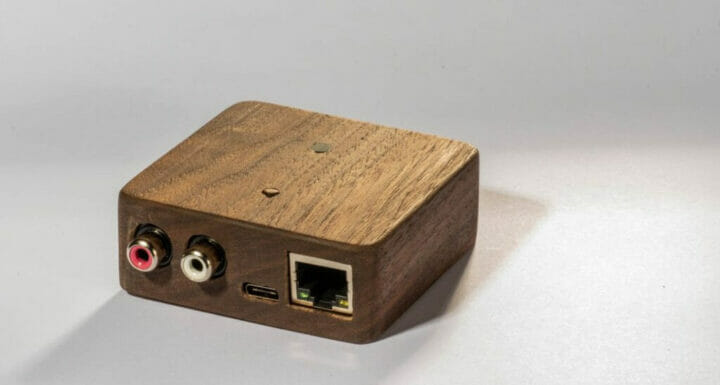

Spotify Box

Spotify Box specifications:

  • SoC – Allwinner V3s single-core Cortex-A7 processor @ 1.2 GHz with on-chip 64MB DDR2
  • Storage – MicroSD card slot for OS
  • Audio – 2x RCA jack for left and right audio
  • Connectivity
    • 10/100M Ethernet RJ45 port
    • 2.4 GHz 802.11b/g/n WiFi 4 and Bluetooth 4.2 via RTL8723DS module
  • Misc – Push button, RGB LED
  • Power Supply – 5V via USB-C port

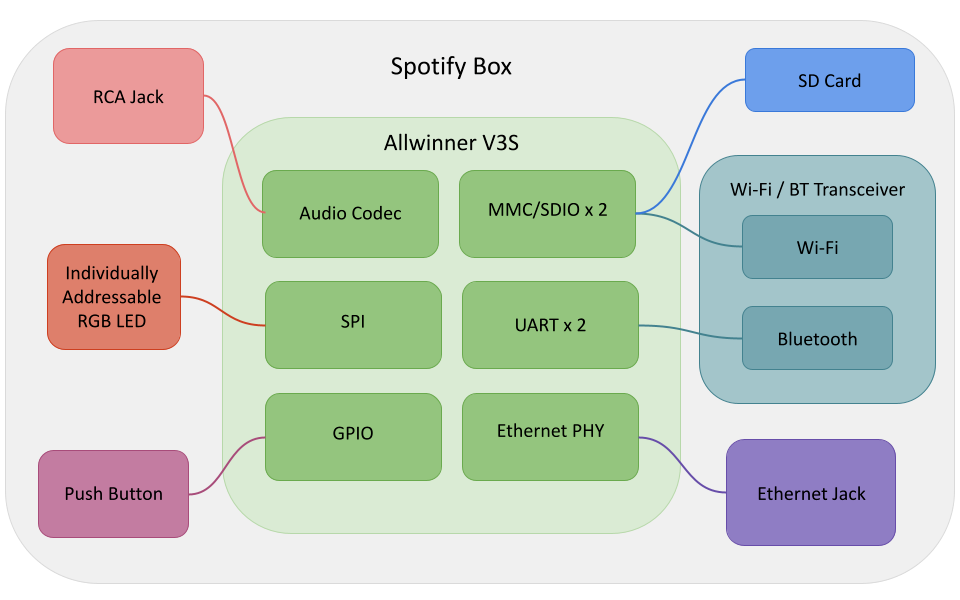

Hardware block diagram
Hardware block diagram

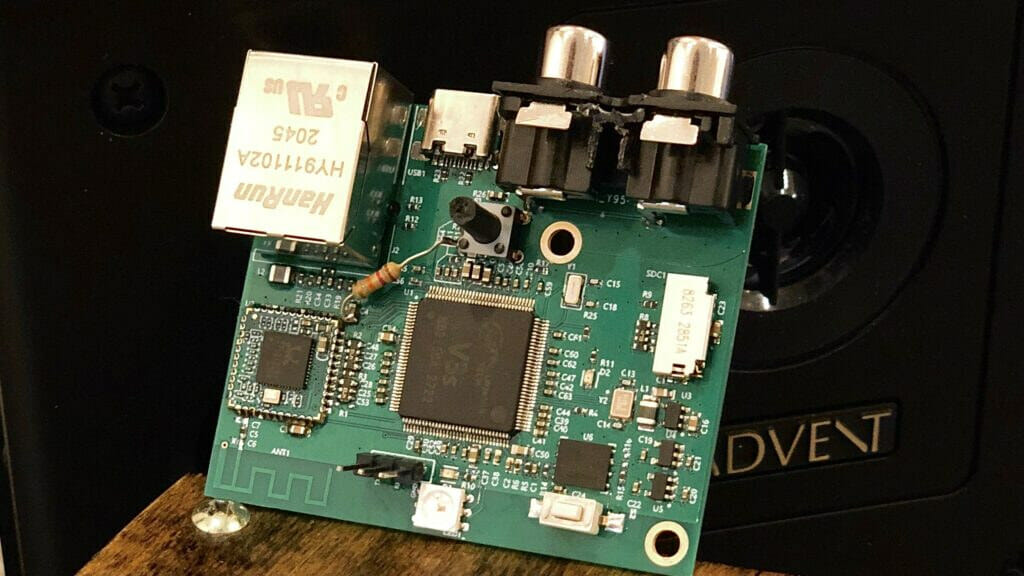

Allwinner V3s Spotify SBC

Evan Hailey selected Allwinner V3s over other processors such as NXP i.MX233 or Microchip SAM9N because it offered better value with integrated RAM, stereo audio codec, and an internal PHY. He put together a Linux image based on what’s available for the LicheePi Zero board, plus the bits to have Bluetooth working through the Bluez library, as well as Spotifyd open-source Spotify daemon.

Evan published a long post explaining the development process, design decisions, and what he learned along the way in terms of hardware design, software, and even making the wooden enclosure. The hardware design files and software have not been released, and he plans to make a second version with a different processor using external RAM.

Via HackaDay (and Thanks to Jon for the tip)

Share this:
FacebookTwitterHacker NewsSlashdotRedditLinkedInPinterestFlipboardMeWeLineEmailShare

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX Rockchip RK3588 mini-ITX motherboard

One Reply to “DIY Spotify Box features custom-designed Allwinner V3s SBC”

  1. Very cool, I used a Pi1B with Dietpi and Raspotify and it’s a very good solution. Mine doesn’t look as good as this though!
