Radxa CM3 – A drop-in Raspberry Pi CM4 alternative

Radxa CM3 is a system-on-module that offers an alternative to the Raspberry Pi CM4, with the same form factor allowing it to become a drop-in replacement, but switching from a Broadcom BCM2711 processor to a Rockchip RK3566 quad-core Cortex-A55 SoC.

Radxa CM3 will work with existing carrier boards for the Raspberry Pi Compute Module 4, albeit some features such as dual HDMI are not available, instead, providing a single HDMI, but the module also offers extra features through an additional 100-pin board-to-board with interfaces such as SATA III and USB 3.0.

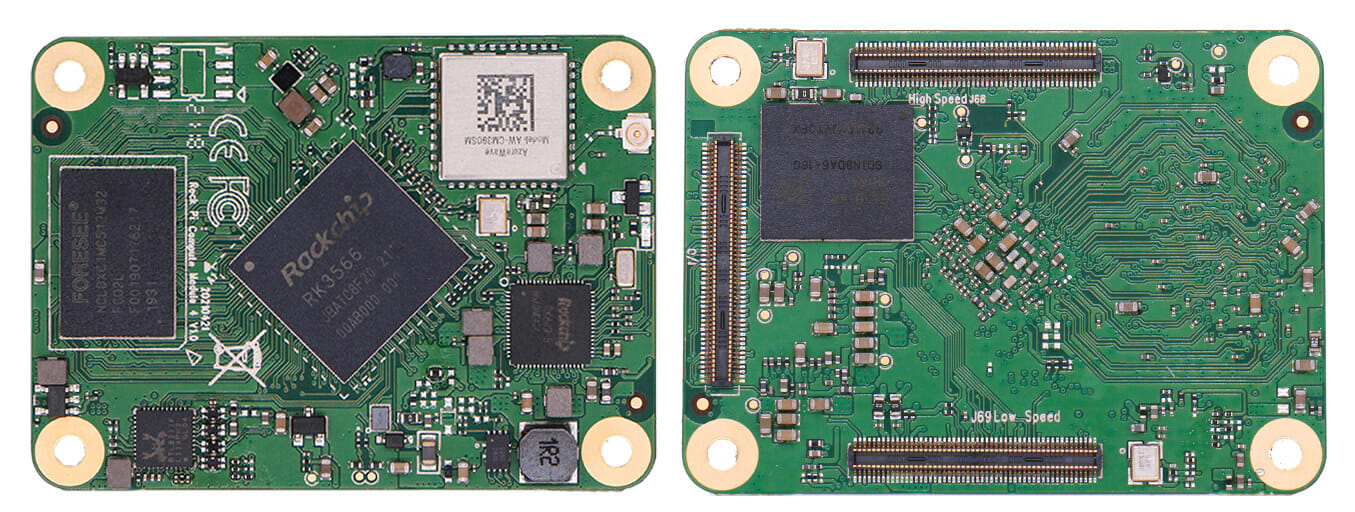

Radxa CM3 Raspberry Pi CM4 alternativeLet’s compare Radxa CM3 specifications to the ones of Raspberry Pi CM4.

Radxa CM3
Raspberry Pi CM4
Rockchip RK3566 quad-core Cortex-A55
processor @ 2.0 GHz with Arm Mali-G52 2EE GPU,
0.8 TOPS AI accelerator
Broadcom BCM2711 quad-core Cortex-A72
processor @ 1.5 GHz with VideoCore VI GPU
System Memory
1GB, 2GB, 4GB or 8GB LPDDR4-3200 SDRAM
None, 8GB, 16GB, 32GB, 64GB, 128GB eMMC Flash memory up to 250MB/s
SDIO 3.0
None, 8GB, 16GB, 32GB, 64GB, 128GB eMMC Flash memory up to 100MB/s
SDIO 2.0 for CM4Lite only
Display interfaces
1x HDMI up to 4K60
2x 4-lane MIPI DSI display interfaces
1x 4-lane LVDS multiplexed with 1x MIPI DSI
1x eDP up to 4K60
2x HDMI up to 4K60
1x 2-lane MIPI DSI display interface
1x 4-lane MIPI DSI display interface
Camera interfaces
1x 2-lane MIPI CSI camera port
1x 4-lane MIPI CSI camera port
Audio codec
No (must be on carrier board)
Gigabit Ethernet PHY (RTL8211F)
with optional IEEE 1588 support
Gigabit Ethernet PHY with IEEE 1588 support
Optional Wi-Fi 5 & Bluetooth 5.0
1x USB 2.0, 1x USB 3.0 (5 Gbps)
1x USB 2.0
1× 1-lane PCIe Gen 2 (5Gbps)
2x SATA multiplexed
with PCIe and USB 3.0 interfaces
50x GPIO:
Up to 8 × UART
Up to 8 × I2C
Up to 4 × SPI
1x SDIO interface
1x PCM
Up to 8x PWM
2x ADC
1.8V and 3.3V support
28x GPIO
Up to 5x UART
Up to 5x I2C
Up to 5x SPI
1x SDIO interface
1x DPI (Parallel RGB Display)
1x PCM
2x PWM channels
Up to 3x GPCLK outputs
1.8V and 3.3V support
Board-to-board connectors
3x 100-pin B2B connectors
2x 100-pin B2B connectors
Supply Voltage
Single 5V input voltage
55 x 40 x 4.7mm

Comparing Broadcom BCM2711 quad-core processor and Rockchip RK3566, as the Cortex-A72 may still be faster on some workloads despite the lower frequency, and some other workloads may be dramatically faster on RK3566, for example for those using Armv8 Crypto extensions missing on all Raspberry Pi, which we have recently seen can deliver shocking performance difference in our recent Radxa Zero vs Raspberry Pi Zero 2 W comparison. Radxa CM3 should also come with an entry-level 800 MOPS AI accelerator, faster eMMC flash (if present), a built-in audio codec, plus the SATA and USB 3.0 interfaces we’ve mentioned in the introduction, as well as some extra GPIOs.

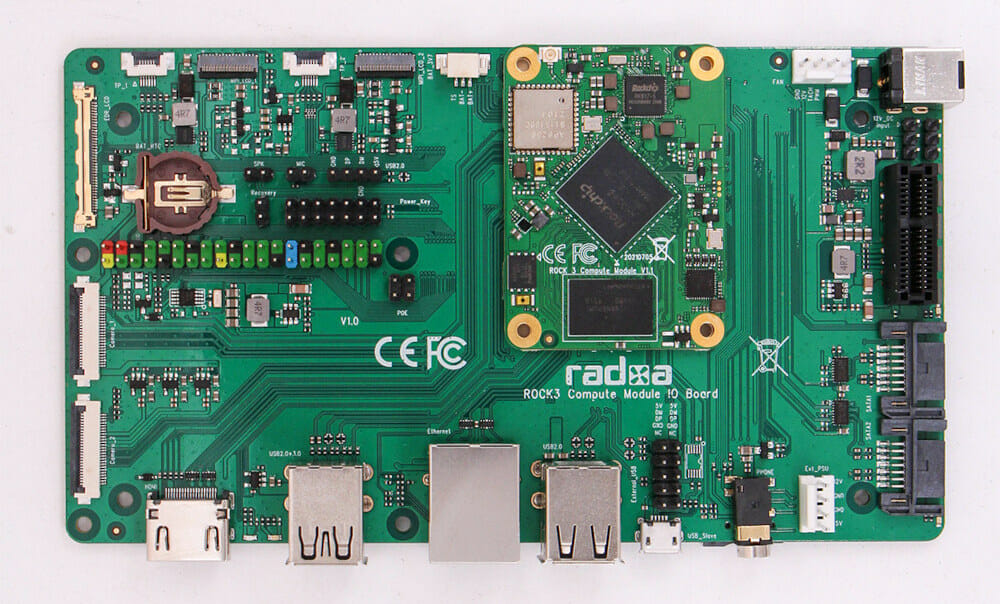

ROCK3 Compute Module IO Board
ROCK3 Compute Module IO Board

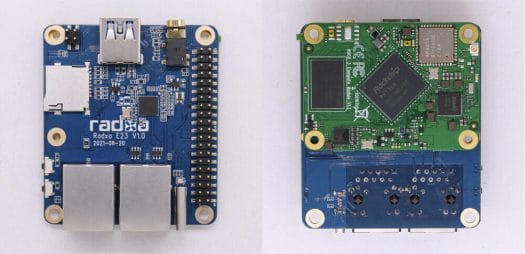

Radxa E23 - minimal-Radxa CM3 carrier board
Radxa E23

Radxa also developed two carrier boards for their CM3 with the full-featured, half mini-ITX ROCK3 Compute Module IO board and the ultra-compact Radxa E23 with two Ethernet ports (2.5GbE + GbE), one USB 3.0 port, MicroSD card slot, and an AV port. Radxa CM3 can also be used on existing Raspberry Pi CM4 carrier boards, and the company has tested the official Raspberry Pi Compute Module 4 IO board, Seeed Studio dual Gigabit Ethernet carrier board, Waveshare CM4 IO Base, as well as Mcuzone CM4 Mini & CM4 Tiny boards as explained in the wiki. Software support will include Ubuntu, Debian and Android.

Besides the extra features, another reason to use Radxa CM3 in your design, or at least as an alternative, are potential Raspberry Pi CM4 supply issues, or more exactly the limited supply of Broadcom and other parts that lead to the recent Raspberry Pi 4 2GB price increase. You would not even need to rely on Radxa as the only backup supplier, since the Pine64 SOQuartz module, also based on Rockchip RK3566 and compatible with Raspberry Pi CM4, should become available soon.

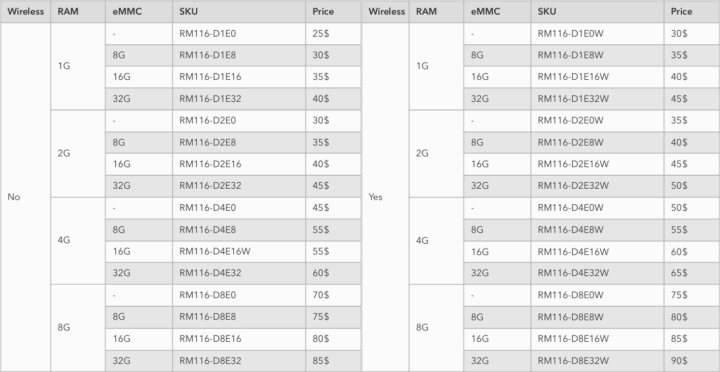

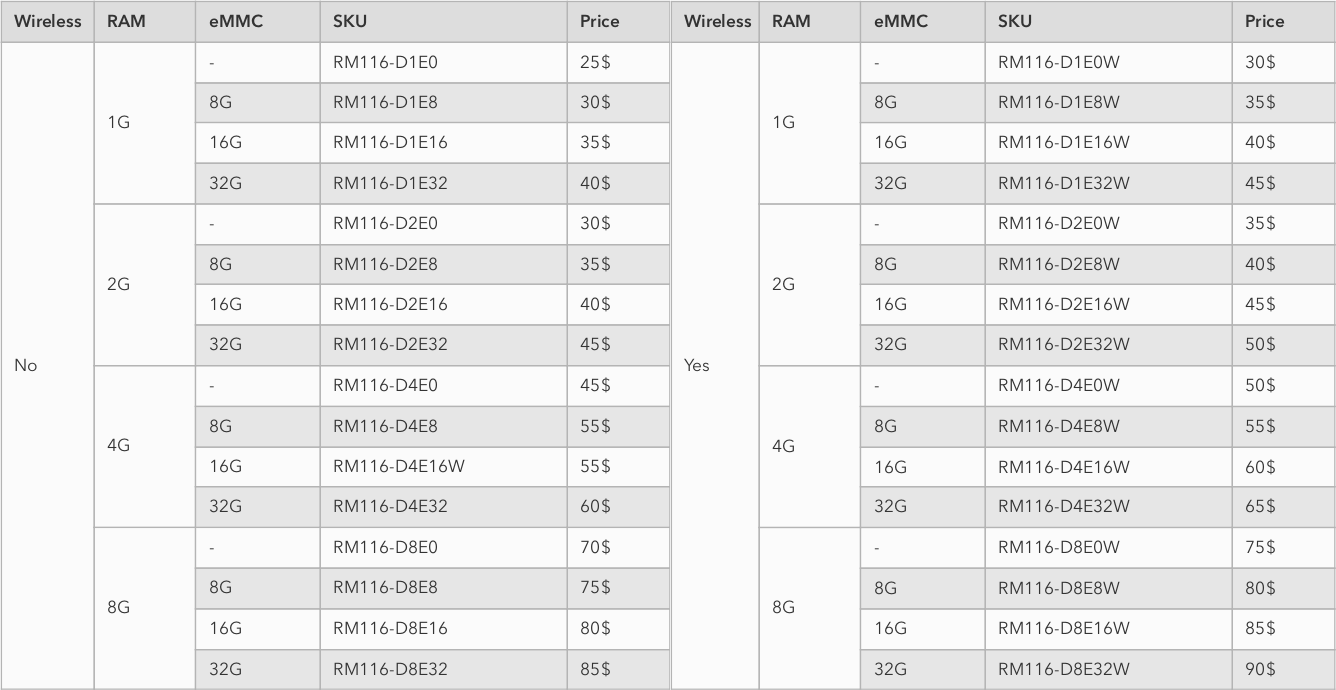

The price list appears to match the one of Raspberry Pi CM4 with Radxa CM3 selling between $25 and $90 depending on the selected options.

Radxa CM3 price

Radxa CM3 will remain in production until at least September 2029 to match the supply needs of the industry. The module does not appear for sale just yet, but interested developers can submit a pull request to receive an early sample.

Share this:
FacebookTwitterHacker NewsSlashdotRedditLinkedInPinterestFlipboardMeWeLineEmailShare

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard

23 Replies to “Radxa CM3 – A drop-in Raspberry Pi CM4 alternative”

  1. Do you have any information which chip provides 2.5GbE Ethernet on the carrier board (well, RTL8125B most probably but just to be sure…)?

    A bit sad that the Radxa E23 does not also expose the SATA lane that’s muxed with USB3 so users have a better storage choice for certain use cases.

    1. I am wondering whether the onboard WIFI can be operated in AP mode, USB3 looks like a good way to hook on 5G modems ( seems that i am addicted in ARM based routers )
      BTW is there any info about the SATA supporting multiplexing? ( Yes i know it is dumb to keep any important data on top, but maybe good for a fast cache server? since this may be the first ARM SBC to rock 2.5G( along with Rock 3B any of which hits the market first ). )

      1. > SATA supporting multiplexing

        Are you talking about SATA port multipliers? Wrt multiplexing: both of RK3566’s SATA ports are multiplexed. One time with USB3, the other time with the single PCIe Gen2 lane.

      1. I wouldn’t call this an “ALT mode” since Alternate modes are an USB-C thing.

        As itchy n scratchy mentioned there might be a way to use some sort of an adapter cable since USB3 and SATA are behind one MULTI-PHY. But I read somewhere about some hassles with Quartz64 or SOQuartz at the physical layer (trace lengths, impedance? – whatever I have zero clue of) so a ‘real’ SATA socket would be nice.

    2. In case Tom Cubie does not reply here. 2.5GbE relies on RTL8125BG.
      There will also be Radxa E25 with two 2.5 GbE ports.

  2. Impressive price for EMMC of 8GB, is not only an alternative to CM4 module, but the main choice, just curious to know module temperature at idle or at low processing.

  3. Will they prepare a yocto layer for it? I have seen it for some other boards from them not not for this one.

  4. So, when they say “drop in”, do they mean we can just plop this puppy onto any CM4 compatible carrier board, and it’ll work? Assuming software of course. I’m thinking the GPU on this might be a step up for one of those handheld retro game console projects that use the CM4. Am I off base?

    1. Yes, that’s correct with some exceptions. If you have carrier board with two HDMI ports, then only one would work when using Radxa CM3. They’ve already tested it with several carrier boards.

    2. I don’t expect it to be a power house on gaming tho. 32 bit bus and a mali g52 2EE… this is not for gaming. Unless you care on efficient power consumption and low thermals, something that rpi4/cm4 doesn’t provide.

    3. I’m not so sure about the GPU, the Videocore VI on RPi4 packs quite a lot of punch, and right now there’s no Vulkan(really useful for emulation and stuff) drivers for Mali GPU’s where the Videocore has a nicely fleshed out driver.

        1. PanVK was started earlier this year, but AFAIK it still hasn’t reached conformance and still leaves a lot of performance on the table, while the V3DV used for RPi GPU has recently reached Vulkan 1.1 conformance and is a lot more optimized.

  5. I see it has 2 DSI ports. Will it support the official Raspberry PI display (given a carrier board that expose DSI)?
