Amlogic T962E2 quad-core Cortex-A55 TV box board supports 4K HDMI input & output

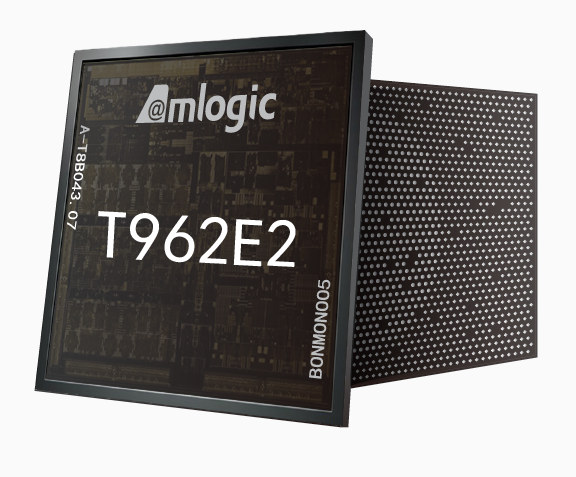

Amlogic T962E2 is an upgrade to the Amlogic T962E quad-core Cortex-A53 SoC we first found in the Alfawise H96 Mini TV box with both HDMI output and HDMI input ports. The new processor offers similar features but comes with more efficient Cortex-A55 cores, a Mali-G31 MP2 supporting modern Vulkan and OpenGL ES 3.2 APIs, and some other improvements including 4K AV1 video playback.

While mostly designed for Smart TVs, I found the Amlogic T962E processor in a TV box board with up to 4GB RAM, 32GB eMMC flash, HDMI 2.1 output, HDMI 2.1 input, Gigabit Ethernet, a wireless module, and allegedly running either Android 8, Android 9, or Android TV.

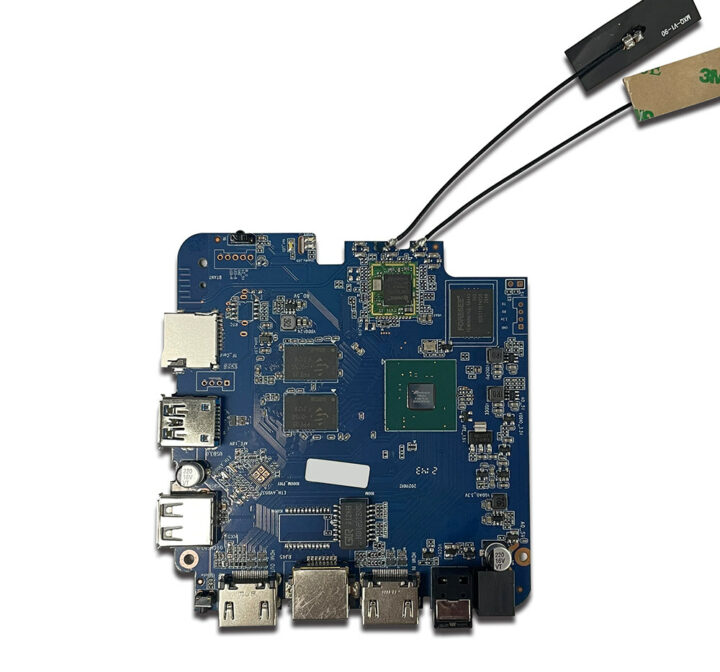

Amlogic T962E2 TV box boardTV box boards specifications:

  • SoC – Amlogic T962E2 quad-core Arm Cortex-A55 processor @ up to 2.0 GHz with Arm Mali-G31 MP2 GPU support OpenGL ES 3.2, Vulkan 1.1 and OpenCL 2.0, 1.2 TOPS AI accelerator, 2x HiFi4 DSP
  • System Memory – 2GB or 4GB DDR4
  • Storage – 16GB or 32GB eMMC flash + MicroSD card slot
  • Video I/F
    • HDMI 2.1 output with eARC support up to 4Kp60
    • HDMI 2.1 input up to 4Kp60 (Note: T962E2 specs, HDMI version and resolution not specified for the board)
  • Audio I/F – HDMI In/Out, optical S/PDIF
  • Video codecs
    • 4Kp75 10bit AV1/H.265/VP9 decoding
    • 4Kp30 H.264 decoding
    • 1080p30 H.264 encoding
    • HDR 10/10+, and Dolby Vision support (T962E2 specs)
    • Widevine DRM, optional support for Verimatrix/PlayReady
  • Connectivity
    • Gigabit Ethernet
    • Dual-band 802.11 b/g/n/ac WiFi 5 2×2 MIMO, Bluetooth 5.0 Classic/LE via UNISOC UWE5621DS module
  • USB – 1x USB 3.0 port, 1x USB 2.0 port
  • Misc – IR receiver, built-in RTC…
  • Power Supply –  5V/2A via DC jack
  • Dimensions – 10 x 10 x 1.9 cm
  • Weight – 130 grams

Amlogic T962E2

As we can see on the Amlogic website, the T962E2 also supports digital and analog TV tuners (ATSC, USQAM, DVB-C, NTSC, PAL, SECAM) and comes with a PCIe Gen 2 interface multiplexed with USB 3.0. The company lists two applications for the processor: Split smart TV and Smart Home so I’d assume it could be integrated into a Smart Home gateway that also serves as media center and smart speaker. That’s a nice upgrade compared to the earlier T962E.

ONENUTS/Shenzhen Tomato informed me about the board and is selling it to other companies. They provide an enclosure, but I won’t show it because it’s clearly not for this board as only one HDMI port is shown. We have zero information about the software support for the HDMI input port, but that should mean 4Kp60 PVR function, picture-in-picture, and possibly local network broadcasting. A few more details may be found on the product page.
