CrowPi L Raspberry Pi 4 laptop review – Part 1: Unboxing and teardown

Elecrow CrowPi L is an 11.6-inch laptop shell based on Raspberry Pi 4 designed for STEM education with optional electronics modules and tutorials. That’s an evolution of the CrowPi 2 laptop I reviewed in 2020 with a thinner design and more flexible since the electronics modules are optional, so it can serve the market of people just wanting a Raspberry Pi 4 laptop.

The company has sent me a full “CrowPi L Advanced Kit” for review with the CrowPi L laptop fitted with a Raspberry Pi 4, as well as the Crowtail Starter Kit for Raspberry Pi.

CrowPi L Advanced Kit Unboxing

CrowPi L laptop & Crowtail Starter Kit for Raspberry Pi Review
Let’s check out the laptop package first.
CrowPi L Raspberry Pi Education Laptop Review

Since in this design, the laptop comes with a battery, and mine already had a Raspberry Pi 4 installed, I could just turn it on immediately. Accessories include a wireless mouse, a 12V/2A power supply (with USB Type-C plug… this should be illegal IMHO as it could fry 5V-only hardware), a Grove shield with a ribbon cable to connect to the Raspberry Pi 40-pin GPIO header, and a simple user manual that’s mostly useful to install your own Raspberry Pi.

CrowPi L keyboard layout

The QWERTY keyboard layout is accompanied by a touchpad with two mouse buttons and a description of the GPIO pins that should be convenient while playing with Grove modules. There’s also a power button and LED.

Raspberry Pi 4 laptop Ethernet USB
One side comes with the Gigabit Ethernet port, the two USB 3.0 ports, and one USB 2.0 port from the Raspberry Pi 4 SBC, with the other USB port hidden as it is used internally as we’ll see in the teardown part.

Raspberry Pi 4 laptop GPIO audio HDMI-power

The other side features the GPIO connector, a 3.5mm AV jack, HDMI output, and a USB Type-C port for power.

CrowPi L grove shield
That’s the laptop connected to the Grove shield with the provided ribbon cable, and we’ll check that in more detail in the second part.

CrowPi L laptop mouse
The wireless mouse does not use Bluetooth, and instead comes with its own 2.4GHz RF dongle, and you’ll need to add an AA battery for power.

CrowTail Starter Kit What's in the box?
Time to have a look at the Crowtail Starter Kit for Raspberry Pi which comes with plenty of modules, some cables, and a description of each module on the package.

Raspberry Pi 4 Education Laptop electronics modules
The kit includes LEDs, various sensors, a servo, a micro-speed motor, a remote control, a battery case, an LCD display, and more.

Crowtail Starter Kit for Raspberry Pi User Guide

If we lift the plastic tray, we’ll see the user guide with the 20 lessons part of the kit.

CrowPi L Laptop tutorial

I’ve taken a photo of two pages from the book as shown above to give a sneak peek of what’s inside, but I’ll try at least one lesson in the second part of the review.

CrowPi L laptop teardown

Let’s now do a teardown, that will also serve as a “reverse” assembly guide for people who will only purchase the laptop shell and install their own Raspberry Pi 4. Such users will not need any screwdrivers.

CrowPi L teardown

The first step is to take out the cover at the top right cover.

Raspberry Pi 4 installation CrowPi L laptop shell

It will show the GPIO expansion board with its heatsink placed on top of Raspberry Pi 4, and inserted in both the 40-pin GPIO header from the SBC, and an additional 40-pin header on the laptop’s motherboard. Let’s take that board out, and disconnect the Raspberry Pi 4 from the board with two HDMI ports and USB-C. You’ll also notice a 4-pin USB Type-A connector on the right that was inserted into the top USB 2.0 port from the Raspberry Pi 4 board.

Elecrow CrowPi L Raspberry Pi 4 enclosure

Another interesting point is that there are three microSD sockets in the laptop. One is called “Extend storage” on the motherboard, and there are two more on the microSD card expansion with an A/B switch that allows people to boot the laptop to another operating system, for instance, RetroPie.

Dual microSD adapter for Raspberry Pi

The reverse installation guide ends here, and we’ll now go into the actual teardown. We’ll need a 6-lobed, star-shaped (Torx) screwdriver to remove the screws from the battery cover.

CrowPi L 5000mAh battery

That reveals a replaceable 5,000 mAh, 18.5 Wh battery, which I can’t find for sale right now, but hopefully will be in the future for people who may need to replace it. The next step is to remove the battery, loosen a few more screws, and clip out the plastic cover. That step left some marks/light damage on the cover, but I could have a full look at the motherboard and two speakers.

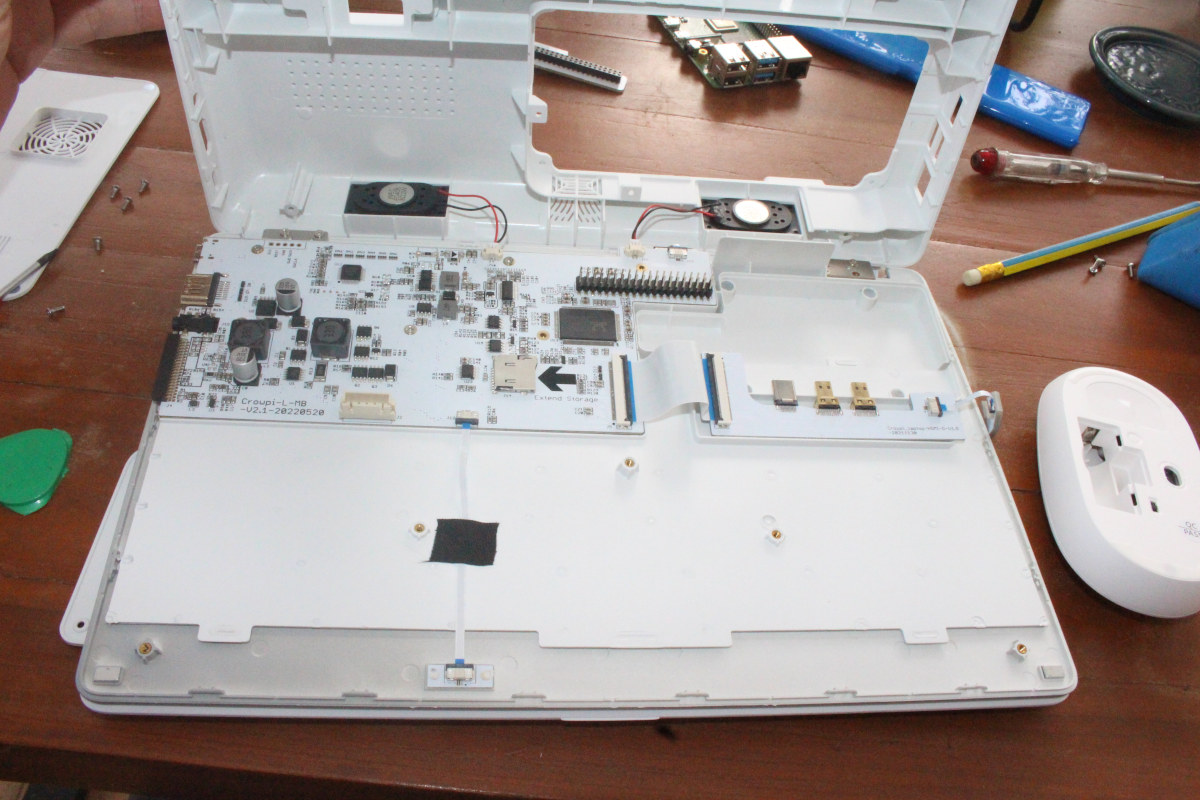

Raspberry Pi 4 laptop speakers mainboard

The larger chip on the motherboard is the Realtek RTD2556 display controller that converts HDMI signals into “LCD” signals for the 11.6-inch display., while the Sigma Micro SG8F7581 8-bit 8051 microcontroller clocked at 48 MHz handles the keyboard.

CrowPi-L-MB-V2.1 board

If we look at the other side there’s a GL850G USB 2.0 hub controller that should help control the “Extend Storage” microSD card via another chip, and probably other features such as the touchpad.

Raspberry Pi 4 Laptop motherboard

That will be all for today. I’d like to thank Elecrow for sending the CrowPi L laptop, Raspberry Pi 4 (8GB RAM), and Crowtail Starter kit for review. The CrowPi L Advanced Kit reviewed here sells for $442 plus shipping, but if you only need the laptop shell, available in white or black, that would be $203.15 plus shipping. The kits are also available on Crowpi.cc with pricing there including shipping.

Continue reading: “CrowPi L Review – Part 2: Learn programming and electronics with a Raspberry Pi 4 laptop“.
