ZOTAC ZBOX PI336 PICO mini PC gets an Elkhart Lake upgrade with Intel Celeron N6211

The last time we wrote about the ZOTAC ZBOX PICO PI336 mini PC it featured an Intel Celeron N4100 Gemini Lake processor, but the company appears to have launched an upgrade with an Intel Celeron N6211 Elkhart Lake processor instead.

The new ZBOX PI336 PICO fanless mini PC also gets more storage up to 128GB eMMC flash, but the rest of the specifications remain pretty much the same with 4GB RAM, HDMI & DisplayPort video outputs, three USB ports, Gigabit Ethernet, WiFI, and Bluetooth, although some of the interfaces got a version bump for additional performance.

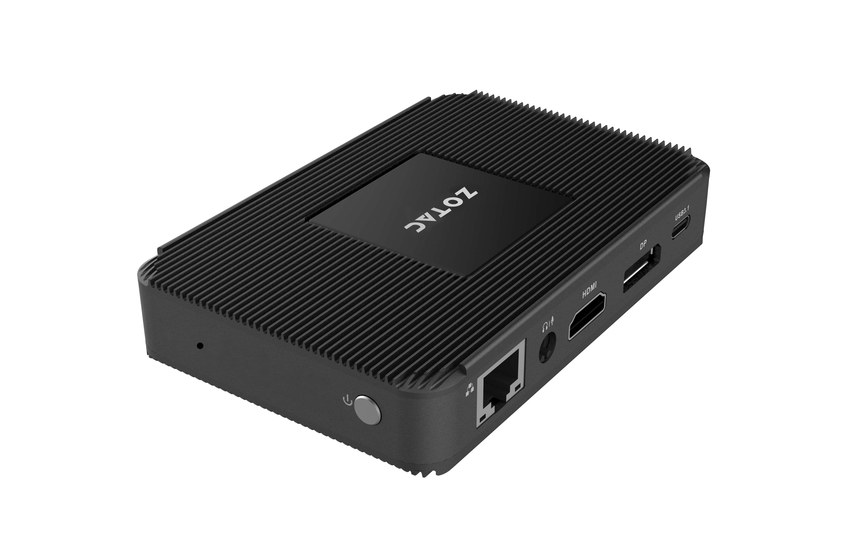

Intel Celeron N6211 mini PC

ZOTAC PI336 specifications:

  • SoC – Intel Celeron N6211 dual-core Elkhart Lake processor up to 1.2/3.0 GHz with 16EU Intel UHD Graphics @ up to 750 MHz; 6.5W TDP
  • System Memory – 4GB LPDDR4x 3200MT/s
  • Storage – 128GB eMMC flash, microSD card socket
  • Display
    • HDMI 2.0 up to 3840×2160 @ 60Hz
    • DisplayPort 1.4 up to 4096×2160 @ 60Hz
    • Dual independent display support
  • Audio – 3.5mm headphone/microphone jack, digital audio output via HDMI/DP
  • Connectivity – Gigabit Ethernet, 802.11ax WiFi 6E, Bluetooth 5.2 (AX210 module)
  • USB – 2x USB 3.1 Gen 2 ports, 1x USB 3.1 Gen 2 Type-C port
  • Power Supply – 5V/4A via power barrel jack
  • Dimensions – 115 x 76 x 20.7mm

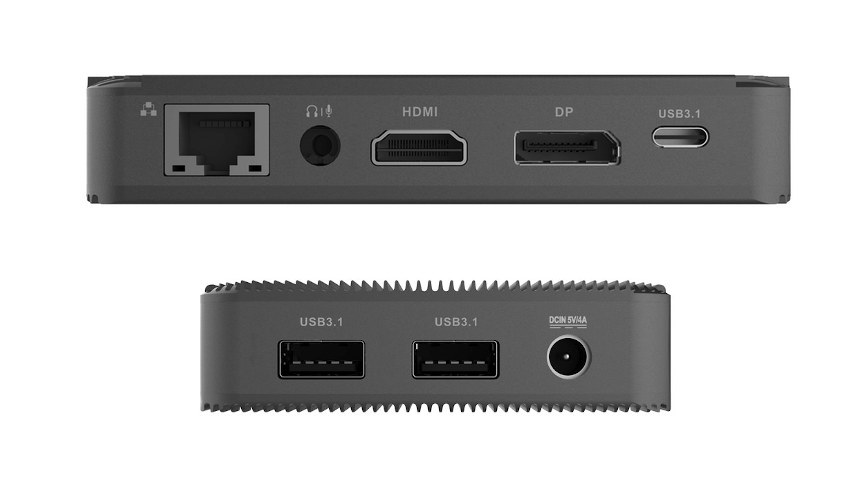

zbox pi336 pico portsThe mini comes with Windows 11 Pro pre-installed, and we’re told Windows 11 Pro N in Europe… What is that? Microsoft says that “Windows 10 pro N is just Windows 10 Pro without Windows Media Player and related technologies pre-installed including Music, Video, Voice Recorder, and Skype”. So I’d assume it is to comply with European antitrust regulations.

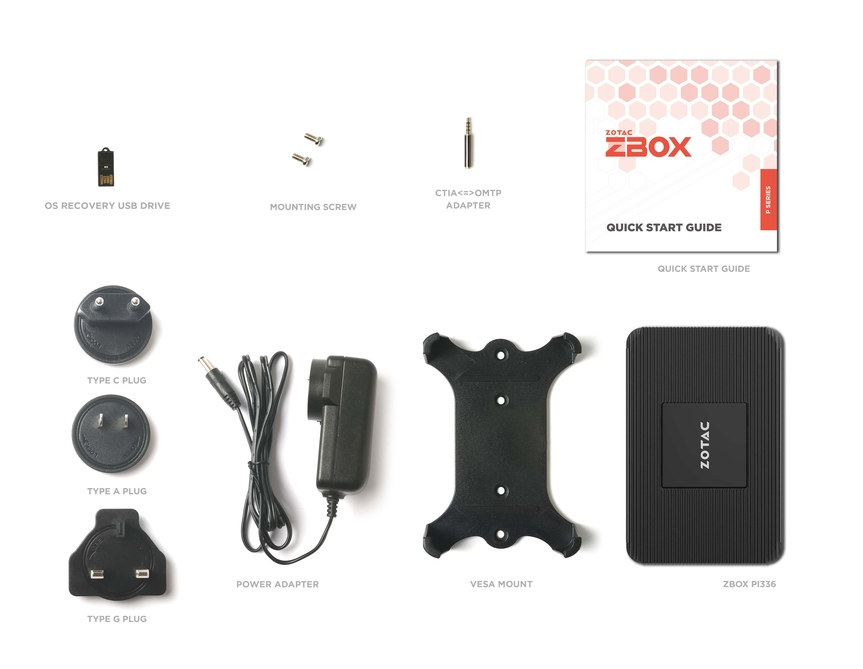

The mini PC ships with a universal power adapter with multiple plugs, a mounting bracket with screws, a CTIA / OMTP adapter for the headphone jack, a warranty card, a Quick Install Guide, and a USB drive with O/S Recovery.

ZOTAC ZBOX PI336 PICO accessories

Netbookcheck.net very recently published a review about the mini PC translated from their German website that concluded it was “a weak office PC”, and I would certainly agree that it would be, except I’m not sure that’s the intended use case, as ZOTAC says the Elkhart Lake mini PC can be used as a media hub (HTPC), security device, or digital signage solution.

ZOTAC ZBOX PI336 PICO mini PC appears to have primarily launched in Europe as it was brought to our attention by AndroidPC.es pointing out it was selling on Amazon Spain for about 454 Euros, and we could also find it on other stores such as Mindfactory (Germany) for under 370 Euros. Additional information may also be found on the product page.
