Wi-SUN: An LPWAN standard for Smart Cities, Smart Agriculture, large scale IoT deployments

Wi-SUN is a standard (IEEE 802.15.4g) managed by the Wi-SUN Alliance and designed for Smart Cities, Smart Agriculture, and other large scale IoT deployments with a large number of devices thanks to the use of IPv6 mesh networking.

The organization was founded in 2011 to “support the worldwide development of Wireless Communications Networks for Utilities, Smart Cities and IoT”, but due to the niche nature of target applications, it does not get that much press coverage and was only recently brought to my attention.

Wi SUN network architecture

Wi-SUN stands for “Wireless Smart Utility Networks”or “Wireless Smart Ubiquitous Networks”, and the standard aims to connect streetlights, cameras, weather stations, smart metering, utility transmission systems, and others to enable data-sharing between city services to improve their efficiency, save costs, and offer improves services to citizens.

Wi-SUN FAN (Field Area Network) is the latest protocol managed by the Wi-SUN Alliance with over 95 million units shipped worldwide (as of 2019) and each mesh network can communicate with the IPv6 backbone (aka the cloud) through border routers.

Somehow, it’s close to impossible to find a clear spec sheet for the standard from the official website, but the organization provides a comparison against LoRaWAN and NB-IoT. Wi-SUN has a higher throughput than LoRaWAN and NB-IoT, is said to use less power when sleeping and listening, and its higher throughput means that the devices spend less time on the air than their rivals, and hence consume less power. We are told that LoRaWAN and NB-IoT are better suited to applications with infrequent communication requirements.

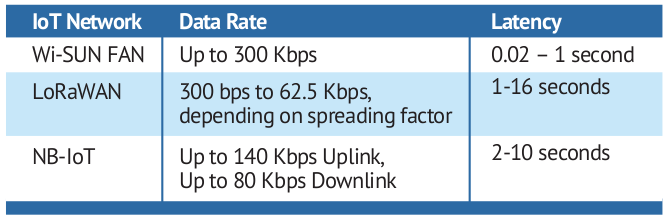

Wi-SUN vs LoRaWAN vs NB-IoT

More specifically, Wi-SUN FAN devices can be designed for frequent (from 10-second intervals) low-latency communication, drawing less than 2μA when resting, around 8mA when listening and less than 14mA at +10dBm when sending, while LoRaWAN devices are usually designed for infrequent communication (from 128-second intervals), drawing 2μA at rest, but 50% more than Wi-SUN FAN when listening (12mA). NB-IoT devices are also designed for infrequent communications, but with much higher power consumption as the peak current can go as high as 120-300mA and a sleep current of around 5μA. Wi-SUN also uses sub-GHz ISM frequencies like LoRa, as well as the 2.45 GHz ISM band.

Wi-SUN FAN is also more robust as a self-forming mesh network protocol, so adding new devices to a network is easy, and if a pathway fails, the network will automatically re-route to the gateways. The standard also integrates a public-key infrastructure (PKI) and IPv6 features for security, and while there are ways to do this in LoRaWAN and NB-IoT, we are told it is much easier in the standards-based Wi-SUN FAN ecosystem.

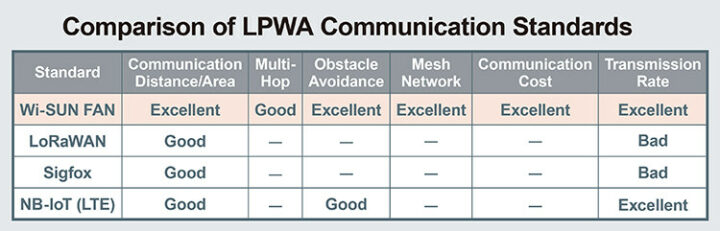

Vendors providing Wi-SUN solutions include Texas Instruments (See Gateworks GW16122 IoT mPCIe card with CC1352P microcontroller), STMicro, Renesas, Silicon Labs, Rohm, and others. For your entertainment, here’s how Rohm views Wi-SUN compared to LoRaWAN, Sigfox, and NB-IoT.

Wi-SUN LoRaWAN Sigfox NB IoT

I suppose this is in the context of Smart Cities only…

You’ll find more details on the Wi-SUN website and RFWireless World has some interesting information about the standard too.

Share this:
FacebookTwitterHacker NewsSlashdotRedditLinkedInPinterestFlipboardMeWeLineEmailShare

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard

5 Replies to “Wi-SUN: An LPWAN standard for Smart Cities, Smart Agriculture, large scale IoT deployments”

  1. Sooo.. what’s the difference between this and, say, Thread? This has nothing to do with nbiot or lora(wan), I guess it makes sense to force lock-in for an open platform (cc1352p) if you’re the one behind the protocol…

    1. They shortly address this point in their comparison:

      Unlike indoor personal area mesh networks (PAN) such as ZigBee and Thread, the Wi-SUN FAN was specifically designed for a much greater scale of endpoints that will hop over much greater distances outdoors.

      It’s designed for outdoor networks, and the point-to-point range is up to 4km.

    1. You’d need to contact the Wi-SUN Alliance for more details or some companies involved in the standard.
