Add 18650 batteries underneath Raspberry Pi with the Red Reactor board (Crowdfunding)

Pascal Herczog’s Red Reactor is a battery power supply project that adds two 18650 batteries to Raspberry Pi 4, Raspberry Pi 3, or Raspberry Pi Zero board using the pogo pins for connection.

The pogo pin method means the Red Reactor is attached underneath the board, as such does not prevent the user to add a HAT expansion board on top of the single board computer. There’s also a headerless version for custom setup or compatibility with boards such as Arduino, Banana Pi, Orange Pi, etc… where some soldering is required.

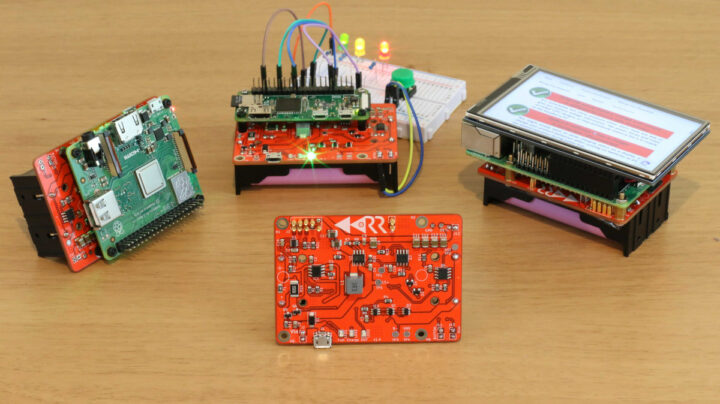

Red Reactor 18650 batteries Raspberry Pi

Red Reactor’s key features and specifications:

  • Battery holder for up to 2x flat-top 18650 LiPo batteries
  • Battery voltage and current monitoring over I2C (INA219) for software safe shutdown control, system reset, and your own functions
  • Safety
    • Battery protection
    • Resettable fuse protects against discharge between 2 cells
    • Over-Charge, Over-Discharge, and 6A Over-Current protection
  • Host connection
    • Pogo pins for Raspberry Pi 4/3/Zero
    • Headerless version where soldering is required
    • Tested at up to 4A
  • Misc
    • LED’s for charging, charging complete, output ON, error conditions
    • ON/OFF button connection
  • Power input
    • Soldered connection for high current usage
    • 5V micro USB supply voltage
    • Charging is limited to 1A to maximize battery life
    • Seamless transition when external power is removed
  • Power consumption – Less than 100uA in standby mode
  • Dimensions
    • 78.7 x 56 x 29mm (including stand-offs and battery holder)
    • 4x mounting holes designed to fit Raspberry Pi Model A+/B+/2B/3A+/3B+ and Pi 4 boards, as well as compatible Banana Pi / Orange Pi designs
    • 2x Mounting holes for Raspberry Pi Zero with 2 landing zones for additional supports

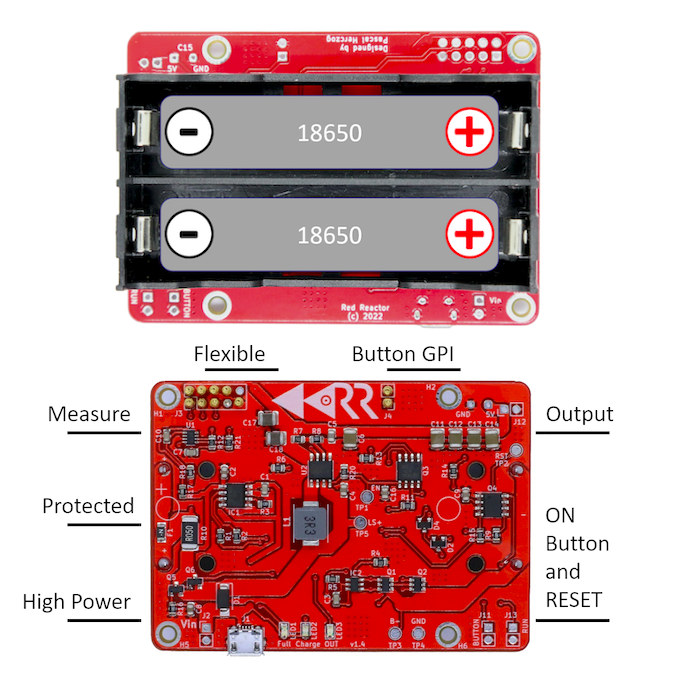

Red Reactor Battery Power SupplyYou’ll need to install the INA219 Python3 package for battery monitoring


Pascal provides Python3 samples for battery monitoring either in the command line or through a web interface, and there’s also an LXDE GUI battery widget that will show up battery information, such as battery level, in the taskbar.

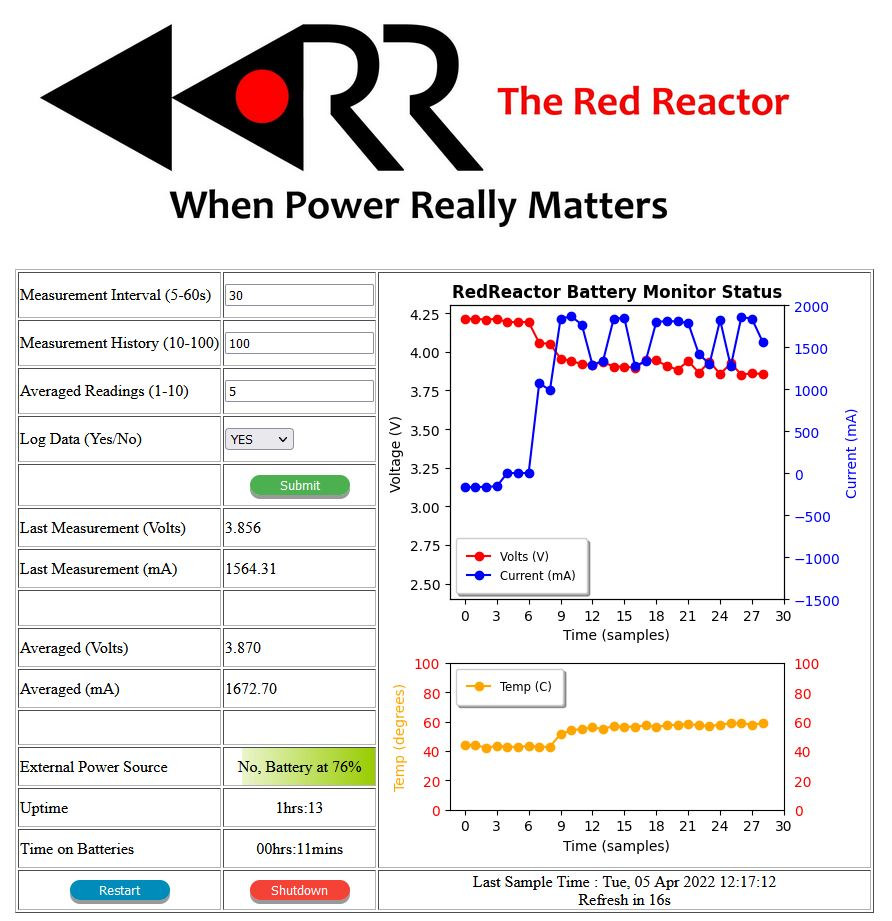

Red Reactor Web Interface
Red Reactor Web Monitor interface

The Red Reactor board has launched on Kickstarter with a ~$10,000 funding target. Rewards start at $37 for the headerless version, and a $40 pledge is asked for the version with pogo pins. Shipping adds 4 GBP to the UK, about $11.40 to most European countries, and around $13.70 to the rest of the world. Backers should expect their perks to ship in January 2023 if everything goes according to plans. You’ll also need your own Raspberry Pi board and 18650 batteries for your project.

Via Hackster.io

Share this:

Support CNX Software! Donate via PayPal or cryptocurrencies, become a Patron on Patreon, or buy review samples

ROCK Pi 4C Plus
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
3 Comments
oldest
newest
Ray Knight
Ray Knight
8 days ago

The PiSugar uses a Lithium Ion battery instead of the 18650 cells, but otherwise has similar features. PiSugar is now in its 3rd generation and as worked well for my usage.

WereCatf
WereCatf
8 days ago

18650 is the dimensions and form of the li-ion cell, li-ion is the chemistry; both this thing and the PiSugar use li-ion, but PiSugar uses a pouch-cell.

David
David
8 days ago

“The Red Reactor board has launched on Kickstarter with a ~$10,000 funding target. Rewards start at $37 for the headerless version, and a $40 pledge is asked for the version with pogo pins. Shipping adds 4 GBP to the UK, about $11.40 to most European countries, and around $13.70 to the rest of the world.” This looks like a copy of the “52Pi UPS V5 With RTC Battery Protection Management Module”. The 52Pi UPS boards have been around for awhile in ever evolving versions, it uses pogo pins too. The 52Pi is USD $29.09 each plus $1.35 shipping from China… Read more »
